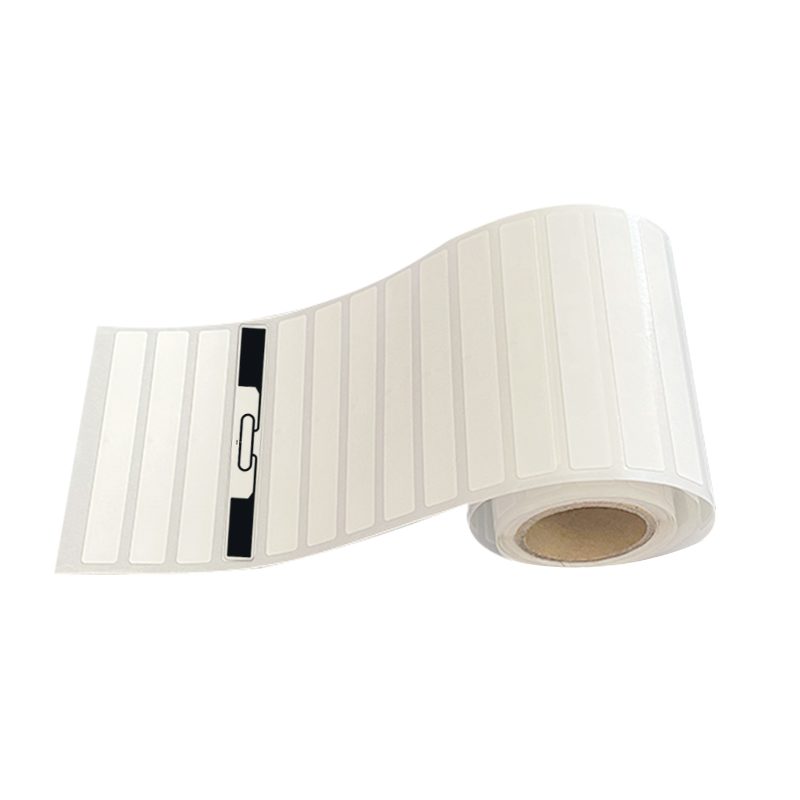

Document File Tracking UHF RFID label · 98×12 mm · NXP UCODE 9 (RT-S134)
RT-S134

Validate this construction on your material with samples before a volume order.

Document File Tracking UHF RFID label · 98×12 mm · NXP UCODE 9 (RT-S134)

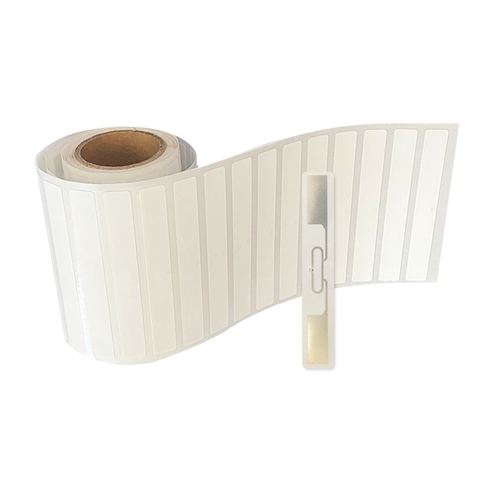

Narrow coated-paper label made for the spines of files and archive boxes: 98×12 mm overall with a 95×10 mm antenna, so whole shelves inventory themselves in a single reader pass. Powered by an NXP UCODE 9 chip (customizable) with a 96-bit EPC under ISO/IEC 18000-6C, it replaces manual counts with instant check-in, check-out and sorting.

At a glance

RFID Chip
NXP Ucode 9 (Can be customized)
Label Size
98mm*12mm
Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory
96 bits EPC, 0 bit User Memory
Face Material
Coated Paper
Product Model
RT-S134
Full specifications
Request a quote Request samples

Quote reply within 24 hours

Free samples — freight collect

Pricing matched to your project.

Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.

Supplied by Rivotag through partner production lines.

Technical information

Full specifications

Download specification summary

Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.

Overview

Product ModelRT-S134
RFID ChipNXP Ucode 9 (Can be customized)
Label Size98mm*12mm
Antenna Size95mm*10mm
Face MaterialCoated Paper
ProtocolISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory96 bits EPC, 0 bit User Memory

Customized services Details

Customizable Label SizeYes
PrintingThermal transfer printing，Silk Screen Printing，and other custom printing.
Data initializationEncoding

Storage Environment Requirements

Operating Temperature/Humidity-0～60℃ / 20%～80% RH
Storage Temperature/Humidity20～30℃ / 20%～60% RH
Shelf Life1 year in anti-static bag at 20～30℃ / 20% ～60% RH
ESD Voltage Immunity2 kV (HBM)
Bending Diameter＞ 50mm
Other application environment requirementsYour environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days.

Manual archive counts consume staff days and still miss things. Tag each folder with this 98×12 mm strip instead, and the count becomes a walk along the shelf: the reader logs every spine it passes, check-in and check-out register instantly, and automated sorting becomes possible because every file announces itself.

The label’s proportions are deliberate — a 95×10 mm antenna stretched along the spine keeps performance high even with folders packed tight. An NXP UCODE 9 chip (swappable on request) holds a 96-bit EPC over ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2, and the coated paper face takes reference numbers and barcodes by thermal transfer or silk screen. Operation is rated 0–60 °C at 20–80% RH.

Ordering and customization

Rivotag configures size, chip, face material, printing and EPC/TID encoding per archive system, with production on ISO 9001-audited partner lines. Quotes are returned within 24 hours; free samples ship freight collect in 3–5 working days, and orders complete 7–15 days after artwork approval.

Ordering this product

Sampling, quotations and supply through Rivotag.

How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
