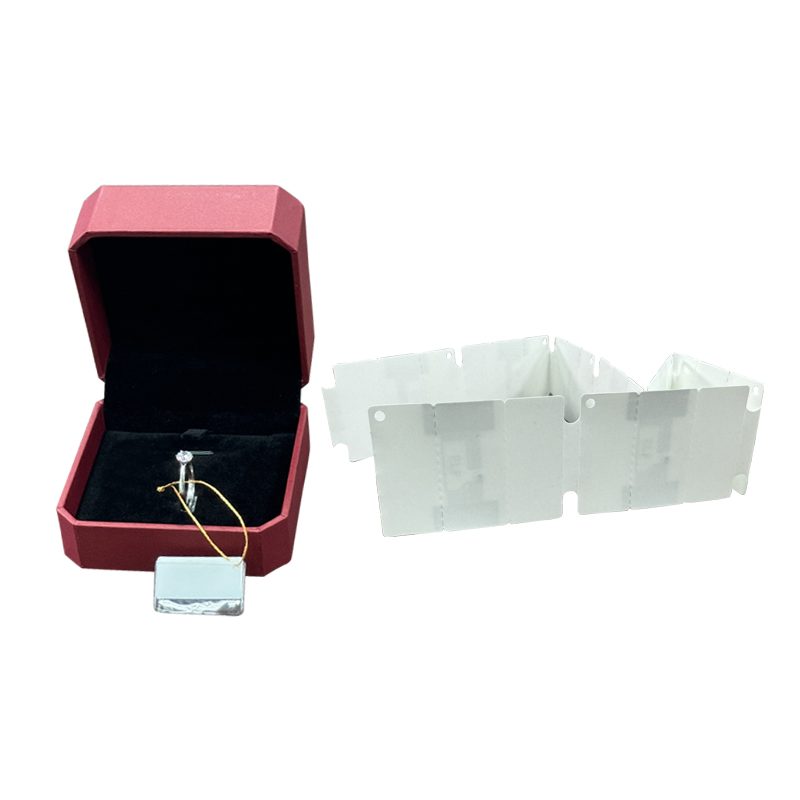

Jewelry Foldable UHF RFID tag · 43×28.5 mm · NXP UCODE 8 (RT-S137)
A fold-over UHF tag for jewelry, eyewear and luxury goods that prints at 43x28.5 mm and folds to a discreet 14x28.5 mm insert for card holders and string attachment. The matt white PP face wipes clean, and the NXP UCODE 8 chip carries a 128-bit EPC with 96-bit TID under EPCglobal Class 1 Gen 2.
At a glance
- RFID Chip
- NXP UCODE 8
- Label Size
- 43mm*28.5mm (Folded size: 14mm*28.5mm)
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96 bit TID, 128 bit EPC, 0 bit User Memory
- Face Material
- Matt white PP
- Product Model
- RT-S137
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S137 |
|---|---|
| RFID Chip | NXP UCODE 8 |
| Label Size | 43mm*28.5mm (Folded size: 14mm*28.5mm) |
| Antenna Size | 25mm*12mm |
| Face Material | Matt white PP |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 96 bit TID, 128 bit EPC, 0 bit User Memory |
| Applications | Jewelry management, glasses management, luxury goods management |
| Key Benefits | Can be printed more information, Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |

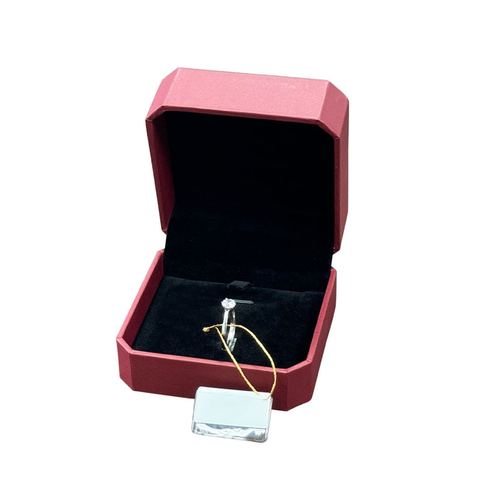

Jewelry retail poses an awkward trade-off: buyers want full product details printed on the tag, yet nobody wants a wide flap of paper hanging off a fine chain. This foldable UHF tag resolves it. Printed flat at 43x28.5 mm, it folds along scored lines down to 14x28.5 mm, slips into a small card holder and ties to the piece with a thin cord — generous print area, minimal visual footprint.
The face is matt white PP, so it shrugs off fingerprints and brief washing, while the embedded NXP UCODE 8 chip provides a 128-bit EPC bank and 96-bit TID over ISO/IEC 18000-6C. A 25x12 mm antenna supports rapid multi-tag stocktakes across trays of rings, eyewear or other luxury items, with operation rated from 0 to 60 °C.
Where it fits
Counter displays, valuation labels and boutique inventory audits where presentation matters as much as data. We supply free samples on a freight-collect basis, dispatched in 3-5 working days; mass production completes 7-15 days after artwork approval on ISO 9001 partner lines. Quotes are returned within 24 hours, and chip, size, face material, printing and EPC/TID encoding are all customizable.
