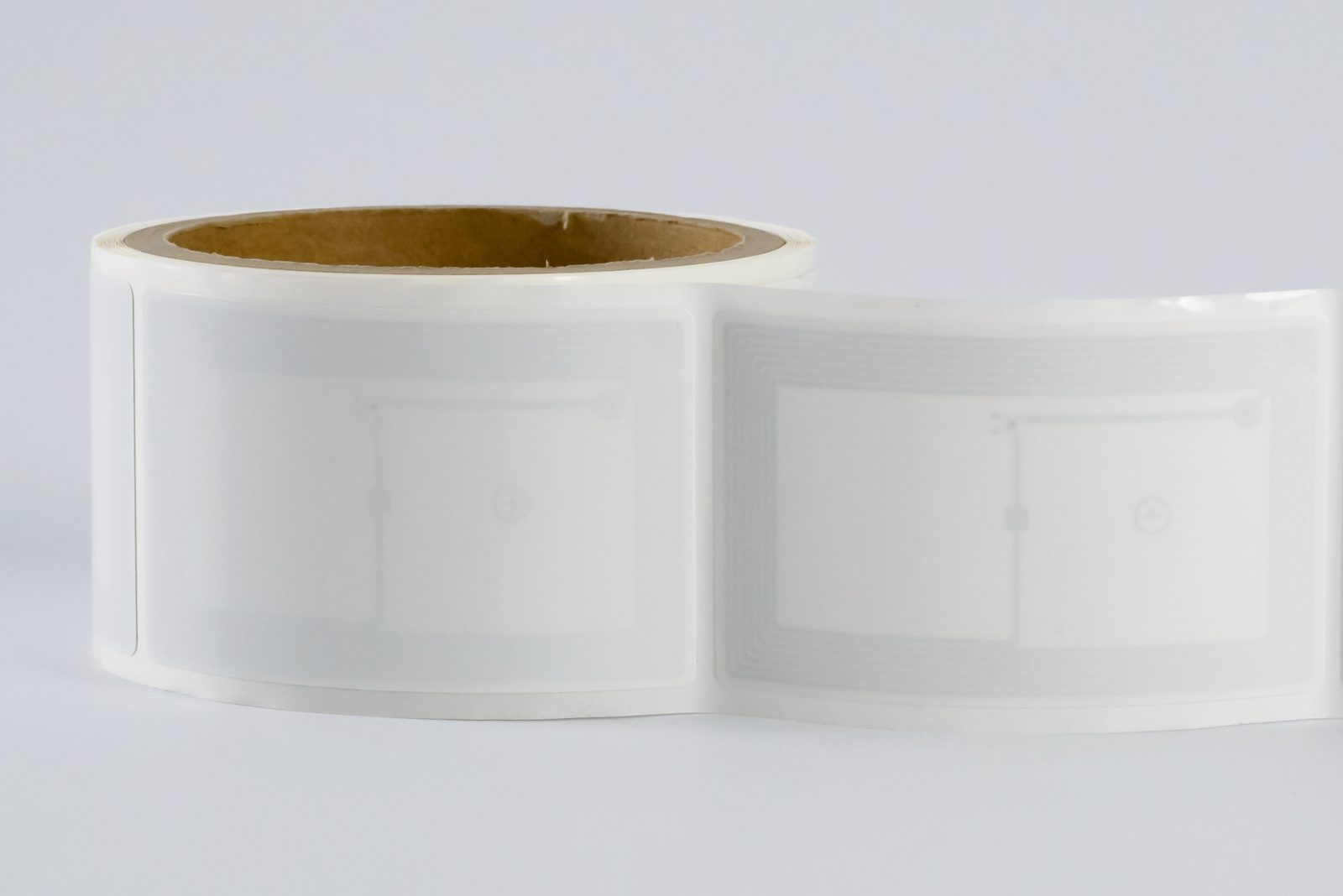

Library HF RFID label · 49×81 mm · ICODE SLIX (RT-S123)
An HF label in a 49×81 mm book-friendly format, running the NXP ICODE SLIX2 chip under ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1. Its 2560-bit memory is organized in 80 blocks for item data, and controlled short-range reading suits circulation desks and shelf audits, plus events management and anti-counterfeiting uses.
At a glance
- RFID Chip
- NXP ICODE SLIX2
- Label Size
- 49mm*81mm
- Protocol
- ISO/IEC 15693, ISO/IEC 18000-3 Mode 1
- Memory
- Total of 2560 bits, organized in 80 blocks of 4 bytes each
- Face Material
- Art-Paper, PET, PP synthetic paper & Other Customize Face Material
- Product Model
- RT-S123
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S123 |
|---|---|
| RFID Chip | NXP ICODE SLIX2 |
| Label Size | 49mm*81mm |
| Face Material | Art-Paper, PET, PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 15693, ISO/IEC 18000-3 Mode 1 |
| Memory | Total of 2560 bits, organized in 80 blocks of 4 bytes each |
| Applications | Events Management,Anti-counterfeiting,General purpose |
| Key Benefits | Short distance reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Events Management,Anti-counterfeiting,General purpose
- Key Benefits
- Short distance reading, Traceability
Libraries favor HF for a reason: reads happen at short, deliberate range, so a stack of returned books can be processed without accidentally scanning the shelf behind it. This 49×81 mm label brings that control to book spines and inside covers, with a face large enough for printed call numbers or branding.
An NXP ICODE SLIX2 chip operates under ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1, providing 2560 bits of memory arranged in 80 blocks — space for item identifiers and status data written directly to the tag. Facestock options include art paper, PET and PP synthetic paper, and the label runs from 0 to 60 °C. Beyond libraries, the same short-distance behavior serves events management and anti-counterfeiting checks.
Ordering and customization
We supply this label with size, chip, face material, printing and encoding configured per project, produced on ISO 9001 partner lines. Quotes are answered within 24 hours; free samples (freight collect) ship in 3–5 working days, and mass production runs 7–15 days after artwork approval.
