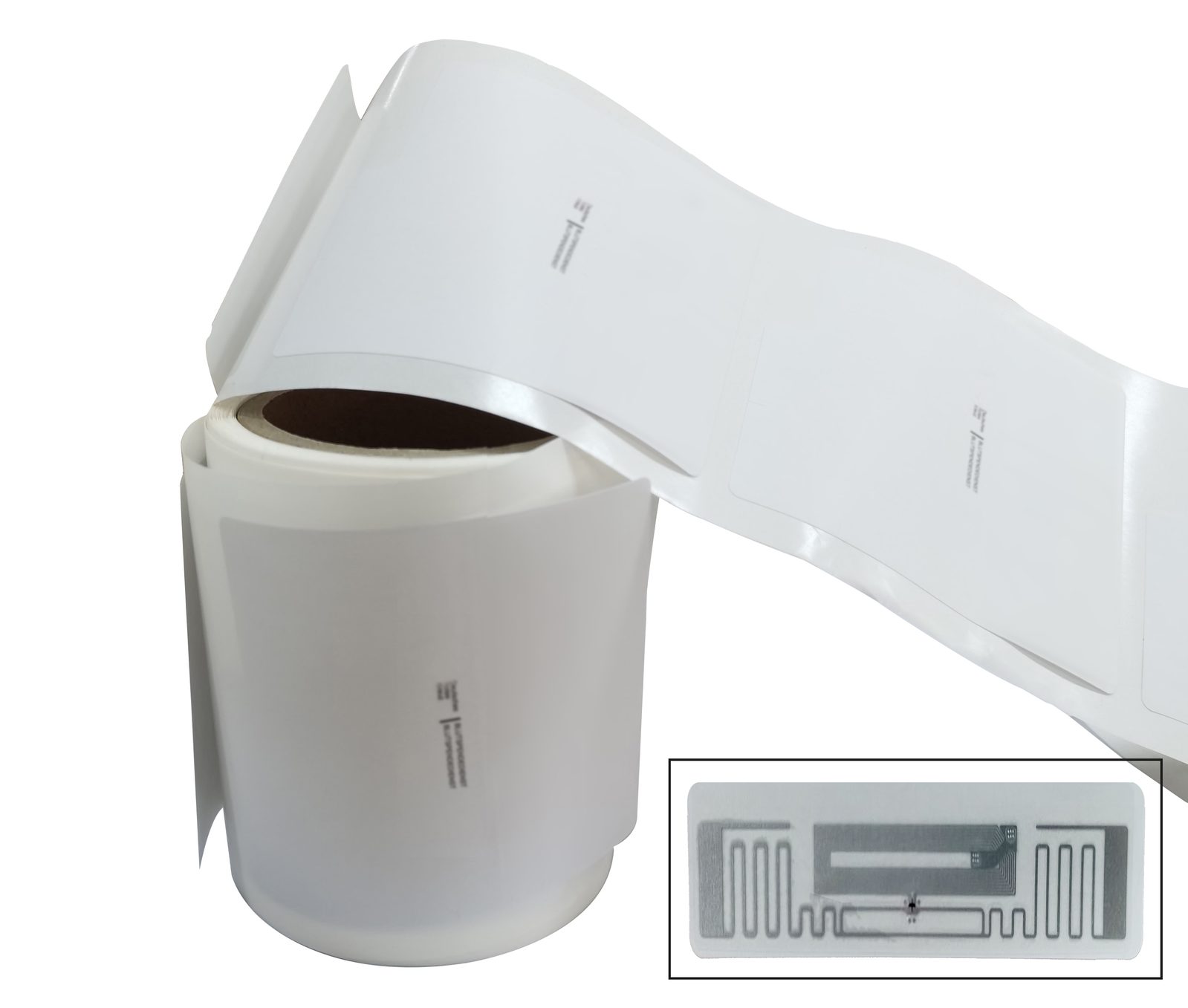

Dual-frequency RFID label · 105×115 mm (RT-D101)
One label, two radios: the Quanray Q-Star 6S chip speaks UHF (ISO/IEC 18000-6C, EPC Gen2 V2) for bulk inventory and HF/NFC (ISO/IEC 14443 Type A, NFC Forum Type 2) for tap-to-verify on any smartphone. The 105×115 mm label stores a 256-bit EPC, 96-bit TID and up to 2K bits of user memory for healthcare, anti-counterfeiting and access control.
At a glance
- RFID Chip
- Quanray Q-Star 6S
- Label Size
- 105mm*115mm
- Protocol
- ISO\IEC18000-6C, EPC Global GEN2 V2&ISO\IEC 14443 TYPEA , NFC FORUMTM TYPE 2
- Memory
- 96 bits TID, 256 bits EPC, Up to 2K bits User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-D101
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-D101 |
|---|---|
| RFID Chip | Quanray Q-Star 6S |
| Label Size | 105mm*115mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO\IEC18000-6C, EPC Global GEN2 V2&ISO\IEC 14443 TYPEA , NFC FORUMTM TYPE 2 |
| Memory | 96 bits TID, 256 bits EPC, Up to 2K bits User Memory |
| Applications | Healthcare&Medical, Anti-counterfeiting identification, Accese control |
| Key Benefits | Short-range identification and long-distance identification. It can be used for single-target identification (read without confusion), and also be applied to multiple targets fast reading. |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Healthcare&Medical, Anti-counterfeiting identification, Accese control
- Key Benefits
- Short-range identification and long-distance identification. It can be used for single-target identification (read without confusion), and also be applied to multiple targets fast reading.
Warehouse teams want UHF for speed; consumers carry NFC in their pockets. Normally that means two tags — this label needs one. A single Quanray Q-Star 6S chip serves both interfaces: long-range, multi-tag UHF reads under ISO/IEC 18000-6C / EPC Gen2 V2 for turnover, loss prevention and visual management, plus short-range HF under ISO/IEC 14443 Type A and NFC Forum Type 2 so a shopper’s phone can verify authenticity with a tap.
Memory is sized for that dual life: a 256-bit EPC, 96-bit TID and up to 2K bits of user space for product records. The 105×115 mm format ships on art paper, PET or PP synthetic faces and serves healthcare, anti-counterfeiting and access control programs, with single-target reads that never confuse neighbors; operation is rated 0–60 °C.
Ordering and customization
We supply it through ISO 9001 partner lines with size, chip, facestock, printing and EPC/TID encoding tailored per project. Quotes return inside 24 hours; free samples (freight collect) dispatch in 3–5 working days, with production 7–15 days after artwork approval.
