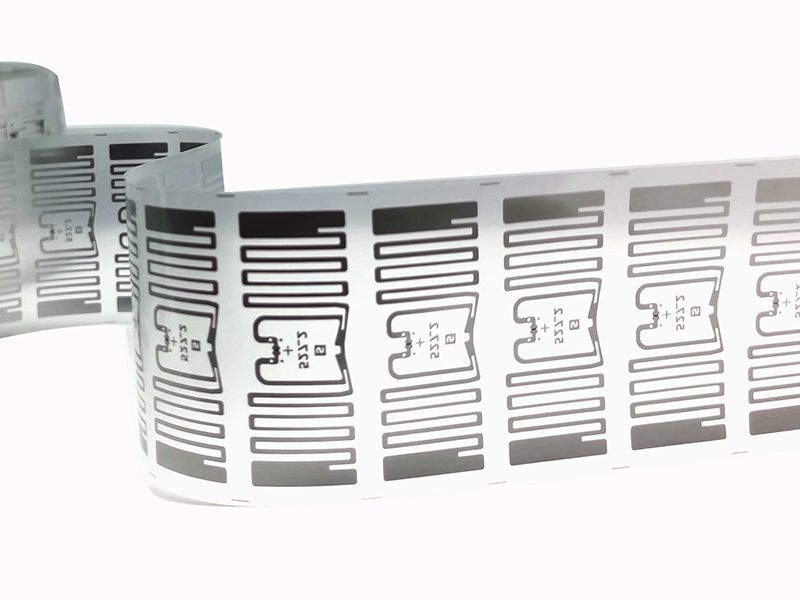

Library UHF RFID tag · 42×16 mm (RT-S103)
Library UHF RFID tag, 42×16 mm format. Confirm the selected chip, encoding and application requirements against the detailed specification before ordering. Chip availability and memory depend on the approved configuration.
At a glance
- RFID Chip
- NXP Ucode8
- Operating Frequency
- 860~960MHz
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96 bit TID, 128 bit EPC, 0 bit User Memory
- Product Model
- RT-S103
- Antenna Size
- 42*16mm
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S103 |
|---|---|
| RFID Chip | NXP Ucode8 |
| Antenna Size | 42*16mm |
| Application | Applied to the production of Walmart RFID project. |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency | 860~960MHz |
| Memory | 96 bit TID, 128 bit EPC, 0 bit User Memory |
| Application overview | Used for making regular small size RFID labels |
| Range of Application | Intelligent Sales , Logistics Management, Clothing management. |
Product Details
| Product Type | RFID Dry Inlay |
|---|---|
| Accepted By Walmart | YES |
| Chip Material | Silicon Wafer |
| Inlay Base Material | AL+PET |
| Antenna Width | 16mm |
| Antenna Length | 42mm |
| Inlay Pitch | 20mm |
| Paper Width | 50.8mm |
| Above Tolerance | ± 0.5 mm |
| MOQ | 10,000 Pcs |
| Samples | 15 Pcs for free samples |
Label Customization Details
| Customizable Label Size | Yes |
|---|---|
| Customizable Label Face Material | Art Paper, PP, PET, PP Synthetic Paper & Other Customize Face Material. |
| Printing | UV printing，Thermal paper printing，Other custom printing. |
| Refer To Quantity For Per Roll | 3,000 pcs/Roll |
| Refer To Quantity For Per carton | 72,000 pcs/Carton |
| Refer To carton size | 445*445*345mm |
| Unwinding Direction | Label face out |
| Core Inner Diameter | 3 inches |
| Reel Outer diameter | ≤ 203mm |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Dear customers, our product team can design unique products for you according to your special application environment. Please tell your special needs to your customer service in advance, and we will complete the design of customized products for you within two working days. |
Custom Service
| Custom Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 45*18mm, 45*19mm and more. |

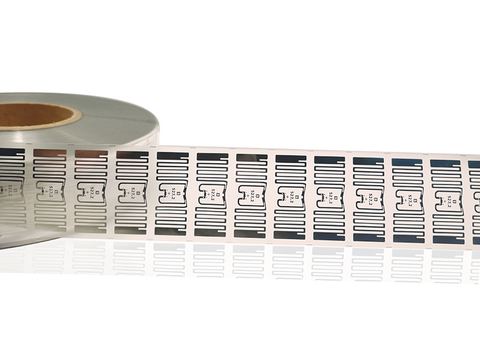

Converters running narrow-web lines ask us for one thing above all: an inlay that behaves predictably at small sizes. This 42×16 mm dry inlay is the answer Rivotag keeps on its sourcing list — an NXP Ucode8 chip bonded to an AL+PET antenna, supplied on 50.8 mm paper at a 20 mm pitch with ±0.5 mm tolerance for accurate label conversion.
Compliant with ISO/IEC 18000-6C (EPC Gen 2) and reading across the full 860–960 MHz band, it stores a 128-bit EPC alongside a 96-bit TID, and the design is accepted for Walmart tagging programs. Typical destinations include library media, clothing tickets and small logistics labels, with finished faces available in art paper, PP or PET and UV or thermal-paper printing.
Ordering and customization
Tell us your chip, size, face material, printing and EPC/TID encoding requirements and we reply with a quote within 24 hours. Free samples travel freight collect and leave in 3–5 working days; production runs on ISO 9001 partner lines and completes in 7–15 days once artwork is approved.
