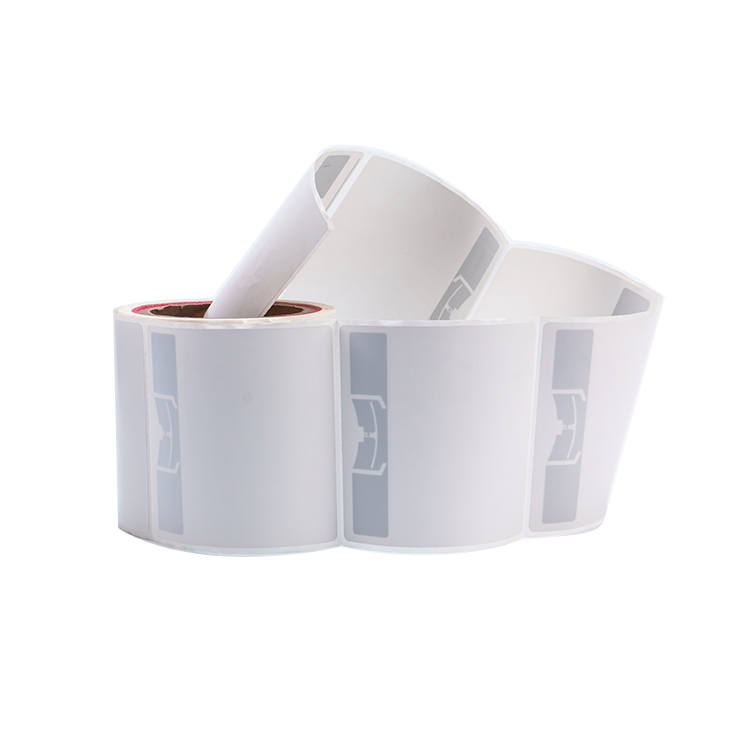

Logistics UHF RFID label · 100×100 mm · Alien Higgs 9 (RT-S138)
A 100x100 mm self-adhesive UHF label sized for carton faces, pallet placards and logistics paperwork. The Alien Higgs 9 chip pairs a 96-bit EPC with an unusually large 688-bit user bank for routing or batch data, and the 93x19 mm antenna reads reliably in dock-door and conveyor environments. Art paper, PET or PP synthetic faces available.
At a glance
- RFID Chip
- Alien H9
- Label Size
- 100mm*100mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 96 bits EPC, 688 bits User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-S138
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S138 |
|---|---|
| RFID Chip | Alien H9 |
| Label Size | 100mm*100mm |
| Antenna Size | 93mm*19mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 96 bits EPC, 688 bits User Memory |
| Applications | Supply Chain & Logistics, General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Supply Chain & Logistics, General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Pallets don’t wait, and neither should your scanners. Sized at a full 100x100 mm, this UHF logistics label gives forklift-mounted and dock-door readers a generous target with a 93x19 mm antenna behind it, so cartons register on the move rather than at a standstill. Routing marks, compliance text and barcodes all fit comfortably on the printable face.
The Alien Higgs 9 chip is the quiet advantage here: alongside its 96-bit EPC and 48-bit TID it opens up 688 bits of user memory — enough to write batch numbers, handling codes or destination data straight onto the tag instead of relying on a database lookup. Communication follows ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2), with operation from 0 to 60 °C. Face stock can be art paper for thermal-transfer printing, or PET and PP synthetic for rougher journeys.
Ordering & customization
Rivotag sources this label from ISO 9001 partner lines and answers every quote request within 24 hours. Free samples go out freight collect in 3-5 working days; production lots follow 7-15 days after artwork approval. Chip, size, face material, printing and EPC/TID encoding can all be adjusted per order.
