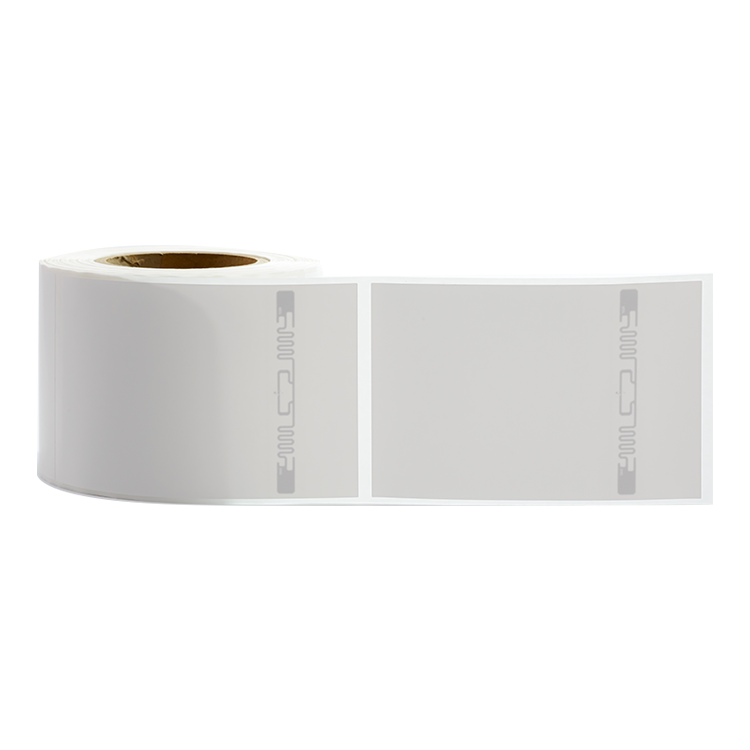

Logistics UHF RFID label · 100×150 mm · Alien Higgs 9 (RT-L129)
Sized 100x150 mm for shipment paperwork, this UHF label suits logistics routes where tags face weather, abrasion and tamper attempts. PP synthetic paper keeps the face intact and legible, while the Alien Higgs 9 chip supplies 96-bit EPC, 48-bit TID and 688 bits of user memory under EPCglobal Class 1 Gen 2.
At a glance
- RFID Chip
- Alien Higgs 9
- Label Size
- 100mm*150mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 96 bits EPC, 688 bits User Memory
- Face Material
- PP Synthetic paper
- Product Model
- RT-L129
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L129 |
|---|---|
| RFID Chip | Alien Higgs 9 |
| Label Size | 100mm*150mm |
| Antenna Size | 94.8mm*8.15mm |
| Face Material | PP Synthetic paper |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 96 bits EPC, 688 bits User Memory |
| Applications | Logistics, Requirements for waterproofing or labels that cannot be torn off |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Logistics, Requirements for waterproofing or labels that cannot be torn off
- Key Benefits
- Fast reading,Multi-reading, Traceability
Between the packing bench and the final delivery scan, a carton label meets forklifts, weather and the occasional deliberate tug. This 100x150 mm UHF logistics label is stocked for that reality: its PP synthetic paper face is waterproof and near impossible to tear away cleanly, so printed data and RFID function survive together.
An Alien Higgs 9 chip handles the radio side through a 94.8x8.15 mm antenna, conforming to ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) so gate readers capture stacks of tagged cartons at once. Memory covers a 96-bit EPC, 48-bit TID and a substantial 688-bit user area for waybill numbers or handling instructions. Operating temperature runs 0 to 60 °C.
Where it fits
Distribution centres, cross-dock operations and any consignment where a lost label means a lost parcel. Rivotag supplies free samples freight collect within 3-5 working days, completes bulk orders 7-15 days after artwork approval on ISO 9001 partner lines, replies to quotes within 24 hours, and tailors chip, size, face material, printing and EPC/TID encoding to order.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
