Medicine Bottle UHF RFID label · 40×20 mm (RT-S131)
RT-S131

Validate this construction on your material with samples before a volume order.

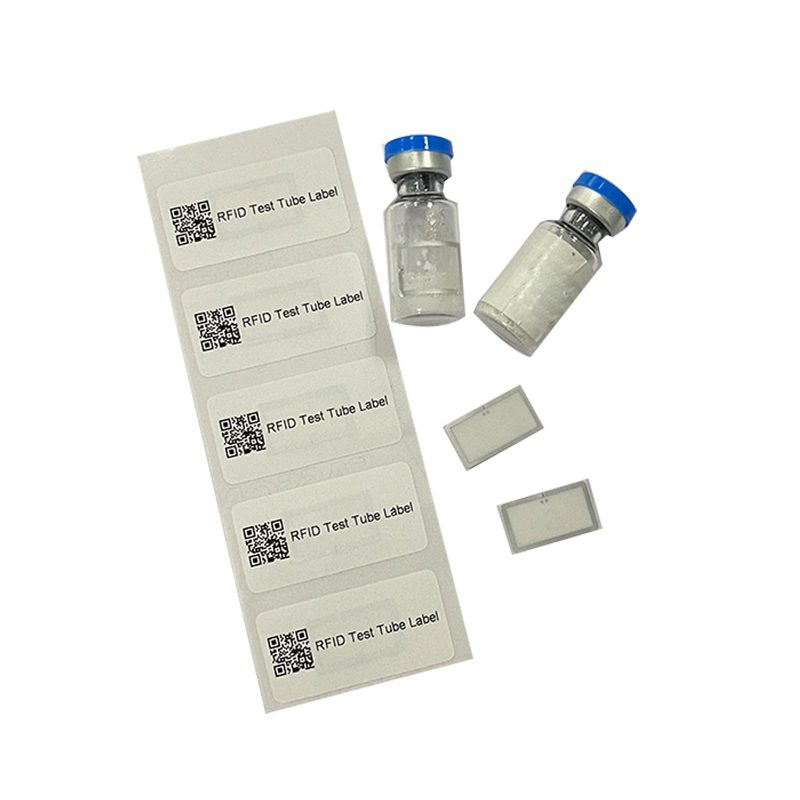

Medicine Bottle UHF RFID label · 40×20 mm (RT-S131)

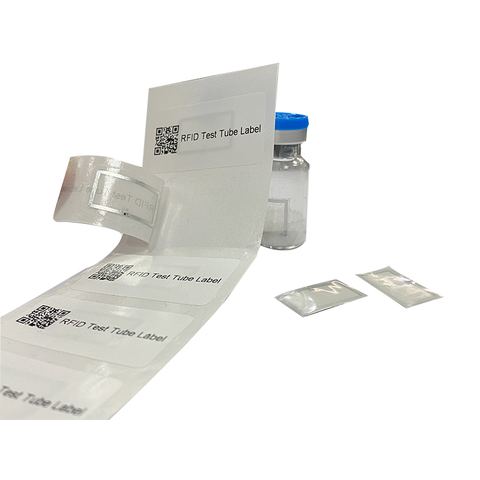

Compact pharmaceutical label sized 40×20 mm with a 19.3×11 mm antenna tuned for small glass medicine bottles, performing best on vials of dry powder. High-adhesion glue grips curved glass, the coated paper face takes thermal transfer print, and the FM13UF0051E chip (customizable) offers a 128-bit EPC plus 32-bit user memory over EPCglobal Class 1 Gen 2.

At a glance

RFID Chip
FM13UF0051E (Can be customized)
Label Size
40mm*20mm
Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory
128 bits EPC, 32 bit User Memory
Face Material
Coated Paper
Product Model
RT-S131
Full specifications
Request a quote Request samples

Quote reply within 24 hours

Free samples — freight collect

Pricing matched to your project.

Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.

Supplied by Rivotag through partner production lines.

Technical information

Full specifications

Download specification summary

Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.

Overview

Product ModelRT-S131
RFID ChipFM13UF0051E (Can be customized)
Label Size40mm*20mm
Antenna Size19.3mm*11mm
Face MaterialCoated Paper
ProtocolISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory128 bits EPC, 32 bit User Memory

Customized services Details

Customizable Label SizeYes
PrintingThermal transfer printing，Silk Screen Printing，and other custom printing.
Data initializationEncoding

Storage Environment Requirements

Operating Temperature/Humidity-0～60℃ / 20%～80% RH
Storage Temperature/Humidity20～30℃ / 20%～60% RH
Shelf Life1 year in anti-static bag at 20～30℃ / 20% ～60% RH
ESD Voltage Immunity2 kV (HBM)
Bending Diameter＞ 50mm
Other application environment requirementsYour environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days.

Glass vials are small, curved and slippery — three reasons ordinary labels struggle in pharmaceutical tracking. This 40×20 mm label was drawn up around those constraints: a compact 19.3×11 mm antenna tuned for glass, high-adhesion glue that holds the curve, and its best performance on bottles of dry powder, where read reliability peaks.

Each vial then carries a scannable identity from filling line to dispensary. The FM13UF0051E chip stores a 128-bit EPC and 32 bits of user memory over ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2, while the coated paper face accepts lot numbers and barcodes by thermal transfer or silk screen; rated operation is 0–60 °C at 20–80% RH.

Ordering and customization

We supply the label from ISO 9001 partner lines with chip, size, face material, printing and EPC/TID encoding adapted to your pharmaceutical workflow. Quotes come back within 24 hours, free samples ship freight collect in 3–5 working days, and production concludes 7–15 days after artwork approval.

Ordering this product

Sampling, quotations and supply through Rivotag.

How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
