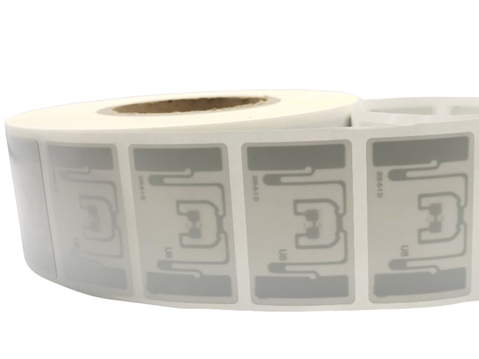

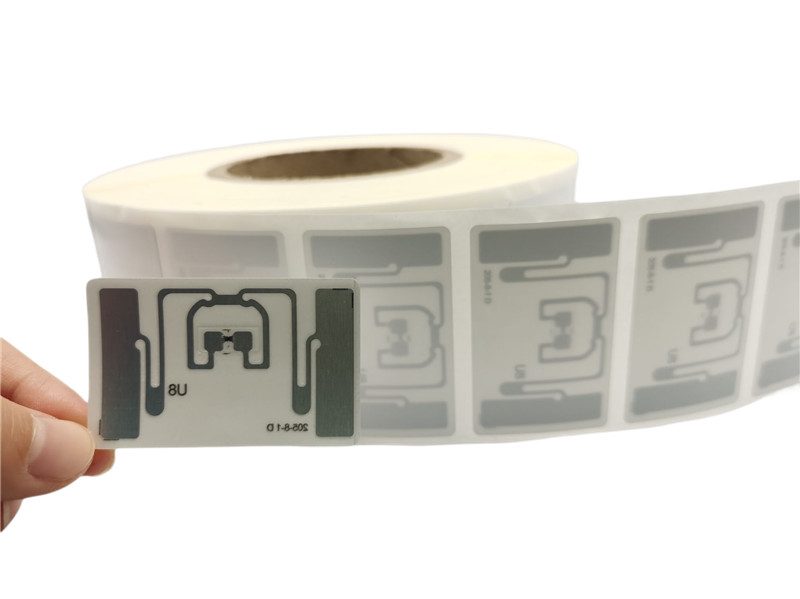

Printable UHF RFID sticker · 54×34 mm (RT-L104)
Printable UHF RFID sticker, 54×34 mm format. Confirm the selected chip, encoding and application requirements against the detailed specification before ordering. Chip availability and memory depend on the approved configuration.
At a glance
- RFID Chip
- NXP Ucode8
- Label Size
- 54mm*34mm
- Operating Frequency
- 860~960MHz
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96 bit TID, 128 bit EPC, 0 bit User Memory
- Face Material
- Art Paper / PET / PP synthetic paper (Other Custom Materials)
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L104 |
|---|---|
| RFID Chip | NXP Ucode8 |
| Label Size | 54mm*34mm |
| Antenna Size | 50mm*30mm |
| Application | RFID stickers available for Walmart program. |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency | 860~960MHz |
| Memory | 96 bit TID, 128 bit EPC, 0 bit User Memory |
| Application overview | Common label used in retail and logistics management. |
| Range of Application | Intelligent Sales, Asset Management, Logistics Management, Anti-counterfeiting & Traceability |
Product Details
| Product Type | RFID Label / Sticker |
|---|---|
| Accepted By Walmart | YES |
| Chip Material | Silicon Wafer |
| Face Material | Art Paper / PET / PP synthetic paper (Other Custom Materials) |
| Release Liner | Glassine Paper |
| UHF Antenna | AL+PET |
| Antenna Width | 50mm |
| Antenna Length | 30mm |
| Label Width | 54mm |
| Label Length | 34mm |
| Label Pitch | 38.1mm |
| Liner Width | 60mm |
| Above Tolerance | ± 1.00 mm |
| MOQ | 10,000 Pcs |
| Samples | 10 Pcs for free samples |
| Printing | Thermal transfer printing，Thermal paper printing，Other custom printing. |
Packing Details
| Packing specification | Esd bag vacuum packing (Other Custom Packing specification) |
|---|---|
| Quantity For Per Roll | 2500 pcs/Roll |
| Quantity For Per carton | 40,000 pcs/Carton |
| carton size | 445*445*345mm |
| Unwinding Direction | Label face out |
| Core Inner Diameter | 3 inches |
| Reel Outer diameter | ≤ 203mm |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Dear customers, our product team can design unique products for you according to your special application environment. Please tell your special needs to your customer service in advance, and we will complete the design of customized products for you within two working days. |
Custom Service
| Custom Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 53*33mm, 54*34mm, 60*40mm, 57*38mm and more. |
Some tagging projects start with a deadline and a warehouse full of untagged stock. For those, Rivotag keeps this 54×34 mm adhesive UHF label in its core lineup: peel, stick and read, with a 50×30 mm AL+PET antenna and NXP Ucode8 silicon doing the work across 860–960 MHz.
The label meets ISO/IEC 18000-6C (EPC Gen 2) and carries 128-bit EPC plus 96-bit TID memory, a combination Walmart accepts for its tagging program. Faces come in art paper, PET or PP synthetic paper on a glassine liner, ready for thermal-transfer or thermal-paper printing, and each 3-inch core holds 2,500 labels wound face out. Rated use runs 0–60 °C.
Ordering and customization
Chip, size, face material, printing and EPC/TID encoding are all open to change — 53×33, 60×40 and 57×38 mm formats sit on the standard list. Expect a quote within 24 hours, free samples freight collect in 3–5 working days, and mass production from ISO 9001 partner lines 7–15 days after artwork approval.
