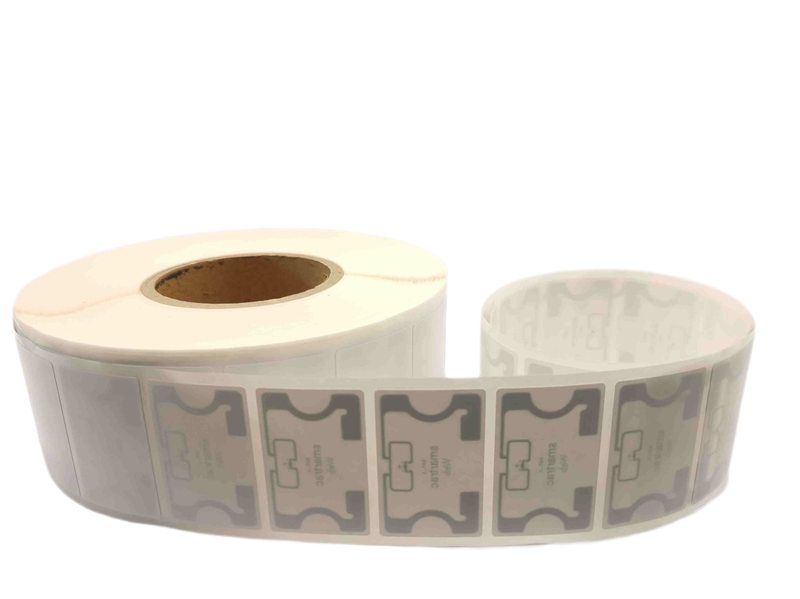

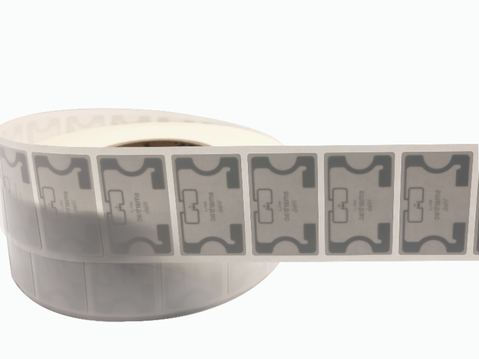

Retail UHF RFID label · 53×33 mm (RT-S106)
Retail UHF RFID label, 53×33 mm format. Confirm the selected chip, encoding and application requirements against the detailed specification before ordering. Chip availability and memory depend on the approved configuration.
At a glance
- RFID Chip
- NXP Ucode8
- Label Size
- 53mm*33mm
- Operating Frequency
- 860~960MHz
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96 bit TID, 128 bit EPC, 0 bit User Memory
- Face Material
- Art Paper / PET/ Foam (Other Custom Materials)
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S106 |
|---|---|
| RFID Chip | NXP Ucode8 |
| Label Size | 53mm*33mm |
| Antenna Size | 50mm*30mm |
| Application | RFID stickers available for Walmart program. |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency | 860~960MHz |
| Memory | 96 bit TID, 128 bit EPC, 0 bit User Memory |
| Application overview | Universal 128bit RFID label. Can be attached to packaging boxes and hangtags. |
| Range of Application | Intelligent Sales, Logistics Management, Anti-counterfeiting & Traceability |
Product Details
| Product Type | RFID Label / Sticker |
|---|---|
| Accepted By Walmart | YES |
| Chip Material | Silicon Wafer |
| Face Material | Art Paper / PET/ Foam (Other Custom Materials) |
| Release Liner | Glassine Paper |
| UHF Antenna | AL+PET |
| Antenna Width | 30mm |
| Antenna Length | 50mm |
| Label Width | 33mm |
| Label Length | 53mm |
| Label Pitch | 36mm |
| Liner Width | 60mm |
| Above Tolerance | ± 1.00 mm |
| MOQ | 50,000 Pcs |
| Samples | 20 Pcs of free samples |
| Printing | Thermal transfer printing，Silk Screen Printing，Other custom printing. |
Packing Details
| Packing specification | Esd bag vacuum packing (Other Custom Packing specification) |
|---|---|
| Quantity For Per Roll | 2000 pcs/Roll |
| Quantity For Per carton | 40,000 pcs/Roll |
| carton size | 445*445*345mm |
| Unwinding Direction | Label face out |
| Core Inner Diameter | 3 inches |
| Reel Outer diameter | ≤ 203mm |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Dear customers, if you have special application environment requirements, please inform your service. We will design customized labels for you according to your actual environment, so as to extend the service life of products as much as possible. Please contact our product manager anytime, we will serve you wholeheartedly. |
Custom Service
| Custom Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 53*33mm, 54*34mm, 60*40mm, 57*38mm and more. |
Need one label spec that covers cartons, hangtags and outer packaging without re-engineering? That is the role this 53×33 mm sticker plays in the Rivotag range. A 50×30 mm AL+PET antenna paired with an NXP Ucode8 chip gives it broadband 860–960 MHz coverage under ISO/IEC 18000-6C (EPC Gen 2), carrying 128 bits of EPC plus a 96-bit TID for traceability and anti-counterfeit work.
Choose an art paper, PET or foam face over the glassine liner to match the surface; thermal-transfer and silk-screen printing are both supported. The construction holds Walmart acceptance, ships 2,000 labels per roll wound face out on a 3-inch core, and tolerates operating conditions from 0 to 60 °C with a bending diameter above 50 mm.
Where it fits
Distribution packaging, e-commerce cartons, branded hangtags and promotional goods. Rivotag returns quotes within 24 hours, sends free samples freight collect in 3–5 working days, and has volume orders produced on ISO 9001 partner lines — mass production takes 7–15 days after artwork approval, with chip, size, face material, printing and EPC/TID encoding all customizable.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
