Retail UHF RFID label · 60×30 mm · Qstar-7U (RT-S108)
RT-S108

Validate this construction on your material with samples before a volume order.

Retail UHF RFID label · 60×30 mm · Qstar-7U (RT-S108)

A flag-style UHF label for bottled liquids and metal-heavy retail shelves: localized adhesive grips the bottle while the 41×18 mm antenna stays suspended clear of the contents, so signals never drown. The Qstar-7U chip offers 128-bit EPC plus 128-bit user memory under EPC Gen 2, and handheld readers reach it from 5–6 meters.

At a glance

RFID Chip
Qstar-7U (Can be customized)
Label Size
60mm*30mm
Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory
128 bits EPC, 128 bits User Memory
Face Material
Thermal Paper(Can be customized)
Product Model
RT-S108
Full specifications
Request a quote Request samples

Quote reply within 24 hours

Free samples — freight collect

Pricing matched to your project.

Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.

Supplied by Rivotag through partner production lines.

Technical information

Full specifications

Download specification summary

Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.

Overview

Product ModelRT-S108
RFID ChipQstar-7U (Can be customized)
Label Size60mm*30mm
Antenna Size41mm*18mm
Face MaterialThermal Paper(Can be customized)
ProtocolISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory128 bits EPC, 128 bits User Memory

Customized services Details

Customizable Label SizeYes
PrintingThermal transfer printing，Silk Screen Printing，and other custom printing.
Data initializationEncoding

Storage Environment Requirements

Operating Temperature/Humidity-0～60℃ / 20%～80% RH
Storage Temperature/Humidity20～30℃ / 20%～60% RH
Shelf Life1 year in anti-static bag at 20～30℃ / 20% ～60% RH
ESD Voltage Immunity2 kV (HBM)
Bending Diameter＞ 50mm
Other application environment requirementsYour environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days.

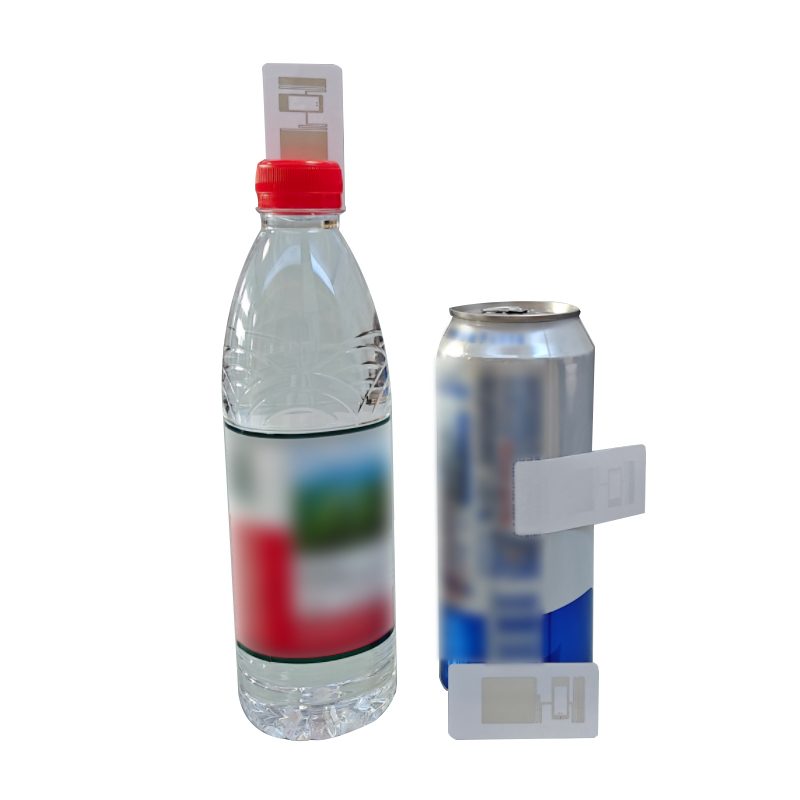

Liquids and metal are the two classic RFID spoilers — they detune antennas and swallow signals. This 60×30 mm flag label sidesteps both. Adhesive is applied only at one end, so the tag anchors to a bottle or canister while the working antenna section stands away from the surface, reading cleanly where a flat label would go quiet.

Rivotag supplies it with a Qstar-7U chip (alternatives can be arranged) on a 41×18 mm antenna, compliant with ISO/IEC 18000-6C (EPC Gen 2). Memory is generous for retail work: a 128-bit EPC plus 128 bits of user space. The thermal-paper face suits fast on-site printing and coding in supermarkets, batch reads succeed at high rates, and handheld readers pick tags up from five to six meters.

Ordering and customization

Label size, chip, face material, printing method — thermal transfer or silk screen — and EPC/TID encoding can all be tailored. Quotes come back within 24 hours, free samples ship freight collect within 3–5 working days, and ISO 9001 partner lines deliver mass production 7–15 days after artwork approval.

Ordering this product

Sampling, quotations and supply through Rivotag.

How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
