Validate this construction on your material with samples before a volume order.

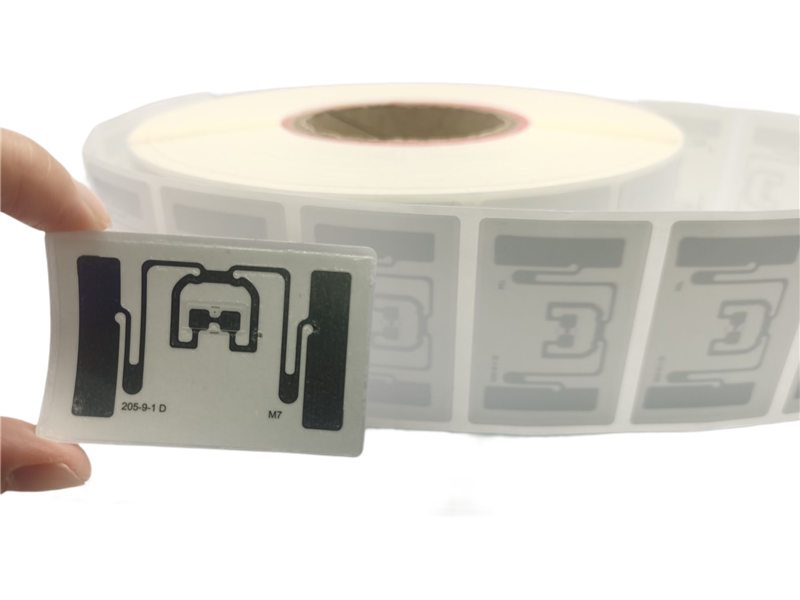

Retail UHF RFID label · 60×40 mm · Impinj M730 (RT-S101)
General-purpose retail label pairing a 60×40 mm printable face with a 50×30 mm antenna and Impinj M730 chip. Suited to apparel, medical and luxury goods tagging as well as Walmart program rollouts, it operates at 860–960 MHz under EPC Gen 2 and stores a 128-bit EPC with 96-bit TID.
At a glance
- RFID Chip
- Impinj M730
- Label Size
- 60*40mm
- Operating Frequency
- 860~960MHz
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96 bit TID, 128 bit EPC, 0 bit User Memory
- Face Material
- Art Paper / PET / PP synthetic paper (Other Custom Materials)
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S101 |
|---|---|
| RFID Chip | Impinj M730 |
| Label Size | 60*40mm |
| Antenna Size | 50*30mm |
| Application | Walmart Project，Medical management label，Luxury Management Labels |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency | 860~960MHz |
| Memory | 96 bit TID, 128 bit EPC, 0 bit User Memory |
| Application overview | Walmart compay general RFID label. |
| Range of Application | Intelligent Sales, Personnel identity Management, Logistics Management, Food traceability, Clothing management |
Product Details
| Product Type | RFID Label / Sticker |
|---|---|
| Accepted By Walmart | YES |
| Chip Material | Silicon Wafer |
| Face Material | Art Paper / PET / PP synthetic paper (Other Custom Materials) |
| Release Liner | Glassine Paper |
| UHF Antenna | AL+PET |
| Antenna Width | 30mm |
| Antenna Length | 50mm |
| Label Width | 40mm |
| Label Length | 60mm |
| Label Pitch | 44mm |
| Liner Width | 65mm |
| Above Tolerance | ± 1.00 mm |
| MOQ | 10,000 Pcs |
| Samples | 10 Pcs for free samples |
| Printing | UV printing，Thermal paper printing，Other custom printing. |
Packing Details
| Packing specification | Esd bag vacuum packing (Or Custom Packing specification) |
|---|---|
| Quantity For Per Roll | 2000 pcs/Roll |
| Quantity For Per carton | 32,000 pcs/Carton |
| carton size | 445*445*345mm |
| Unwinding Direction | Label face out |
| Core Inner Diameter | 3 inches |
| Reel Outer diameter | ≤ 203mm |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Dear Customer, we can design different products and solutions for you according to the different application environment of labels. Please inform your customer service in advance of the special use environment of labels. We will delivery an independent product design for you within 2 working days. |
Custom Service
| Custom Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 53*33mm, 54*34mm, 60*40mm, 57*38mm and more. |

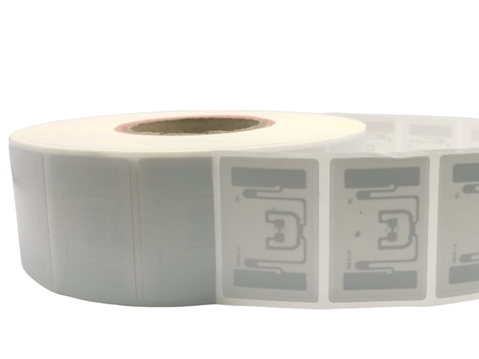

Stocktakes move faster when every item answers a reader, and that is exactly the job this 60×40 mm UHF label is sourced for. Rivotag supplies it as a straightforward retail workhorse: an Impinj M730 chip on a 50×30 mm AL+PET antenna, faced in art paper, PET or PP synthetic stock that takes UV or thermal-paper printing cleanly.
Performance follows EPC Gen 2 (ISO/IEC 18000-6C) across 860–960 MHz, with 128-bit EPC and 96-bit TID memory for item-level serialization. The construction is accepted by Walmart, making it a practical pick for supplier mandates alongside medical, luxury and clothing management projects. Labels ship 2,000 to a roll, face out on a 3-inch core, and operate from 0 to 60 °C.
Where it fits
Distribution centers, apparel floors and hospital storerooms — anywhere adhesive labels meet high-speed scanning. Free samples go out freight collect within 3–5 working days, quotes are answered inside 24 hours, and after artwork approval mass production runs 7–15 days on ISO 9001 partner lines. Chip, size, face material, printing and EPC/TID encoding can all be tailored.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
