Validate this construction on your material with samples before a volume order.

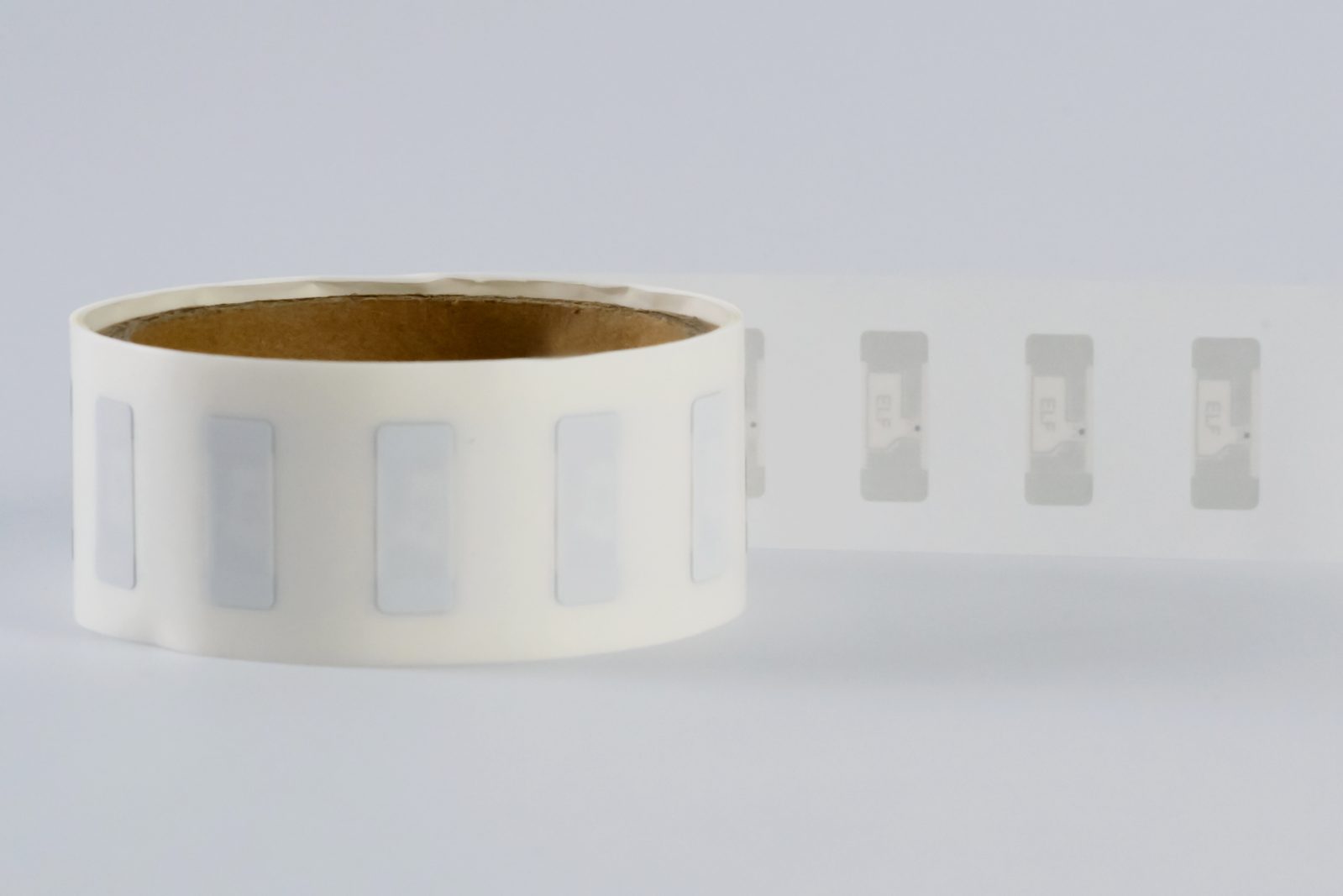

UHF RFID label · 25×10 mm · NXP UCODE 8 (RT-S115)
A 25×10 mm passive UHF label built around the NXP UCODE 8 chip, supplied for apparel and retail programs where space is tight. It follows ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2, stores a 128-bit EPC with 48-bit TID, ships with art paper, PET or PP synthetic faces, and operates from 0 to 60 °C.
At a glance
- RFID Chip
- NXP UCODE 8
- Label Size
- 25mm*10mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bits User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-S115
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S115 |
|---|---|
| RFID Chip | NXP UCODE 8 |
| Label Size | 25mm*10mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bits User Memory |
| Applications | Apparel, Retail, General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel, Retail, General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Some items leave no room for a standard inlay — slim hang tags, narrow packaging edges, small accessories. This 25×10 mm UHF label exists for those jobs: a compact NXP UCODE 8 design that brings item-level identification to surfaces where bigger labels will not sit, and a practical stand-in for bulky EAS hard tags in space-restricted retail settings.
It complies with ISO/IEC 18000-6C and EPCglobal Class 1 Gen 2, carries a 128-bit EPC bank plus 48-bit TID for serialization, and reads dependably even in dense multi-tag environments. Standard facestock is economical art paper with clean print quality; PET and PP synthetic paper are available for tougher handling. Rated operation spans 0–60 °C at 20–80% RH, with bending tolerated above a 50 mm diameter.
Ordering and customization
We supply this label through ISO 9001-audited partner lines, with chip, size, face material, printing and EPC/TID encoding all open to customization. Quotes come back within 24 hours, free samples (freight collect) leave in 3–5 working days, and volume orders ship 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
