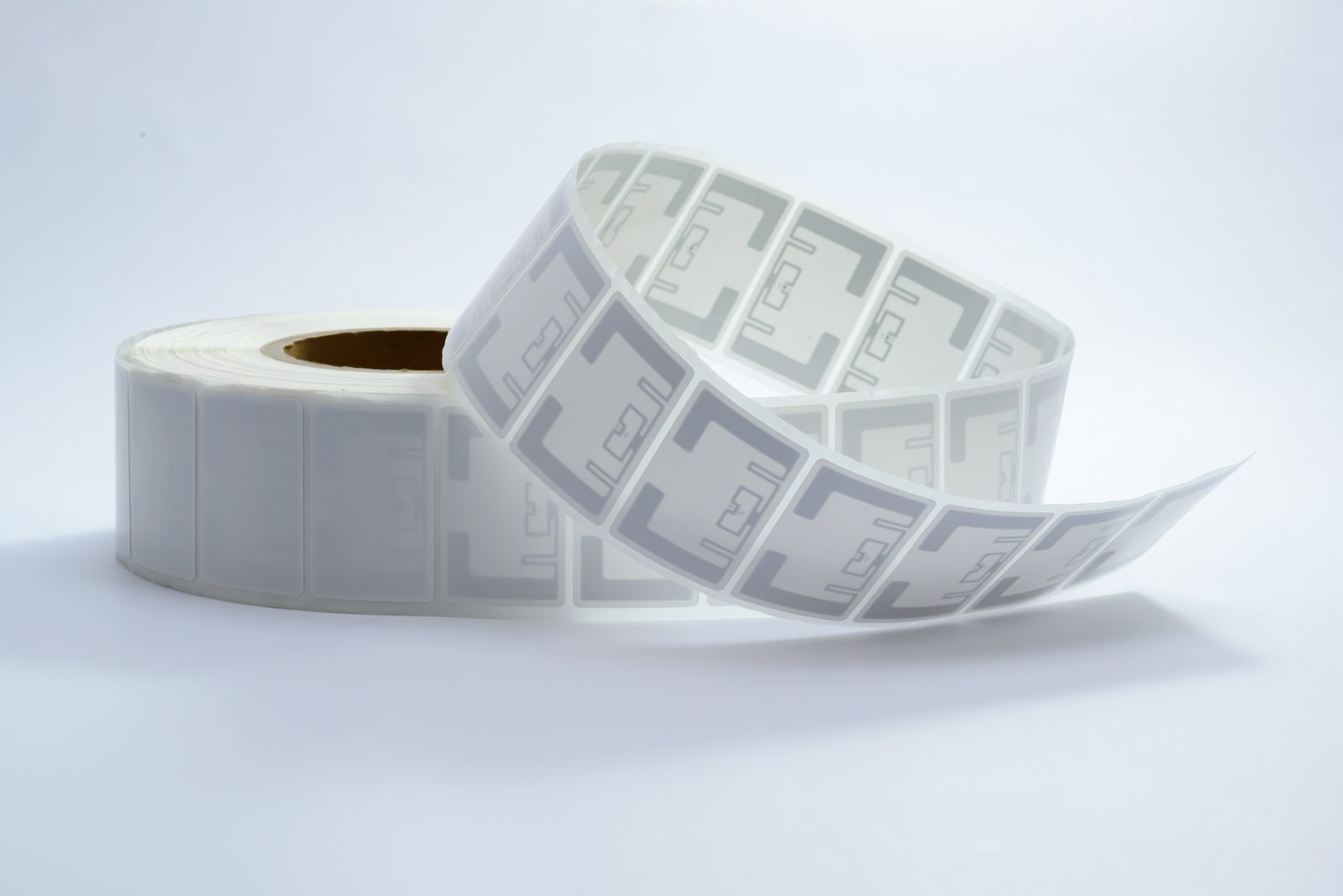

UHF RFID label · 54×34 mm · Qstar-7U (RT-S136)
A self-adhesive 54x34 mm UHF label built on the Quanray Qstar 7U chip, suited to apparel hang tags, footwear boxes and general retail merchandise. Its 50x30 mm antenna delivers fast multi-tag reads under EPCglobal Class 1 Gen 2, while 128-bit EPC plus 128 bits of user memory leave room for item-level data. Art paper, PET or PP synthetic faces are available.
At a glance
- RFID Chip
- Quanray Qstar 7U
- Label Size
- 54mm*34mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48bits TID, 128 bits EPC, 128 bits User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material.
- Product Model
- RT-S136
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S136 |
|---|---|
| RFID Chip | Quanray Qstar 7U |
| Label Size | 54mm*34mm |
| Antenna Size | 50mm*30mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material. |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48bits TID, 128 bits EPC, 128 bits User Memory |
| Applications | Apparel& Footwear, Retail, General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel& Footwear, Retail, General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Retail floors move too fast for one-at-a-time barcode scanning. This 54x34 mm self-adhesive UHF label lets staff sweep a whole rail or carton in a single pass: the Quanray Qstar 7U chip answers over ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2), and a 50x30 mm antenna keeps reads consistent across mixed merchandise.
Memory is generous for an apparel label — 48-bit TID, 128-bit EPC and another 128 bits of user memory for season codes or internal references. The standard art-paper face takes crisp thermal-transfer printing, with PET and PP synthetic paper available for damp or high-wear settings. Rated from 0 to 60 °C and tolerant of bending beyond a 50 mm diameter, it sits happily on hang tags, poly bags and shoe boxes.
Ordering & customization
Rivotag supplies this label with chip, size, face material, printing and EPC/TID encoding all open to customization, produced on ISO 9001 partner lines. Free samples ship freight collect within 3-5 working days, mass production takes 7-15 days after artwork approval, and every quote request is answered within 24 hours.
