UHF RFID label · 74×19 mm · Impinj M830 (RT-S124)
RT-S124

Validate this construction on your material with samples before a volume order.

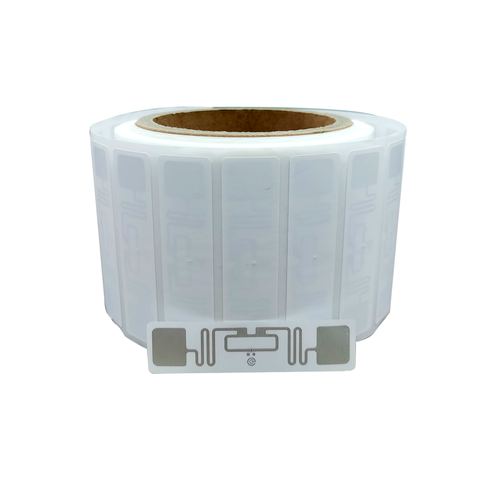

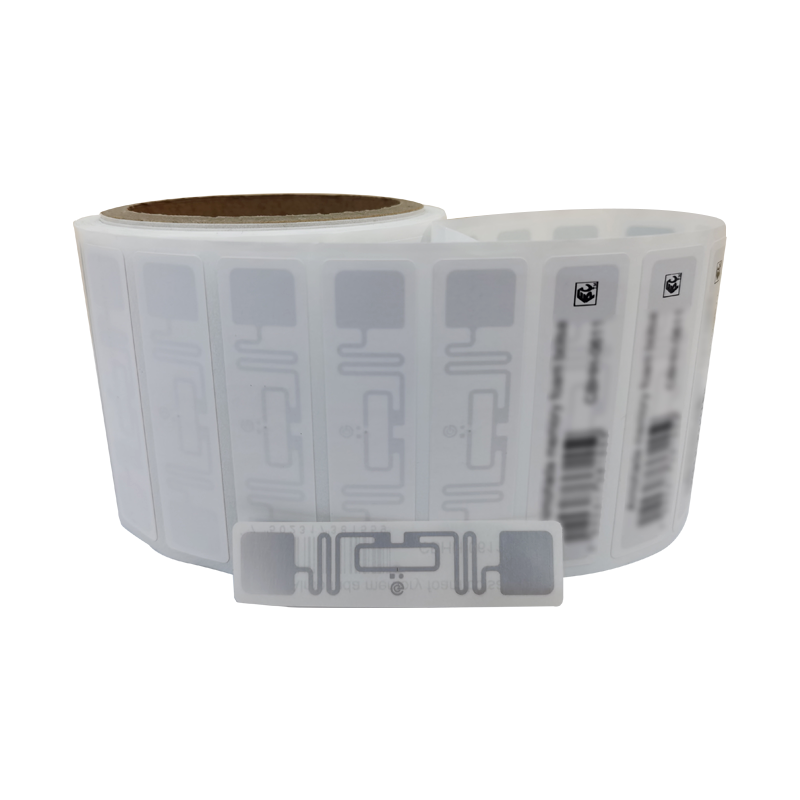

UHF RFID label · 74×19 mm · Impinj M830 (RT-S124)

A narrow 74×19 mm self-adhesive UHF label from the M830 series, matched to mainstream readers and printers across retail and asset workflows. The elongated 70×14 mm antenna suits slim placements such as long product tickets and narrow carton faces, while the Impinj M830 chip (customizable) carries a 128-bit EPC over EPCglobal Class 1 Gen 2.

At a glance

RFID Chip
Impinj M830 (Can be customized)
Label Size
74mm*19mm
Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory
128 bits EPC, 0 bit User Memory
Face Material
Art Paper, PET，PP synthetic paper & Other Customize Face Material
Product Model
RT-S124
Full specifications
Request a quote Request samples

Quote reply within 24 hours

Free samples — freight collect

Pricing matched to your project.

Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.

Supplied by Rivotag through partner production lines.

Technical information

Full specifications

Download specification summary

Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.

Overview

Product ModelRT-S124
RFID ChipImpinj M830 (Can be customized)
Label Size74mm*19mm
Antenna Size70mm*14mm
Face MaterialArt Paper, PET，PP synthetic paper & Other Customize Face Material
ProtocolISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory128 bits EPC, 0 bit User Memory

Customized services Details

Customizable Label SizeYes
PrintingThermal transfer printing，Silk Screen Printing，and other custom printing.
Data initializationEncoding

Storage Environment Requirements

Operating Temperature/Humidity-0～60℃ / 20%～80% RH
Storage Temperature/Humidity20～30℃ / 20%～60% RH
Shelf Life1 year in anti-static bag at 20～30℃ / 20% ～60% RH
ESD Voltage Immunity2 kV (HBM)
Bending Diameter＞ 50mm
Other application environment requirementsYour environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days.

Long and lean, this 74×19 mm label solves placements that square tags handle poorly — narrow packaging faces, extended product tickets, the edge of a carton flap. Its 70×14 mm antenna uses the extra length productively, giving the Impinj M830 chip room to perform in cluttered retail read zones.

The label belongs to a five-size M830 family cut from 45×19 up to 97×27 mm, designed for out-of-the-box compatibility with mainstream RFID hardware. It communicates over ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2 with a 128-bit EPC, wears art paper, PET or PP synthetic faces, and operates between 0 and 60 °C at 20–80% RH.

Ordering and customization

Supplied by Rivotag from ISO 9001-audited partner lines, this label can be reworked in chip, dimensions, facestock, printing and EPC/TID encoding. We turn quotes around inside 24 hours, dispatch free samples freight collect within 3–5 working days, and complete volume orders 7–15 days after artwork approval.

Ordering this product

Sampling, quotations and supply through Rivotag.

How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
