Validate this construction on your material with samples before a volume order.

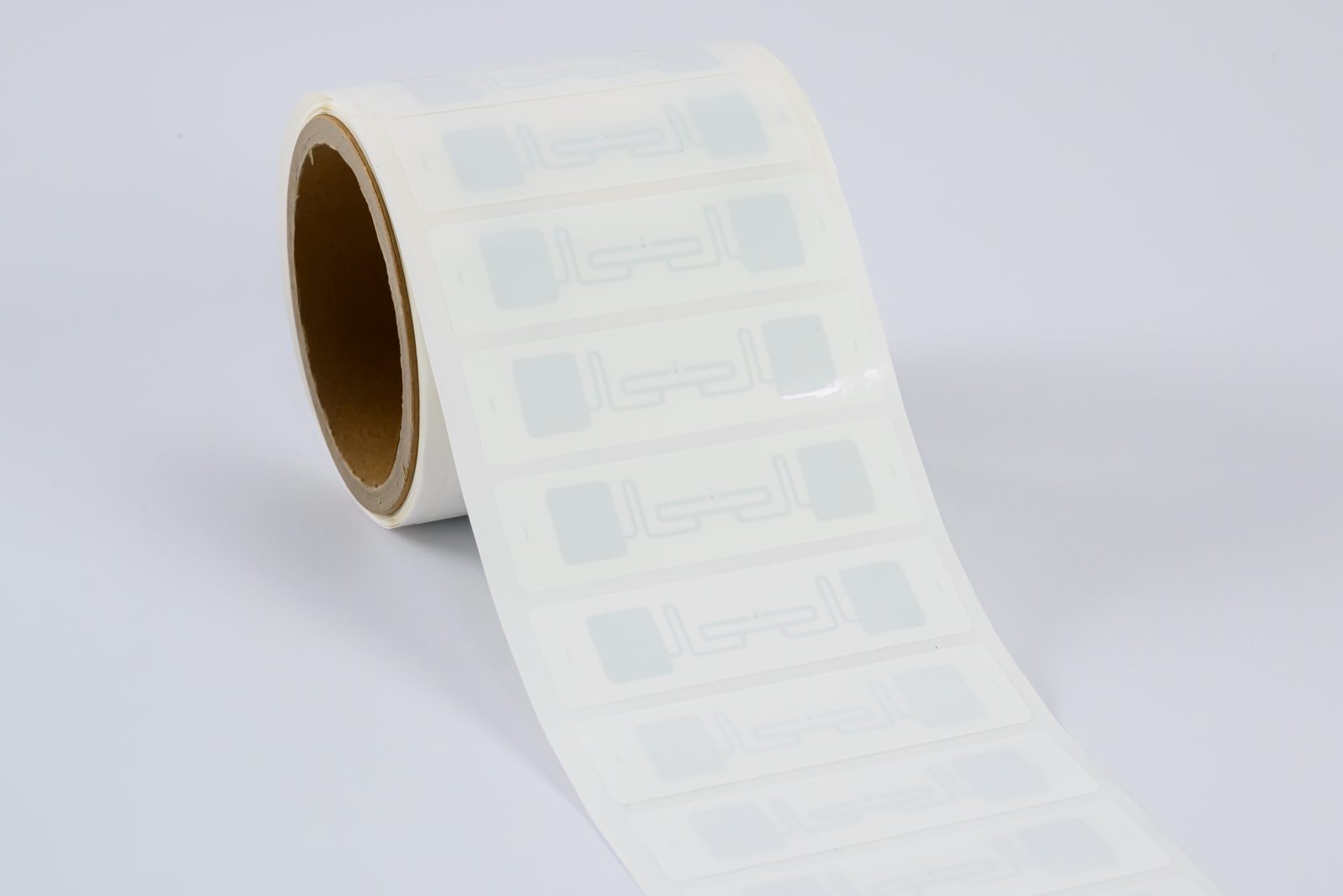

UHF RFID label · 90×25 mm · Alien Higgs 9 (RT-S139)
A slim 90x25 mm UHF label faced in white PET for jobs where paper gives up: damp storage, oily workshops and abrasive handling. It resists water, tearing and wear, while the Alien Higgs 9 chip supplies a 96-bit EPC and 688-bit user memory under EPCglobal Class 1 Gen 2, read through a 70x17 mm antenna.
At a glance
- RFID Chip
- Alien Higgs 9
- Label Size
- 90mm*25mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 96 bits EPC, 688 bits User Memory
- Face Material
- White PET
- Product Model
- RT-S139
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-S139 |
|---|---|
| RFID Chip | Alien Higgs 9 |
| Label Size | 90mm*25mm |
| Antenna Size | 70mm*17mm |
| Face Material | White PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 96 bits EPC, 688 bits User Memory |
| Applications | Requirements for waterproofing or labels that are tear-resistant and wear-resistant |
| Key Benefits | Waterproof, Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Requirements for waterproofing or labels that are tear-resistant and wear-resistant
- Key Benefits
- Waterproof, Fast reading,Multi-reading, Traceability
Some labelling jobs chew through paper stock in a week — condensation, oil splash, constant handling. This 90x25 mm self-adhesive UHF label is faced in white PET precisely for those conditions: it will not tear, it shrugs off water and oil, and printed text stays legible through repeated contact.
Underneath, an Alien Higgs 9 chip communicates over ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) through a 70x17 mm antenna, so a whole shelf of tagged items can be counted in seconds. The memory map is a working asset in itself: 96-bit EPC, 48-bit TID and 688 bits of rewritable user space for inspection dates or process codes. Operating range spans 0 to 60 °C, and the label wraps around curves above 50 mm diameter without damage.
Ordering & customization
We supply free samples freight collect, dispatched in 3-5 working days, with volume orders produced on ISO 9001 partner lines 7-15 days after artwork approval. Ask for a quote and you’ll have an answer within 24 hours; chip, dimensions, face material, printing and EPC/TID encoding are all open to customization.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
