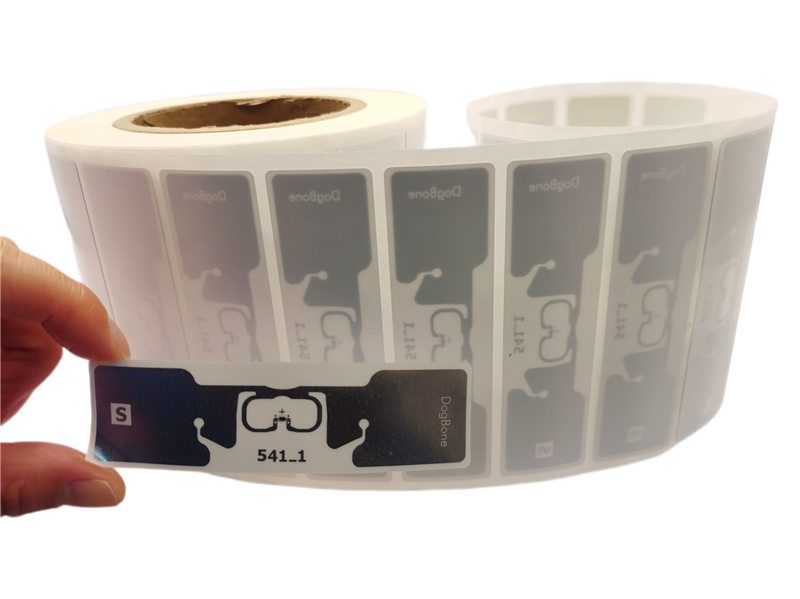

UHF RFID label · 97×27 mm (RT-S109)
UHF RFID label, 97×27 mm format. Confirm the selected chip, encoding and application requirements against the detailed specification before ordering. Chip availability and memory depend on the approved configuration.
At a glance
- RFID Chip
- NXP Ucode8
- Label Size
- 97*27mm
- Operating Frequency
- 860~960MHz
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96 bit TID, 128 bit EPC, 0 bit User Memory
- Face Material
- Art Paper / Thermal paper / PP (Other Custom Materials)
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S109 |
|---|---|
| RFID Chip | NXP Ucode8 |
| Label Size | 97*27mm |
| Antenna Size | 94*24mm |
| Application | Long reading distance RFID labels always used in logistics industry. |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency | 860~960MHz |
| Memory | 96 bit TID, 128 bit EPC, 0 bit User Memory |
| Application overview | If you have a high requirements for RFID reading distance, please select this one. |
| Range of Application | Medical Management , Logistics Management, Clothing management |
Product Details
| Product Type | RFID Label / Sticker |
|---|---|
| Accepted By Walmart | YES |
| Chip Material | Silicon Wafer |
| Face Material | Art Paper / Thermal paper / PP (Other Custom Materials) |
| Release Liner | Glassine Paper |
| UHF Antenna | AL+PET |
| Antenna Width | 24mm |
| Antenna Length | 94mm |
| Label Width | 27mm |
| Label Length | 97mm |
| Label Pitch | 30mm |
| Liner Width | 105mm |
| Above Tolerance | ± 1.00 mm |
| MOQ | 10,000 Pcs |
| Samples | 10 Pcs for free samples |
| Printing | Silk Screen Printing，Thermal paper printing，Other custom printing. |
Packing Details
| Packing specification | Esd bag vacuum packing (Or Custom Packing specification) |
|---|---|

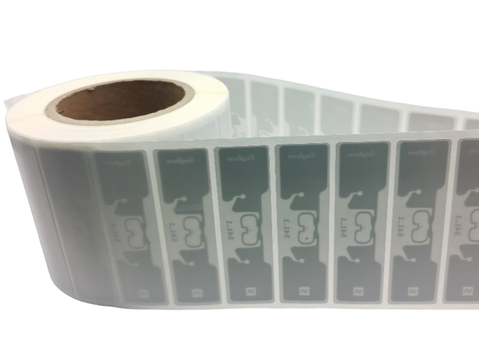

| Quantity For Per Roll | 2,500 pcs/Roll |
| Quantity For Per carton | 30,000 pcs/Carton |
| carton size | 445*445*345mm |
| Unwinding Direction | Label face out |
| Core Inner Diameter | 3 inches |
| Reel Outer diameter | ≤ 203mm |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Dear customers, our product team can design unique products for you according to your special application environment. We will complete the design of customized products for you within two working days, and we can provide you with free sample production service. Please contact your customer service for more customization details. |
Custom Service
| Custom Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 100*100mm, 100*150mm and more. |
Dock doors, high racking, forklift portals — logistics reads happen at range, and antenna length is what buys that range. Rivotag supplies this 97×27 mm UHF label with a 94×24 mm AL+PET antenna spanning nearly the whole face, the format to reach for when ordinary retail labels come up short on distance.
An NXP Ucode8 chip handles the protocol side: ISO/IEC 18000-6C (EPC Gen 2), 860–960 MHz operation, 128-bit EPC and 96-bit TID. The construction is accepted for Walmart programs and serves medical and clothing management alongside warehouse work. Faces come in art paper, thermal paper or PP with silk-screen or thermal printing; rolls hold 2,500 labels on a 105 mm liner, and larger custom formats up to 100×150 mm can be arranged.
Quotes are answered within 24 hours and free samples leave freight collect in 3–5 working days. Chip, size, face material, printing and EPC/TID encoding stay flexible, and ISO 9001 partner lines wrap mass production 7–15 days after your artwork is approved.
