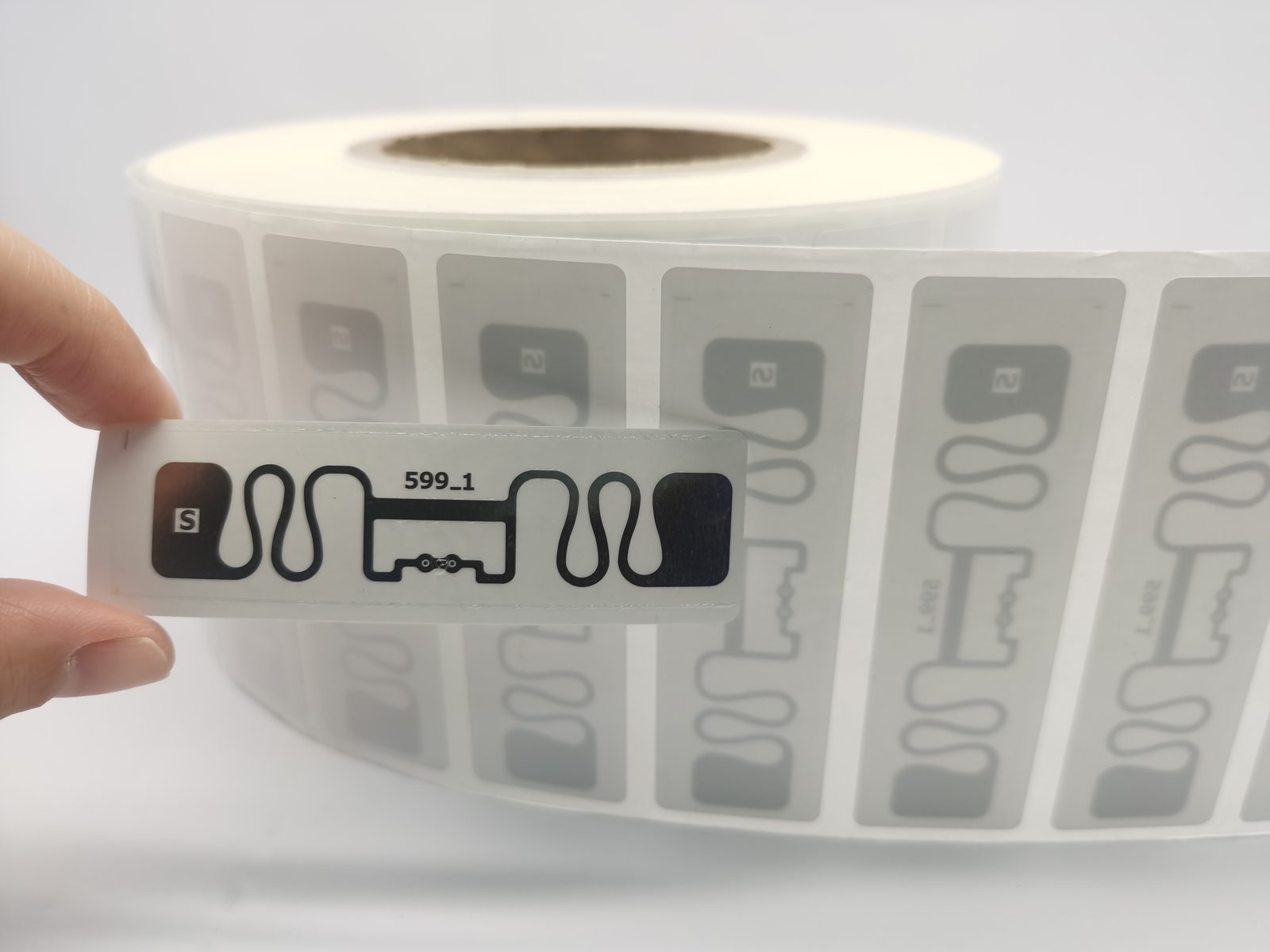

UHF RFID sticker · 80×20 mm · Impinj M730 (RT-S117)
An 80×20 mm UHF RFID sticker built on an ARC-certified inlay with the Impinj M730 chip, reading at distances beyond 10 meters. Its elongated 70×14 mm antenna suits clothing labels, brand hang tags and supermarket goods, and the Walmart-approved design stores a 128-bit EPC plus 48-bit TID under EPCglobal Class 1 Gen 2.
At a glance
- RFID Chip
- Impinj M730
- Label Size
- 80mm*20mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-S117
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-S117 |
|---|---|
| RFID Chip | Impinj M730 |
| Label Size | 80mm*20mm |
| Antenna Size | 70mm*14mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Approved By Walmart | YES |
| Applications | Supermarkets, Apparel&Footwear, Retail,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Approved By Walmart
- YES
- Applications
- Supermarkets, Apparel&Footwear, Retail,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Read range grows with antenna length, and this sticker puts that principle to work: a 70×14 mm antenna inside an 80×20 mm label, achieving reads beyond 10 meters. Because the inlay is ARC certified and the design is approved for Walmart programs, the format is a frequent pick for brand hang tags and apparel moving through big-box retail supply chains.
An Impinj M730 chip handles the air interface — ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2 — with 128 bits of EPC memory and a 48-bit TID. Standard construction uses printable art paper facestock, with PET and PP synthetic paper available for harder wear. The label is rated for 0–60 °C operation and tolerates bending diameters above 50 mm.
Ordering and customization
We supply this sticker produced on ISO 9001 partner lines, customizable in chip, dimensions, face material, printing and EPC/TID encoding. Quotes are answered within 24 hours; free samples (freight collect) dispatch in 3–5 working days, and mass production takes 7–15 days once artwork is approved.
