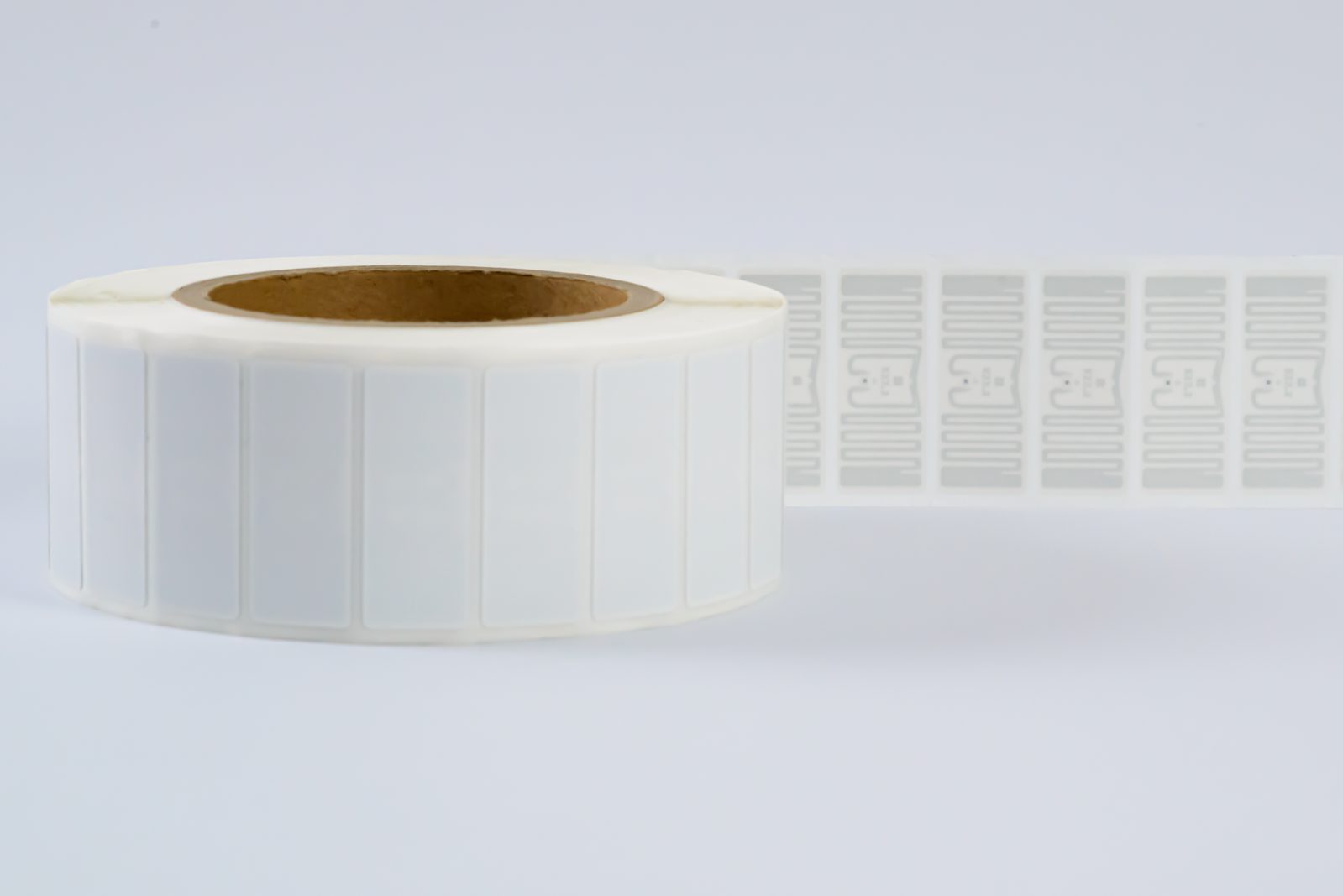

Apparel Retail UHF RFID label · 45×18 mm · NXP UCODE 9 (RT-L140)
One of the smallest formats in our retail range at 45x18 mm, this UHF label slots where bigger tags will not fit — narrow apparel tickets, footwear boxes and supermarket goods — and can stand in for traditional EAS tags. It is listed as Walmart-approved, runs an ARC-certified NXP UCODE 9 inlay with 96-bit EPC, and reads via a 42x16 mm antenna.
At a glance
- RFID Chip
- NXP UCODE 9
- Label Size
- 45mm*18mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-L140
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-L140 |
|---|---|
| RFID Chip | NXP UCODE 9 |
| Label Size | 45mm*18mm |
| Antenna Size | 42mm*16mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bit User Memory |
| Approved By Walmart | YES |
| Applications | Supermarkets, Apparel&Footwear, Retail,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Approved By Walmart
- YES
- Applications
- Supermarkets, Apparel&Footwear, Retail,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Space is the scarcest resource on a garment ticket. At 45x18 mm this UHF label claims almost none of it, yet still hosts an NXP UCODE 9 chip and 42x16 mm antenna that satisfy the read-performance bar set by ARC certification — and the label is listed as approved by Walmart, clearing it for mandated retail programs.
Where a traditional EAS tag only shouts at the door, this one identifies. A 96-bit EPC and 96-bit factory-locked TID (includes a 48-bit unique serial number) under ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) let stores run stock counts, loss prevention and omnichannel picking from the same small sticker. Faces span art paper, PET and PP synthetic, with operation from 0 to 60 °C.
Ordering & customization
We supply it with thermal-transfer or silk-screen printing and serialised EPC encoding and TID capture matched to retailer specifications. Free samples ship freight collect in 3-5 working days; production completes on ISO 9001 partner lines 7-15 days after artwork approval, and quotes return inside 24 hours.
Chip memory reference: NXP UCODE 9 specification.
