RT-S113
UHF RFID textile tag · Custom size
- Chip
- NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more.
- Size
- Can Be Customized
RT-L115
Validate this construction on your material with samples before a volume order.

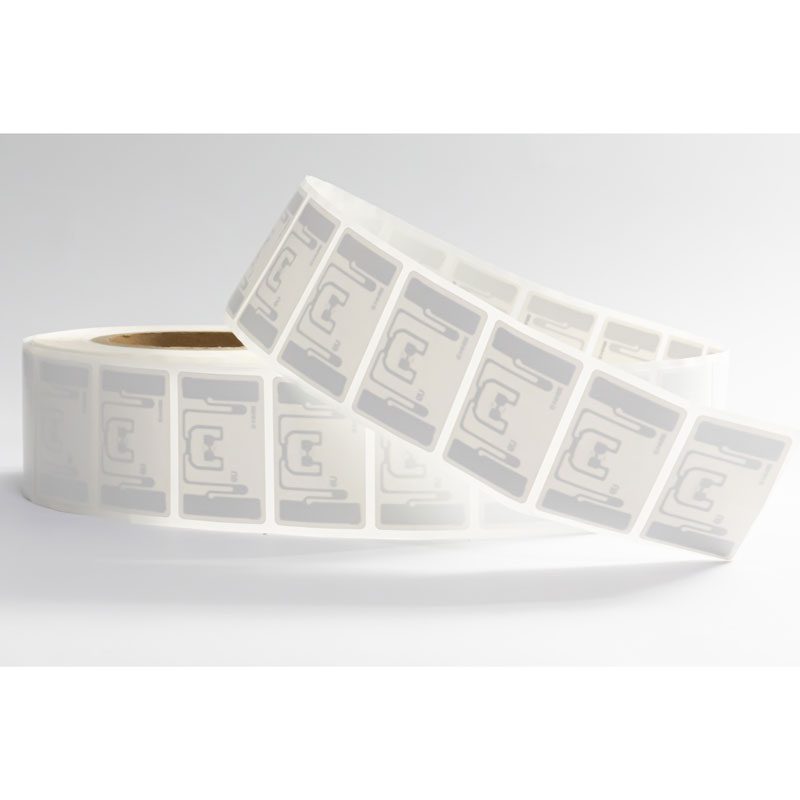

Apparel Retail UHF RFID tag · 54×34 mm · NXP UCODE 9 (RT-L115)
Currently, ARC certification has become the entry threshold for RFID projects for world’s leading apparel brands. This UHF RFID apparel label adopts ARC certified RFID inlay-AD-387U9 and use environmentally friendly glue . This RFID label tag has a long distance reading and is often used for RFID clothing tags or attached to RFID brand hang tags.
At a glance
- RFID Chip
- NXP UCODE 9
- Label Size
- 54mm*34mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-L115
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-L115 |
|---|---|
| RFID Chip | NXP UCODE 9 |
| Label Size | 54mm*34mm |
| Antenna Size | 50mm*30mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bit User Memory |
| Approved By Walmart | YES |
| Applications | Supermarkets, Apparel&Footwear, Retail,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Approved By Walmart
- YES
- Applications
- Supermarkets, Apparel&Footwear, Retail,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Product Description:
| Product Description: | |
|---|---|
| Product Model： | L0540342001U |
| RFID Chip: | NXP UCODE 9 |
| Label Size： | 54mm*34mm |
| Antenna Size： | 50mm*30mm |
| Face Material: | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol： | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory： | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bit User Memory |
| Approved By Walmart: | YES |
| Applications: | Supermarkets, Apparel&Footwear, Retail,General purpose |
| Key Benefits: | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size: | Yes |
|---|---|
| Printing: | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization: | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity： | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity： | 20～30℃ / 20%～60% RH |
| Shelf Life： | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity： | 2 kV (HBM) |
| Bending Diameter： | ＞ 50mm |
| Other application environment requirements: | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
Product Application Guide
For a retail RFID program, provide the required inlay specification, tag placement instructions and encoding scheme. Confirm the exact inlay’s current program approval with your trading partner before production. Rivotag can review label size, printing and encoding requirements against the selected inlay.

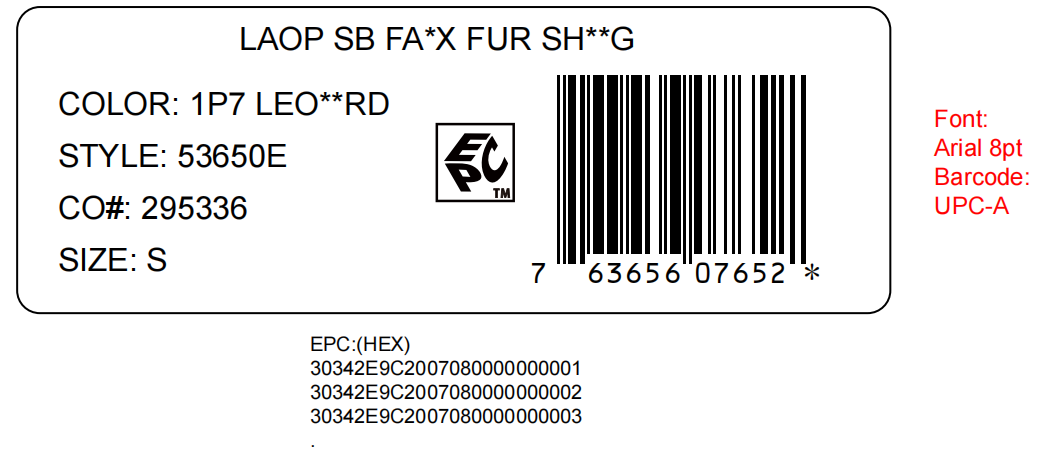

Printing & Encoding Example Of Walmart RFID Label
Previous: UHF RFID textile tag · Custom size (RT-S113)
Next: Apparel UHF RFID label · 45×18 mm · Impinj M730 (RT-L113)
Chip memory reference: NXP UCODE 9 specification.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
