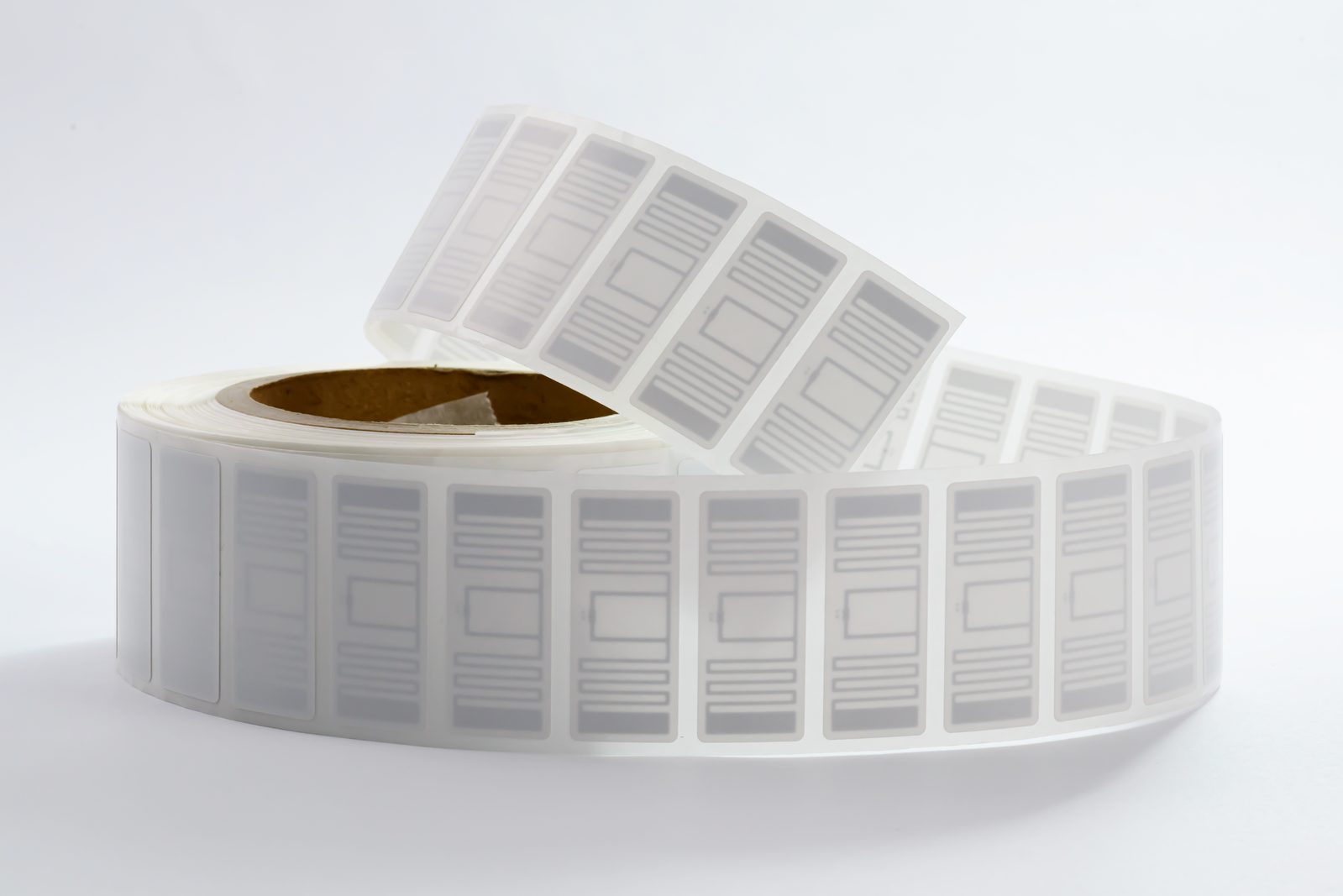

UHF RFID label · 45×19 mm · NXP UCODE 9 (RT-L137)
A narrow 45x19 mm self-adhesive UHF tag that tucks onto price tickets, footwear packaging and small retail goods without crowding the design. Built on NXP UCODE 9 with a 96-bit EPC under EPCglobal Class 1 Gen 2, it maintains high read rates in dense multi-tag scenes; faces include art paper, PET and PP synthetic.
At a glance
- RFID Chip
- NXP UCODE 9
- Label Size
- 45mm*19mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-L137
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L137 |
|---|---|
| RFID Chip | NXP UCODE 9 |
| Label Size | 45mm*19mm |
| Antenna Size | 100mm*100mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory |
| Applications | Apparel& Footwear, Retail, General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel& Footwear, Retail, General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Not every product offers a broad, flat panel for labelling. For narrow price tickets, boxed footwear and compact merchandise, this 45x19 mm UHF tag keeps its footprint minimal while the NXP UCODE 9 chip inside does the heavy lifting — steady, repeatable reads under ISO/IEC 18000-6C even with dozens of tagged items pressed together on a shelf.
Memory covers a 96-bit EPC with 96-bit factory-locked TID (includes a 48-bit unique serial number) for serialised identification. Choose art paper when the label doubles as a printed ticket, or PET and PP synthetic paper when moisture and scuffing are part of daily life. Rated operation spans 0 to 60 °C, with roll storage best kept at 20-30 °C.
Where it fits
Apparel chains, shoe retailers and general merchants running item-level RFID. We answer quotes within 24 hours and ship free samples freight collect inside 3-5 working days; volume orders come off ISO 9001 partner lines 7-15 days after artwork approval, with chip, size, face material, printing and EPC encoding and TID capture all tailorable.
Chip memory reference: NXP UCODE 9 specification.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
