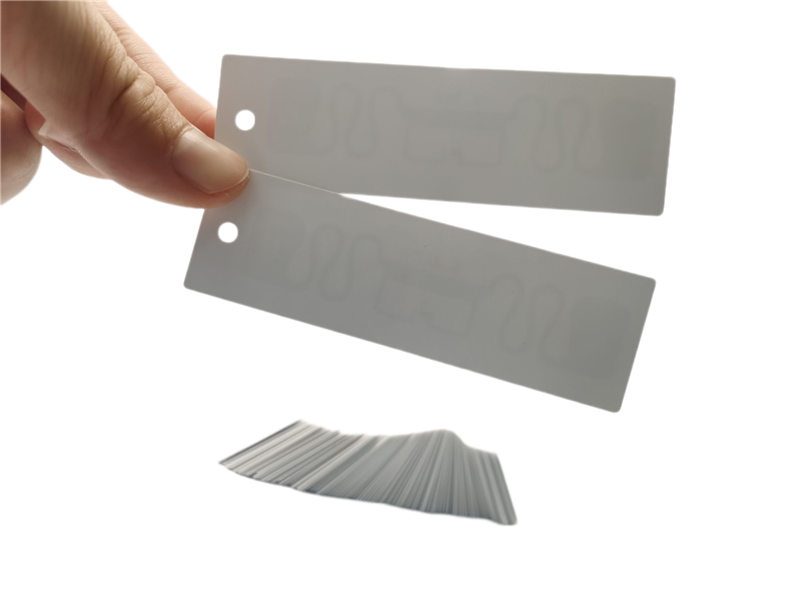

Apparel UHF RFID hang tag · 83×25 mm · Impinj M730 (RT-G101)
A swing-style RFID hang tag in 200 g white art paper, 83×25 mm, made to hang from garments, footwear and accessories in stores and warehouses. Inside sits an Impinj M730 chip on a 70×14 mm antenna, reading at 860–960 MHz under EPC Gen 2 — a Walmart-accepted build with UV-printable faces on both sides.
At a glance
- RFID Chip
- Impinjn M730
- Operating Frequency
- 860~960MHz
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96 bit TID, 128 bit EPC, 0 bit User Memory
- Face Material
- 200g White Art Paper (Both Side)
- Product Model
- RT-G101
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-G101 |
|---|---|
| RFID Chip | Impinjn M730 |
| Hangtag Size | 83mm*25mm |
| Antenna Size | 70mm*14mm |
| Application | RFID hangtag available for Walmart project. |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency | 860~960MHz |
| Memory | 96 bit TID, 128 bit EPC, 0 bit User Memory |
| Application overview | Common UHF hangtag used in retail management. |
| Range of Application | Warehouse management, Intelligent sales, Fast settlement |
Product Details
| Product Type | RFID Hangtag |
|---|---|
| Accepted By Walmart | YES |
| Chip Material | Silicon Wafer |
| Face Material | 200g White Art Paper (Both Side) |
| UHF Antenna | AL+PET |
| Antenna Width | 14mm |
| Antenna Length | 70mm |
| Hangtag Width | 25mm |
| Hangtag Length | 83mm |
| Above Tolerance | ± 0.5 mm |
| MOQ | 10,000 Pcs |
| Samples | 10 Pcs for free samples |
| Printing | UV printing, Other custom printing. |
Packing Details
| Packing specification | Plastic bag packing (Other Custom Packing specification) |
|---|---|
| Quantity For Per Roll | 100pcs/bag |
| Quantity For Per carton | 9,600 pcs/Carton |
| Carton Size | 445*445*345mm |
| Strapping Direction | Printing Front Downwards |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Dear customers, our product team can design unique products for you according to your special application environment. Please tell your special needs to your customer service in advance, and we will complete the design of customized products for you within two working days. |
Custom Service
| Custom Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 87*42mm, 90*40mm, 76*38mm, 76*50mm and more. |
Garment tagging works best when the RFID lives where the price ticket already hangs. This 83×25 mm hang tag does exactly that: two plies of 200 g white art paper enclose a 70×14 mm AL+PET antenna and an Impinj M730 chip, so each piece doubles as a branded ticket and an inventory tag. Rivotag supplies it to apparel brands and their packaging partners as one ticket doing both jobs.
Communication follows ISO/IEC 18000-6C (EPC Gen 2) across 860–960 MHz, with a 128-bit EPC and 96-bit TID in every tag. The construction is accepted by Walmart for supplier tagging, and it supports warehouse receiving, smart-store replenishment and fast settlement counting alike. Tags pack 100 to a bag, about 9,600 per carton.
Ordering and customization
Send your artwork and we return a quote within 24 hours; free samples ship freight collect in 3–5 working days. UV printing of text and barcodes, EPC/TID encoding, alternative chips and other tag sizes are all available, with mass production on ISO 9001 partner lines finishing 7–15 days after artwork approval.
