Apparel Hang ARC-certified UHF RFID label · 83×25 mm · Impinj M730 (RT-A102)

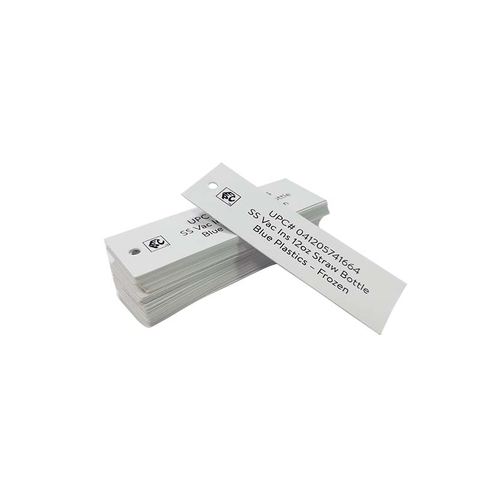

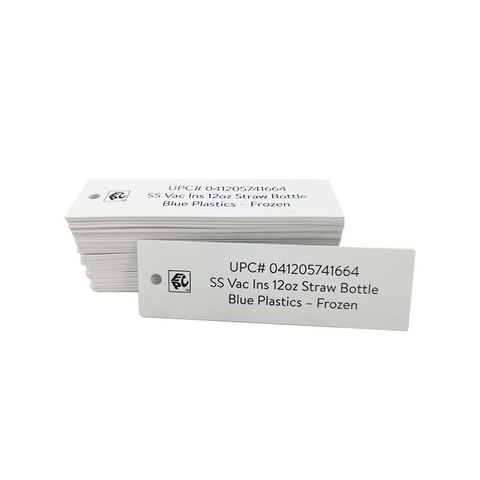

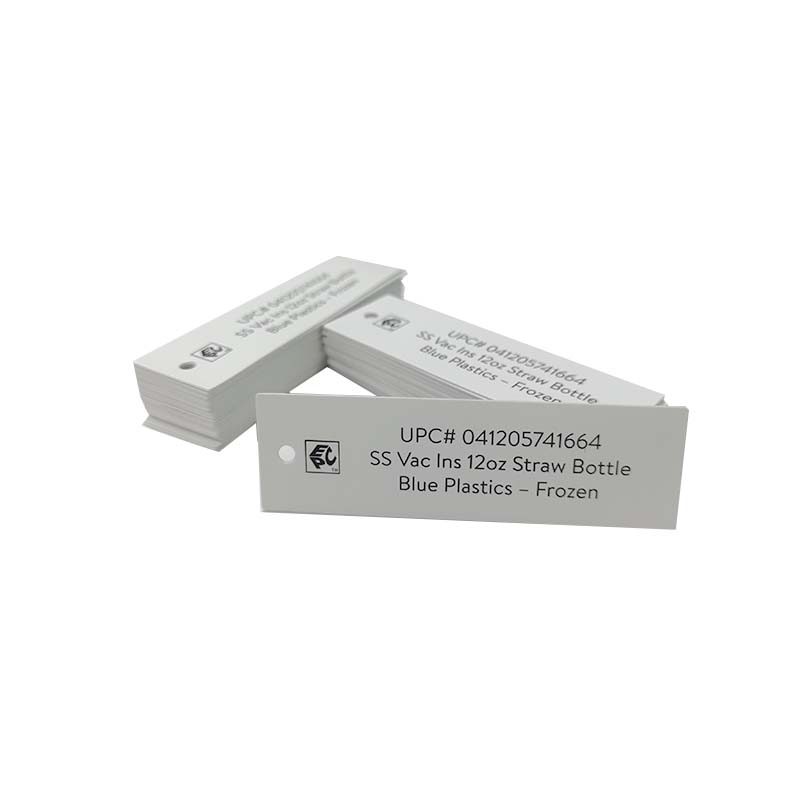

A print-ready RFID hang tag for apparel and footwear, cut to the 83×25 mm format familiar from Walmart hang tag programs and built on an ARC-certified Impinj M730 inlay with 70×14 mm antenna. Faces use 200g coated paper on both sides (0.3–0.5 mm total); holes, rounded corners, mono or full-color printing and EPC encoding are configurable.
At a glance
- RFID Chip
- Impinj M730 (Can be customized)
- Label Size
- 83mm*25mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 128 bits EPC, 0 bit User Memory
- Face Material
- Coated Paper
- Product Model
- RT-A102
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-A102 |
|---|---|
| RFID Chip | Impinj M730 (Can be customized) |
| Label Size | 83mm*25mm |
| Antenna Size | 70mm*14mm |
| Face Material | Coated Paper |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 128 bits EPC, 0 bit User Memory |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
Hang tags do double duty — brand presentation outside, supply chain identity inside. This 83×25 mm ticket handles both. The construction laminates an ARC-certified Impinj M730 inlay between two plies of 200g coated paper, finishing at 0.3–0.5 mm thick with a smooth surface for black-and-white or full-color printing of barcodes, QR codes, text and graphics.
The format follows the size commonly used for Walmart apparel and footwear hang tags, so it slots into retail compliance workflows without redesign. A 70×14 mm antenna delivers ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2 reads with a 128-bit EPC; round holes and corner radii are cut to your specification, and data encoding is completed before dispatch when required.
Ordering and customization
Rivotag has each run produced on ISO 9001 partner lines, customizable in chip, size, face material, printing and EPC/TID encoding. We respond to quotes within 24 hours, dispatch free samples freight collect in 3–5 working days, and complete mass production 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
