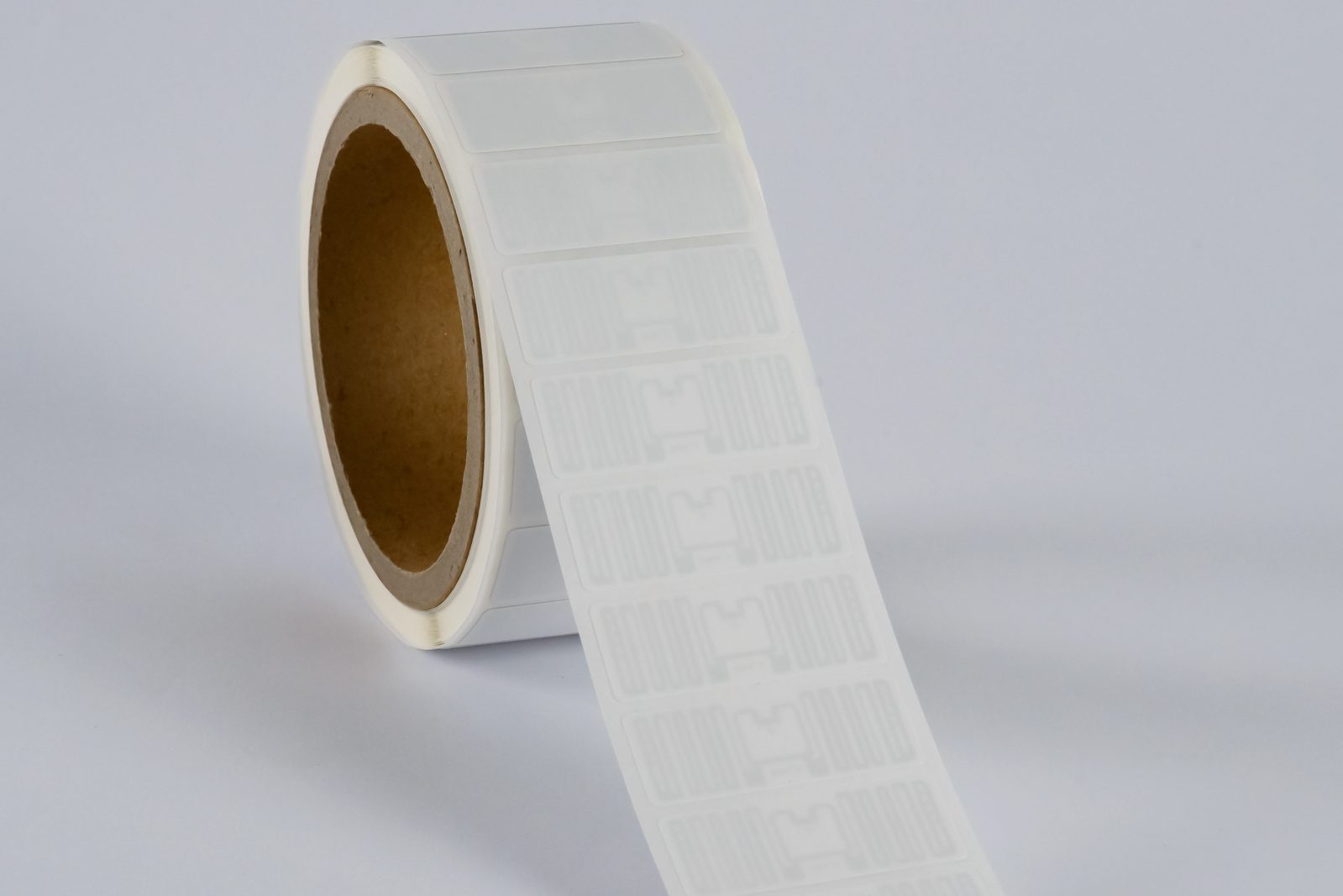

Apparel UHF RFID label · 45×18 mm · Impinj M730 (RT-L116)
A 45×18 mm passive UHF apparel label carrying the Impinj M730 chip on a 42×16 mm antenna, with ARC certification and Walmart approval for retail mandate programs. It serves supermarkets, apparel, footwear and general merchandise, follows ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2, and offers art paper, PET or PP synthetic faces.
At a glance
- RFID Chip
- Impinj M730
- Label Size
- 45mm*18mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-L116
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-L116 |
|---|---|
| RFID Chip | Impinj M730 |
| Label Size | 45mm*18mm |
| Antenna Size | 42mm*16mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Approved By Walmart | YES |
| Applications | Supermarkets, Apparel&Footwear, Retail,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Approved By Walmart
- YES
- Applications
- Supermarkets, Apparel&Footwear, Retail,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Shipping into a retailer RFID mandate? This 45×18 mm label pairs an Impinj M730 chip with a 42×16 mm antenna on an ARC-certified inlay, and it carries Walmart approval — a shortcut through the performance checks that stall many apparel tagging projects.
The M730 platform delivers quick, dependable multi-tag reads under ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2, storing a 128-bit EPC and 48-bit TID for serialized traceability. Face material defaults to printable art paper, with PET and PP synthetic paper as options; the label operates from 0 to 60 °C and stays functional down to a 50 mm bending diameter, so it curves around swing tickets and packaging without failing.
Ordering and customization
Rivotag sources this label from ISO 9001-audited partner lines and supplies it with your choice of size, facestock, printed artwork and EPC/TID encoding — including serialized data prepared for retail compliance. Send your requirement and we reply with a quote inside 24 hours; free samples go out freight collect within 3–5 working days, and production runs follow 7–15 days after artwork approval.
