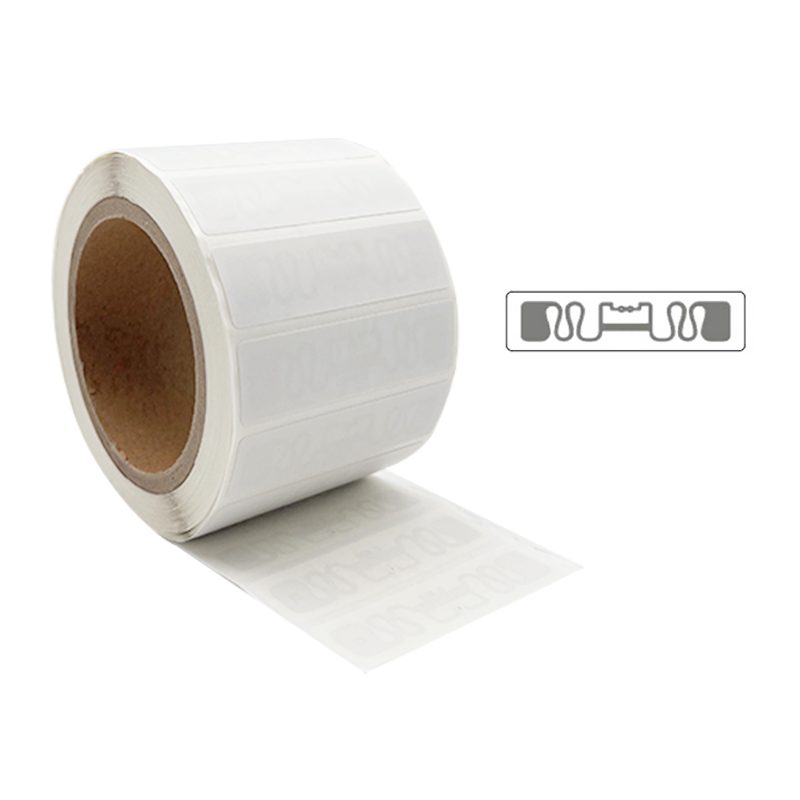

ARC-certified UHF RFID label · 80×20 mm · Impinj M730 (RT-A101)
Walmart-approved paper RFID label in an 80×20 mm format, built around the Impinj M730 chip and a 70×14 mm antenna, assembled with environmentally friendly Avery Dennison adhesive. Designed for clothing tags, brand hang tags and supply chain cartons, it complies with ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2 and stores a 128-bit EPC.
At a glance
- RFID Chip
- Impinj M730
- Label Size
- 80mm*20mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-A101
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-A101 |
|---|---|
| RFID Chip | Impinj M730 |
| Label Size | 80mm*20mm |
| Antenna Size | 70mm*14mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Approved By Walmart | YES |
| Applications | Supermarkets, Apparel&Footwear, Retail,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Approved By Walmart
- YES
- Applications
- Supermarkets, Apparel&Footwear, Retail,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Retail RFID mandates set a high bar for inlay performance, and this 80×20 mm paper label clears it: the design is ARC certified and approved for Walmart tagging programs. We source it for apparel suppliers who need a proven long-format label for clothing tags, brand hang tags and case-level supply chain marking.
Inside sits an Impinj M730 chip on a 70×14 mm antenna, communicating over ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2 with a 128-bit EPC and 48-bit TID. The label is assembled with environmentally friendly Avery Dennison adhesive, takes art paper, PET or PP synthetic facestock, and is rated for 0–60 °C operation at 20–80% RH.
Ordering and customization
Tell us your size, facestock, printed design and EPC/TID encoding scheme — all are customizable, and every order runs on ISO 9001-audited partner lines. We answer quote requests within 24 hours, dispatch free samples freight collect in 3–5 working days, and complete mass production 7–15 days after artwork sign-off.
