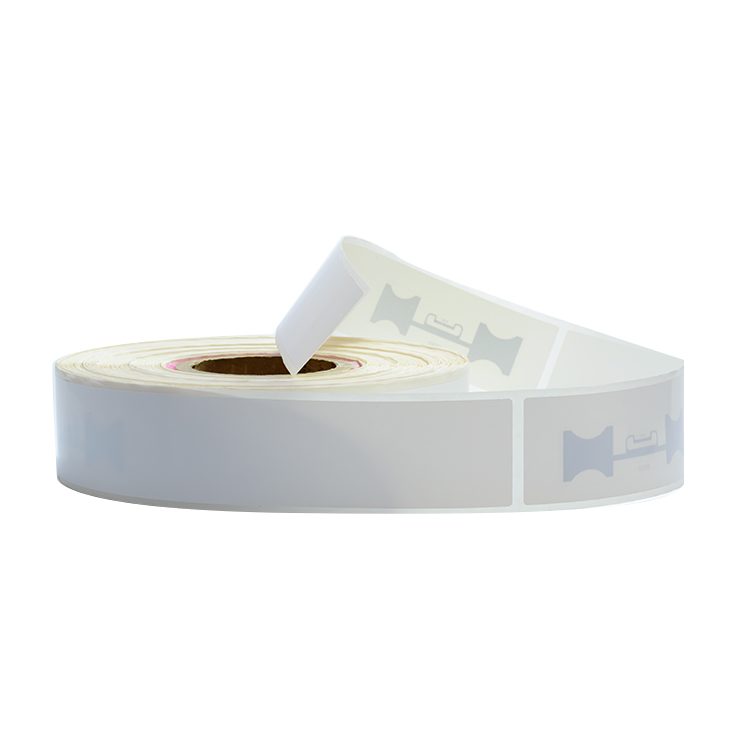

Logistics UHF RFID label · 300×50 mm · NXP UCODE 9 (RT-L133)
A banner-format 300x50 mm UHF label for logistics settings that need tags visible from across the aisle and tough enough to stay put. The PP synthetic paper face resists water, tearing and ageing, while an NXP UCODE 9 chip delivers 96-bit EPC and 96-bit factory-locked TID (includes a 48-bit unique serial number) performance under EPCglobal Class 1 Gen 2.
At a glance
- RFID Chip
- NXP UCODE 9
- Label Size
- 300mm*50mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bit User Memory
- Face Material
- PP Synthesis Paper
- Product Model
- RT-L133
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L133 |
|---|---|
| RFID Chip | NXP UCODE 9 |
| Label Size | 300mm*50mm |
| Face Material | PP Synthesis Paper |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bit User Memory |
| Applications | Logistics, Requirements for waterproofing or labels that cannot be torn off |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Logistics, Requirements for waterproofing or labels that cannot be torn off
- Key Benefits
- Fast reading,Multi-reading, Traceability
At 300x50 mm, this is a label you can read from the far side of a racking aisle — and so can a reader. The elongated format suits pallet edges, long crates and returnable transport items where a small tag would simply disappear, giving people and RFID equipment the same easy target.
Construction starts with PP synthetic paper: waterproof, resistant to tearing and ageing, and comfortable on the harsher outdoor legs of a route. The embedded NXP UCODE 9 chip follows ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) with a 96-bit EPC and 96-bit factory-locked TID (includes a 48-bit unique serial number), supporting bulk reads of stacked or moving stock. Application is standard self-adhesive, and operating temperature spans 0 to 60 °C.
Ordering & customization
Dimensions are fully customizable if 300x50 mm overshoots your carton, and chip, face material, printing and EPC encoding and TID capture follow suit. We hold quotes to a 24-hour reply, ship free samples freight collect in 3-5 working days, and complete production runs on ISO 9001 partner lines within 7-15 days of artwork approval.
Chip memory reference: NXP UCODE 9 specification.
