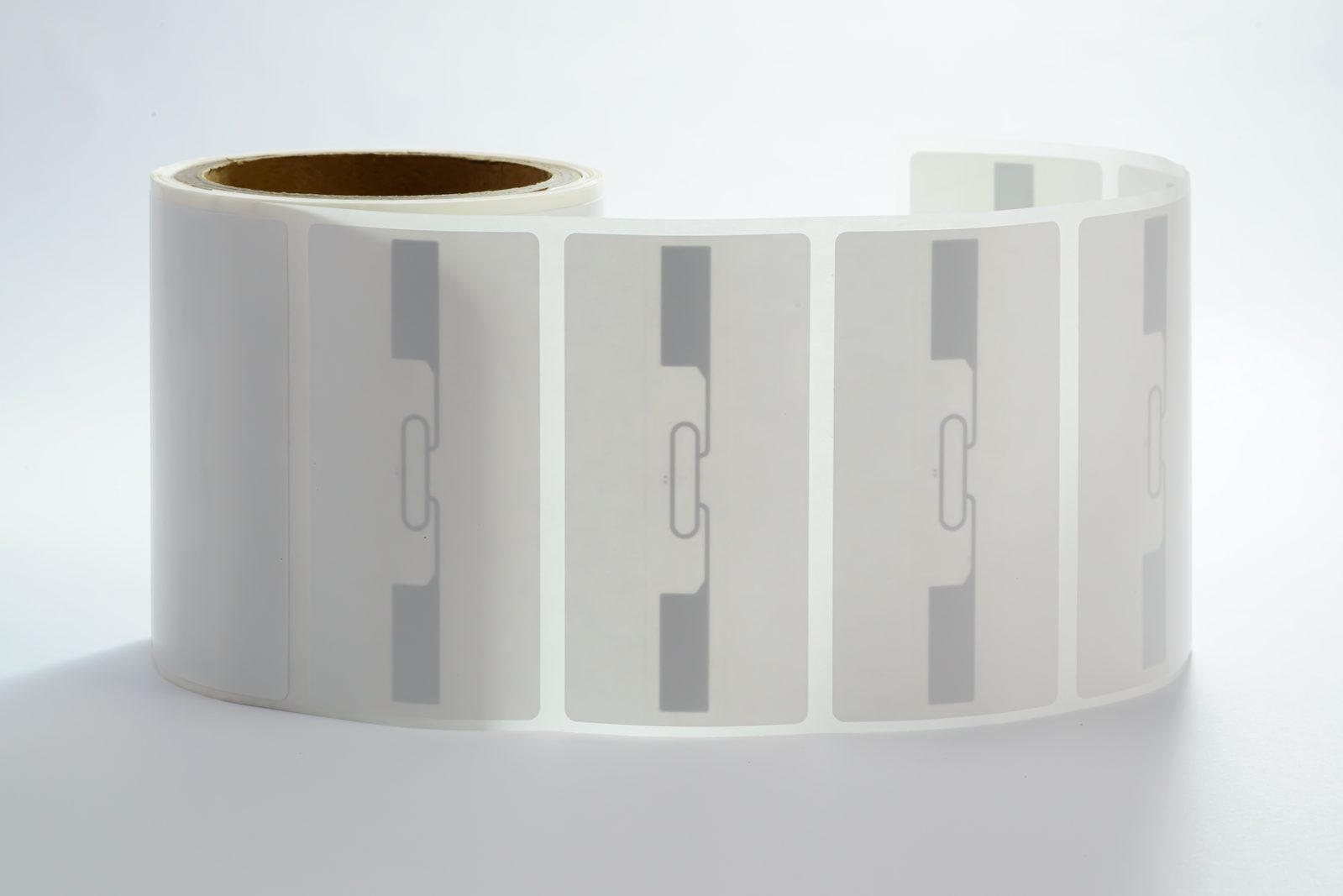

UHF RFID label · 100×50 mm · NXP UCODE 9 (RT-L150)
A 100x50 mm passive UHF label for supply chain and logistics tagging, applied directly to cartons, totes and shipping documents. Working across 860-960 MHz under ISO/IEC 18000-6C, its NXP UCODE 9 chip and slim 95x10 mm antenna return fast multi-tag reads, with a 96-bit EPC and 96-bit factory-locked TID (includes a 48-bit unique serial number) identifying every unit.
At a glance
- RFID Chip
- NXP UCODE 9
- Label Size
- 100mm*50mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material.
- Product Model
- RT-L150
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L150 |
|---|---|
| RFID Chip | NXP UCODE 9 |
| Label Size | 100mm*50mm |
| Antenna Size | 95mm*10mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material. |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory |
| Applications | Supply Chain & Logistics, General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Supply Chain & Logistics, General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Every carton that must be opened for a manual count costs minutes; multiply by a warehouse and the case for this label writes itself. A 100x50 mm passive UHF tag working across 860-960 MHz, it sticks straight onto boxes and totes and reports to any ISO/IEC 18000-6C reader — dozens of tags per pass, no line of sight required.
The NXP UCODE 9 chip supplies a 96-bit EPC and 96-bit factory-locked TID (includes a 48-bit unique serial number) for unit-level traceability, driven through a slim 95x10 mm antenna that leaves most of the face free for printed addresses and barcodes. Faces are art paper by default, with PET or PP synthetic where conditions demand, all rated 0 to 60 °C in service.
Ordering & customization
As your supplier, Rivotag handles chip swaps, size changes, face material, custom printing and EPC encoding and TID capture, with production on ISO 9001 partner lines. Quotes return within 24 hours, free samples ship freight collect in 3-5 working days, and volume completes 7-15 days after artwork approval.
Chip memory reference: NXP UCODE 9 specification.
