Retail Eyewear UHF RFID tag · 66×26 mm · Qstar-7U (RT-L123)
RT-L123

Validate this construction on your material with samples before a volume order.

Labels for Different Frequencies

Retail Eyewear UHF RFID tag · 66×26 mm · Qstar-7U (RT-L123)

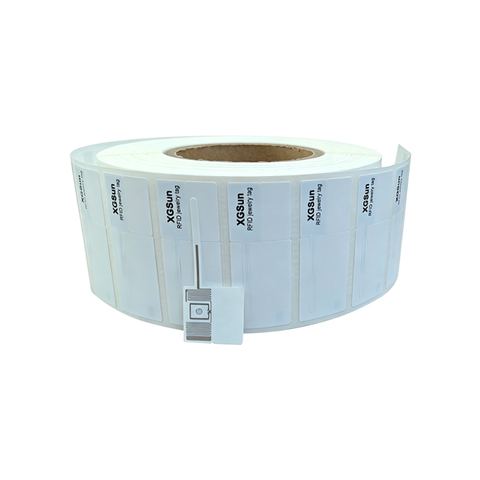

A wrap-around tail tag for glasses and jewelry counters: the 66×26 mm white PET body folds to a discreet 25×13 mm head that fastens firmly without marking delicate pieces. Its Qstar-7U chip reaches -17 dBm read sensitivity and about 4 meters of range, holding a 128-bit EPC plus 128-bit user memory; the waterproof face takes 600 dpi printing.

At a glance

RFID Chip
Qstar-7U (Can be customized)
Label Size
66mm*26mm
Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory
128 bits EPC, 128 bits User Memory
Face Material
White PET
Product Model
RT-L123
Full specifications
Request a quote Request samples

Quote reply within 24 hours

Free samples — freight collect

Pricing matched to your project.

Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.

Supplied by Rivotag through partner production lines.

Technical information

Full specifications

Download specification summary

Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.

Overview

Product ModelRT-L123
RFID ChipQstar-7U (Can be customized)
Label Size66mm*26mm
Antenna Size42mm*11mm
Face MaterialWhite PET
ProtocolISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory128 bits EPC, 128 bits User Memory

Customized services Details

Customizable Label SizeYes
PrintingThermal transfer printing，Silk Screen Printing，and other custom printing.
Data initializationEncoding

Storage Environment Requirements

Operating Temperature/Humidity-0～60℃ / 20%～80% RH
Storage Temperature/Humidity20～30℃ / 20%～60% RH
Shelf Life1 year in anti-static bag at 20～30℃ / 20% ～60% RH
ESD Voltage Immunity2 kV (HBM)
Bending Diameter＞ 50mm
Other application environment requirementsYour environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days.

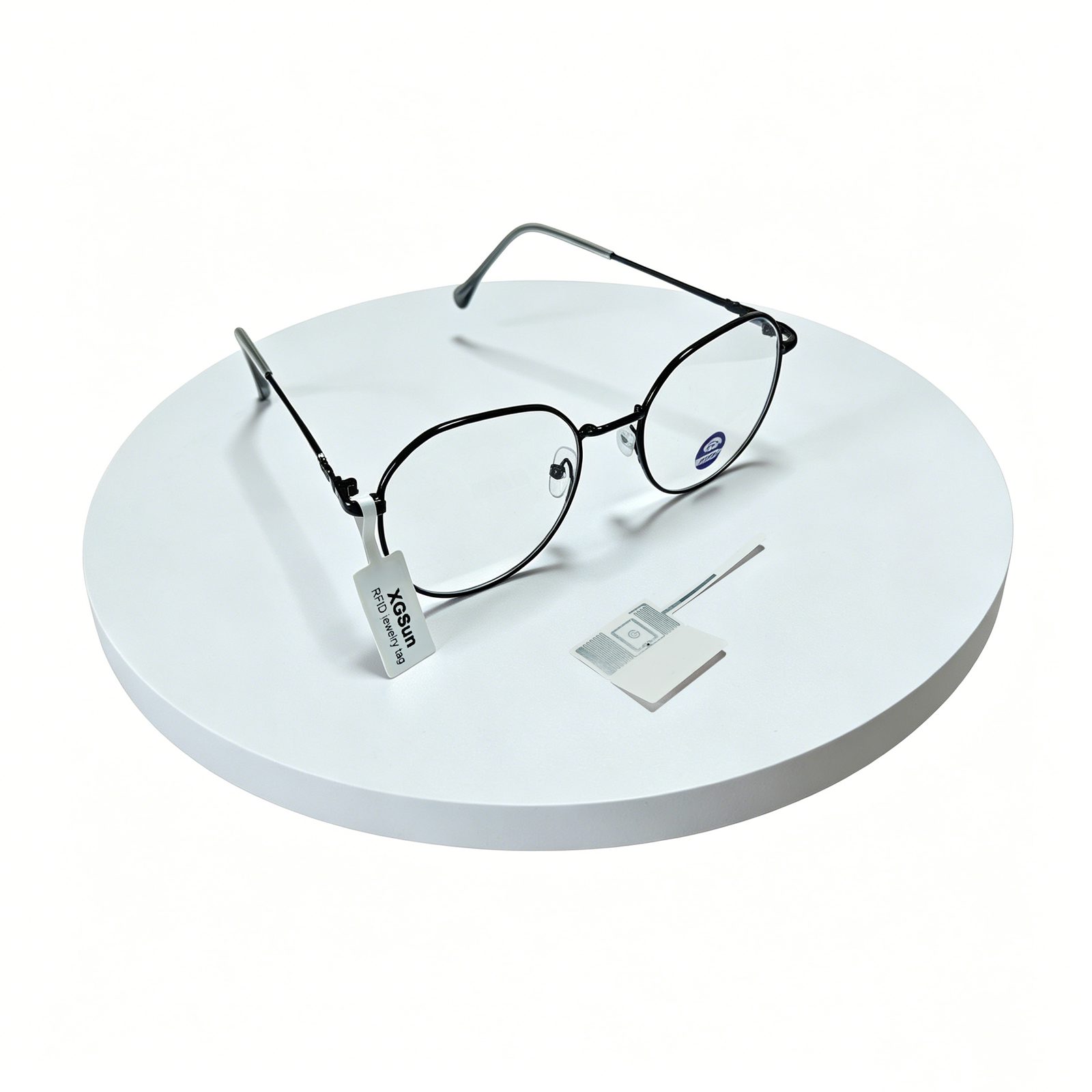

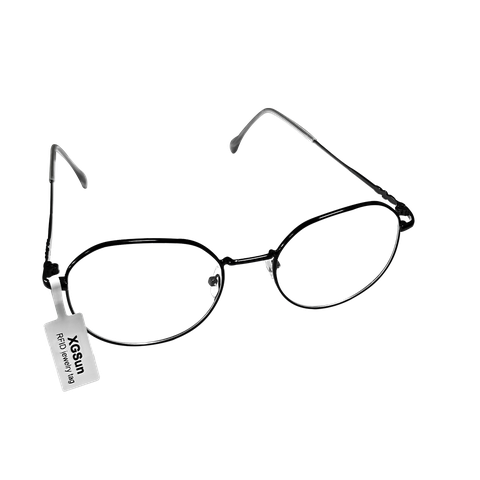

Eyewear and jewelry pose the same tagging problem: tiny products, zero tolerance for damage, and stock counted piece by piece. This tailed tag answers all three. The 66×26 mm white PET strip loops around a temple arm or chain and closes on itself, presenting a slim 25×13 mm face that stays out of the customer’s way.

Electrically it runs a Qstar-7U chip with -17 dBm read sensitivity and up to 4 meters of range under ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2 — enough to sweep a display case in one pass. Memory pairs a 128-bit EPC with 128 bits of user space, and the waterproof PET face supports 600 dpi high-definition printing for barcodes and pricing.

Ordering and customization

Rivotag supplies the tag from ISO 9001-audited partner lines with chip, dimensions, face material, printing and EPC/TID encoding shaped to your inventory system. Quotes return within 24 hours; free samples travel freight collect in 3–5 working days, and production concludes 7–15 days after artwork approval.

Ordering this product

Sampling, quotations and supply through Rivotag.

How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
