Test Tube Anti Liquid UHF RFID label · 54×34 mm · NXP UCODE 9 (RT-S119)
RT-S119

Validate this construction on your material with samples before a volume order.

RFID Specialty Tags

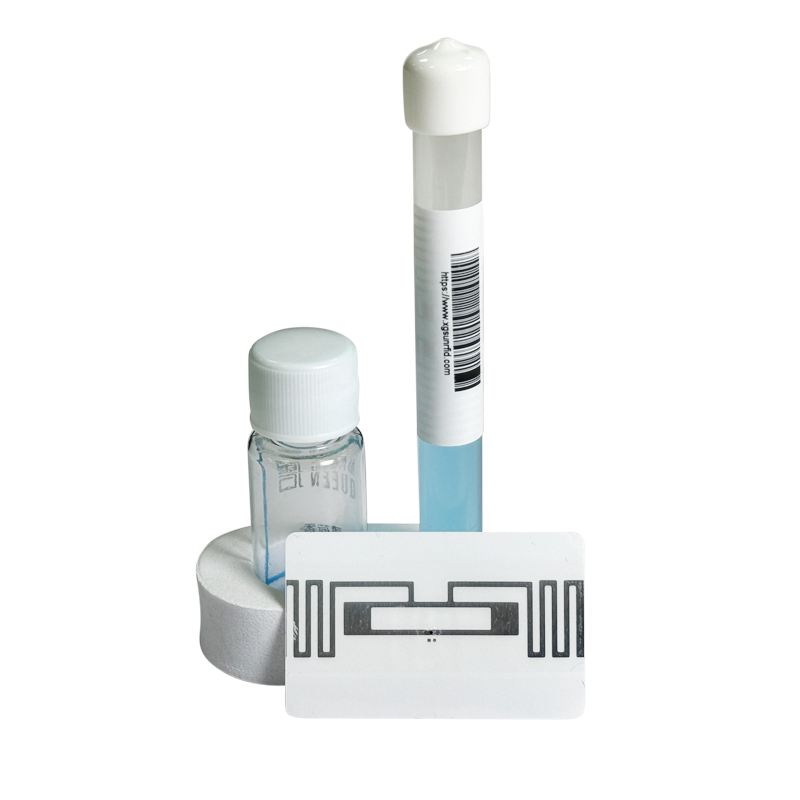

Test Tube Anti Liquid UHF RFID label · 54×34 mm · NXP UCODE 9 (RT-S119)

UHF security label tuned to perform on liquid-filled plastic test tubes and bottles, where conventional inlays fail. The 54×34 mm thermal PP construction carries an NXP UCODE 9 chip (customizable) with a 96-bit EPC over ISO/IEC 18000-6C, and keeps working from -20 to 60 °C — covering cold sample storage as well as bench handling.

At a glance

RFID Chip
NXP Ucode 9 (Can be customized)
Label Size
54mm*34mm
Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory
96 bits EPC, 0 bit User Memory
Face Material
Thermal PP
Product Model
RT-S119
Full specifications
Request a quote Request samples

Quote reply within 24 hours

Free samples — freight collect

Pricing matched to your project.

Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.

Supplied by Rivotag through partner production lines.

Technical information

Full specifications

Download specification summary

Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.

Overview

Product ModelRT-S119
RFID ChipNXP Ucode 9 (Can be customized)
Label Size54mm*34mm
Antenna Size50mm*30mm
Face MaterialThermal PP
ProtocolISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Memory96 bits EPC, 0 bit User Memory

Customized services Details

Customizable Label SizeYes
PrintingThermal transfer printing，Silk Screen Printing，and other custom printing.
Data initializationEncoding

Storage Environment Requirements

Operating Temperature/Humidity-20～60℃ / 20%～60% RH
Storage Temperature/Humidity20～30℃ / 20%～60% RH
Shelf Life1 year in anti-static bag at 20～30℃ / 20% ～60% RH
ESD Voltage Immunity2 kV (HBM)
Bending Diameter＞ 50mm
Other application environment requirementsYour environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days.

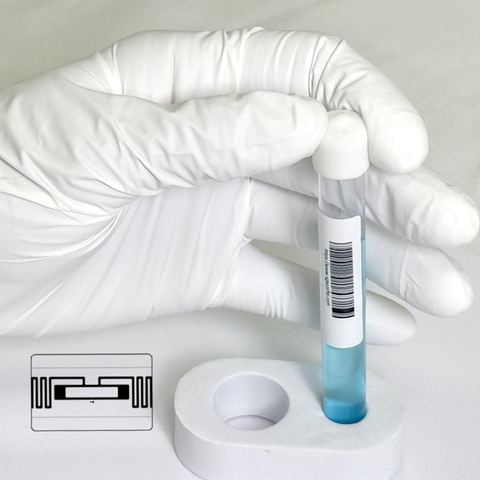

Plastic test tubes filled with reagents or specimens are hostile territory for RFID: the liquid inside shifts antenna tuning until reads collapse. This anti-liquid label answers with an antenna design matched to that environment — it adheres cleanly to curved plastic tubes and holds stable performance for medical sample management, liquid bottle supply chains and chemical anti-counterfeiting.

The build pairs a thermal PP face, ready for printed IDs and barcodes, with an NXP UCODE 9 chip on a 50×30 mm antenna inside a 54×34 mm label. It speaks ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2 with a 96-bit EPC, and the -20 to 60 °C operating window spans cold storage as well as room-temperature laboratories.

Ordering and customization

Rivotag supplies this tag with chip, size, face material, printing and EPC/TID encoding tailored per project, produced on ISO 9001 partner lines. Expect a quote within 24 hours; free samples dispatch freight collect in 3–5 working days and mass production completes 7–15 days after artwork approval.

Ordering this product

Sampling, quotations and supply through Rivotag.

How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
