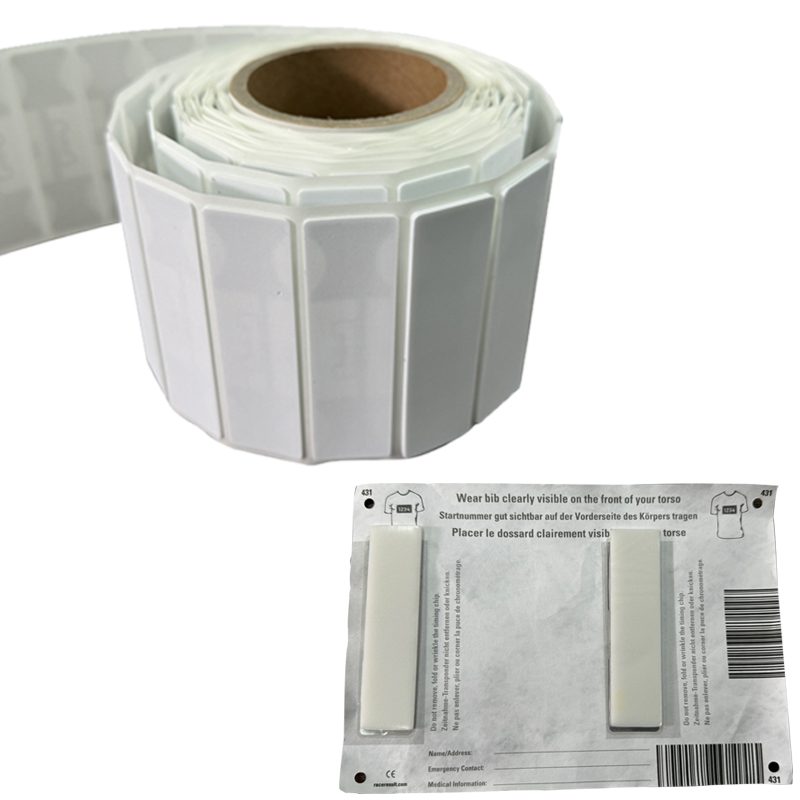

Race Timing UHF RFID tag · 97×27 mm · NXP UCODE 9 (RT-S126)
Foam bib tag for sports timing that pairs a GF01 94×24 mm antenna with NXP's UCODE 9 chip — U8 optional — for reads up to 10 meters. A waterproof PET face and a foam layer exceeding 2 mm keep performance stable against the body in marathons, triathlons and cycling races; memory is a 96-bit EPC with 48-bit TID.
At a glance
- RFID Chip
- NXP Ucode 9 (Can be customized)
- Label Size
- 97mm*27mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bit TID, 96 bit EPC, 0 bit User Memory
- Product Model
- RT-S126
- Antenna Size
- 94mm*24mm(GF01)
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S126 |
|---|---|
| RFID Chip | NXP Ucode 9 (Can be customized) |
| Label Size | 97mm*27mm |
| Antenna Size | 94mm*24mm(GF01) |
| Tag Structure | White PET + >2mmT Foam + Inlay + Release Liner |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bit TID, 96 bit EPC, 0 bit User Memory |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Timing management for sports events such as marathons, triathlons, cycling, etc.
- Key Benefits
- waterproof,accurate reading even in challenging environments
Finish-line accuracy starts hours earlier, when thousands of tags are stuck onto bibs by volunteers. This one keeps that step foolproof: peel, stick, race. Underneath, the engineering is deliberate — a GF01 antenna measuring 94×24 mm drives an NXP UCODE 9 chip, with reads reaching 10 meters depending on the reader.

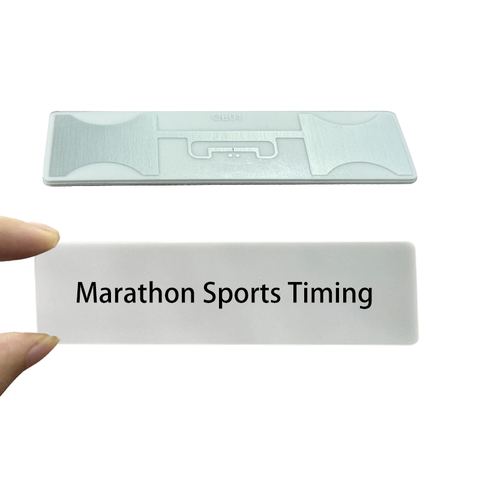

The structure sandwiches more than 2 mm of foam between a waterproof white PET face and the release liner. That thickness lifts the inlay off the runner’s body — the main source of interference in on-body UHF — and improves water resistance for rain-soaked events. The tag follows ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2 and stores a 96-bit EPC with 48-bit TID; UCODE 8 builds are available where preferred.
Ordering and customization
Rivotag supplies these tags from ISO 9001-certified partner lines with size, chip, printing and EPC/TID encoding personalized to each event. Expect a quote inside 24 hours, free freight-collect samples in 3–5 working days, and delivery of production runs 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
