RT-L107
UHF RFID textile tag · Custom size
- Chip
- NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more.
- Size
- Can Be Customized
RT-L110
Validate this construction on your material with samples before a volume order.

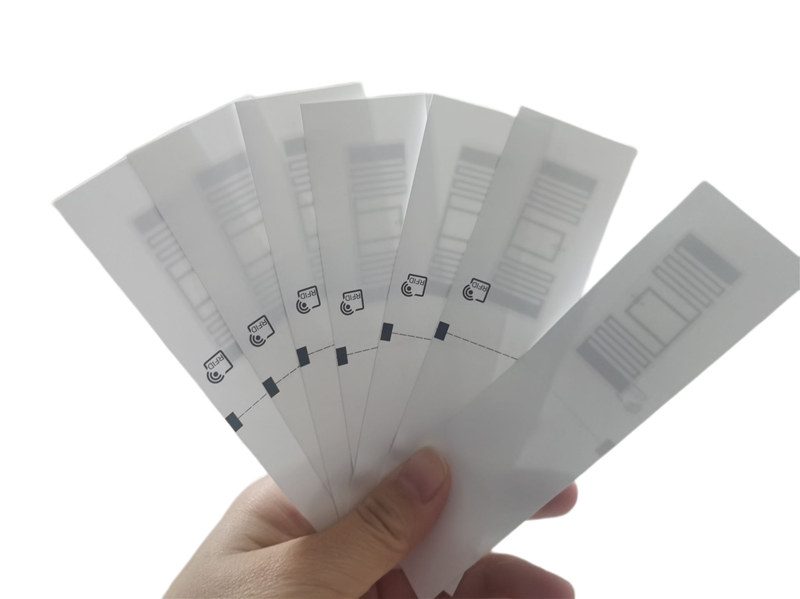

UHF RFID textile tag · Custom size (RT-L110)
Configurable UHF RFID textile label. Size and antenna dimensions can be customized; confirm the selected chip, attachment, print and encoding requirements in the quotation.
At a glance
- RFID Chip
- NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more.
- Label Size
- Can Be Customized
- Operating Frequency
- 860~960MHz
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- Chip dependent; confirm EPC, TID and user memory for the selected option
- Face Material
- Nylon tape, polyester(Other Custom Materials)
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product | RFID Custom Size Woven Label |
|---|---|
| RFID Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
| Label Size | Can Be Customized |
| Antenna Size | Can Be Customized |
| Application | General RFID Woven Label |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency | 860~960MHz |
| Memory | Chip dependent; confirm EPC, TID and user memory for the selected option |
| Application overview | Common RFID label used in clothing sales and management. |
| Range of Application | Intelligent Sales, Asset Management, Logistics Management, Clothing Management，Medical Management |
Product Details
| Product Type | RFID Woven Label |
|---|---|
| Chip Material | Silicon Wafer |
| Face Material | Nylon tape, polyester(Other Custom Materials) |
| UHF Antenna | AL+PET |
| MOQ | 10,000 Pcs |
| Samples | 15 Pcs for free samples |
| Printing | Thermal transfer printing，Thermal paper printing，Other custom printing. |
Packing Details
| Packing specification | Esd bag vacuum packing (Other Custom Packing specification) |
|---|---|
| Quantity For Per Roll | 200 pcs/bundle |
| Quantity For Per carton | 10,000 pcs/Carton |
| carton size | 445*445*345mm |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in plastic bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Dear customers, our product team can design unique products for you according to your special application environment. Please tell your special needs to your customer service in advance, and we will complete the design of customized products for you within two working days. |
Custom Service
| Custom Chip | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 60*40mm, 100*100mm and more. |
This configurable woven RFID label is intended for apparel identification. Compare the RFID textile tag family and specify the fabric, finished size and item-identification workflow.
Overview
| Product： | RFID Custom Size Woven Label |
|---|---|
| RFID Chip: | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
| Label Size： | Can Be Customized |
| Antenna Size: | Can Be Customized |
| Application： | General RFID Woven Label |
| Protocol： | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency： | 860~960MHz |
| Memory： | Chip dependent; confirm EPC, TID and user memory for the selected option |
| Application overview： | Common RFID label used in clothing sales and management. |
| Range of Application | Intelligent Sales, Asset Management, Logistics Management, Clothing Management，Medical Management |
Product Details
| Product Type: | RFID Woven Label |
|---|---|
| Chip Material: | Silicon Wafer |
| Face Material: | Nylon tape, polyester(Other Custom Materials) |
| UHF Antenna: | AL+PET |
| MOQ: | 10,000 Pcs |
| Samples: | 15 Pcs for free samples |
| Printing: | Thermal transfer printing，Thermal paper printing，Other custom printing. |
Packing Details
| Packing specification: | Esd bag vacuum packing (Other Custom Packing specification) |
|---|---|
| Quantity For Per Roll: | 200 pcs/bundle |
| Quantity For Per carton: | 10,000 pcs/Carton |
| carton size： | 445445345mm |
Storage Environment Requirements
| Operating Temperature/Humidity： | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity： | 20～30℃ / 20%～60% RH |
| Shelf Life： | 1 year in plastic bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity： | 2 kV (HBM) |
| Bending Diameter： | ＞ 50mm |
| Other application environment requirements: | Dear customers, our product team can design unique products for you according to your special application environment. Please tell your special needs to your customer service in advance, and we will complete the design of customized products for you within two working days. |
Product Application Guide

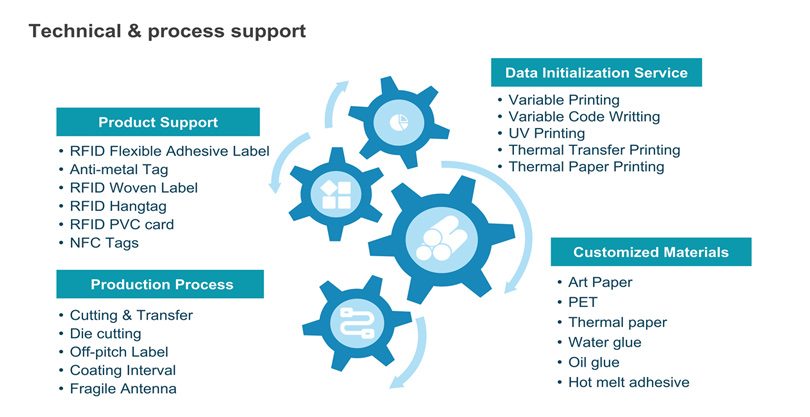

In order to reduce your time and cost in RFID program’ s Encoding and printing, our team launched RFID label purchasing & data initialization service for Our customers. We will provide you with RFID label production, label printing, EPC compilation & EPC coding one-station service, with the most experienced team & most efficient equipment.

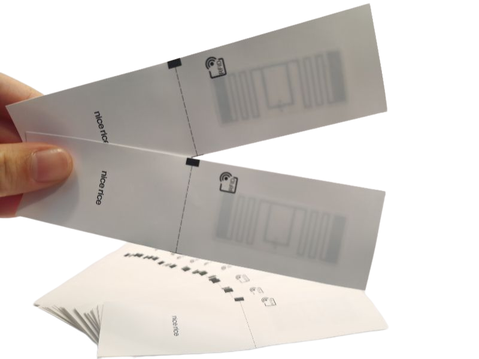

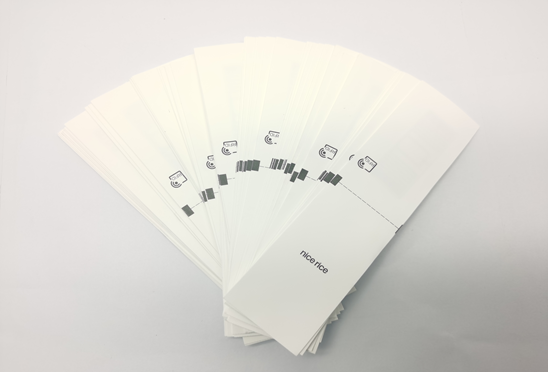

Printing & Encoding Example Of RFID Woven Labels
RFID Label Application
Custom Service
| Custom Chip： | NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 6040mm, 100100mm and more. |
RFID clothing electronic tags can help solve several problems in the clothing industry.
- Sales statistics;
- Inventory inspection, timely replenishment;
- Clothing tracking, convenient for finding goods at the counter;
- Clothing store reconciliation. These labels are made up of high-quality materials such as nylon, polyester, etc., ensuring their strength and durability. Polyester ribbons have a smooth, glossy surface. Usage: Labels are lightweight, soft and can be sewn. We can print fixed color or black patterns and texts on the surface of RFID textile labels, and print variable barcodes, two QR code or serial number.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
