RT-S114
Validate this construction on your material with samples before a volume order.

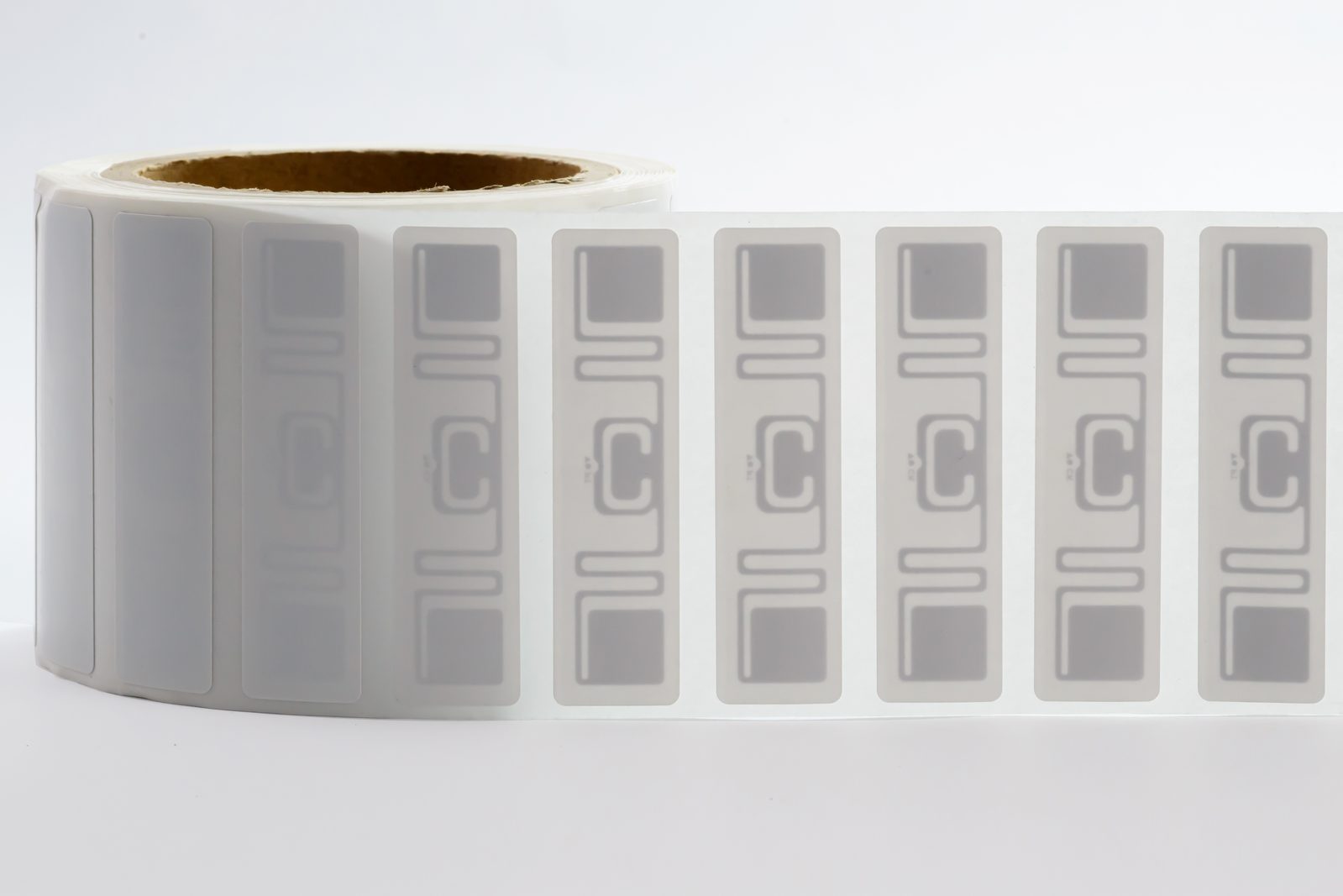

UHF RFID label · 76×20 mm · Impinj Monza R6 (RT-S114)
The ARC program is a certification for high-quality RFID performance inlays originating from the Auburn University RFID Laboratory. Currently, ARC certification has become the entry threshold for RFID projects for world’s leading apparel brands. This UHF RFID label adopts ARC certified RFID inlay, and the RFID reading range can reach more than 10 meters.
At a glance
- RFID Chip
- Impinj Monza R6
- Label Size
- 76mm*20mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 96 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-S114
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-S114 |
|---|---|
| RFID Chip | Impinj Monza R6 |
| Label Size | 76mm*20mm |
| Antenna Size | 70mm*14mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 96 bits EPC, 0 bit User Memory |
| Applications | Apparel&Footwear, Retail, Healthcare,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel&Footwear, Retail, Healthcare,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Product Description:
| Product Model： | L0760201401U |
|---|---|
| RFID Chip: | Impinj Monza R6 |
| Label Size： | 76mm*20mm |
| Antenna Size： | 70mm*14mm |
| Face Material: | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol： | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory： | 48 bits TID, 96 bits EPC, 0 bit User Memory |
| Applications: | Apparel&Footwear, Retail, Healthcare,General purpose |
| Key Benefits: | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size: | Yes |
|---|---|
| Printing: | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization: | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity： | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity： | 20～30℃ / 20%～60% RH |
| Shelf Life： | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity： | 2 kV (HBM) |
| Bending Diameter： | ＞ 50mm |
| Other application environment requirements: | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
