Validate this construction on your material with samples before a volume order.

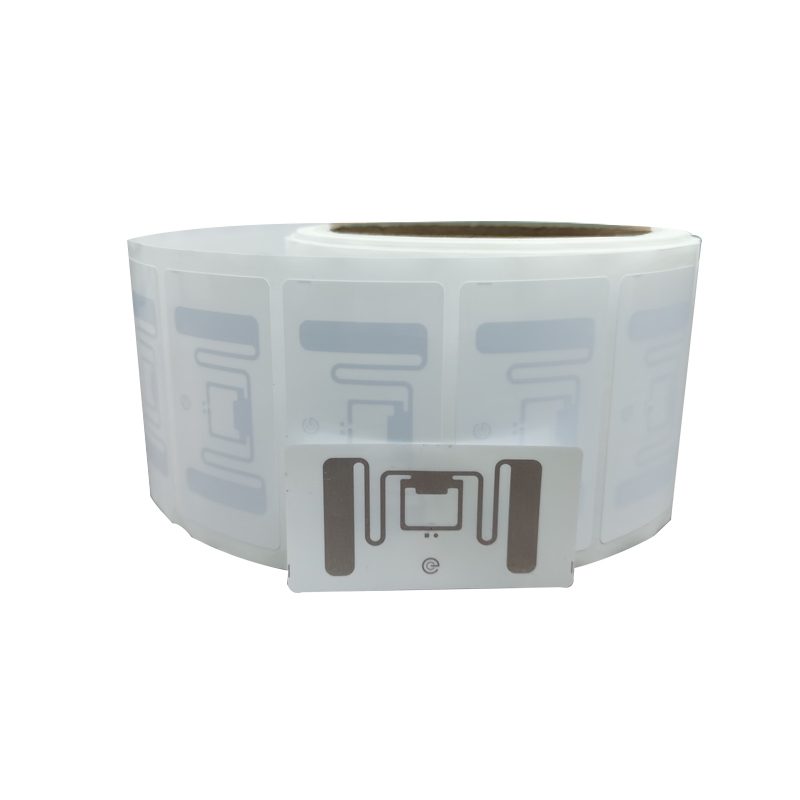

Asset UHF RFID label · 65×35 mm · Impinj M830 (RT-L152)

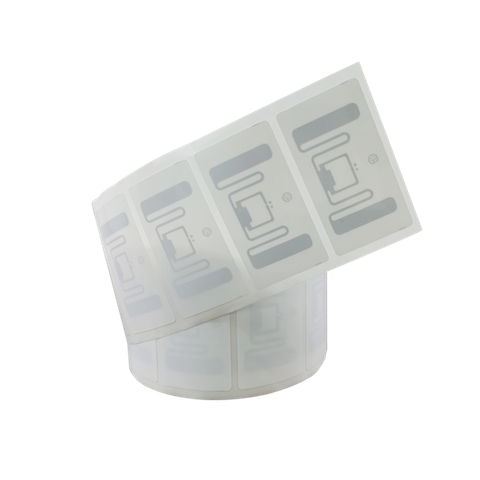

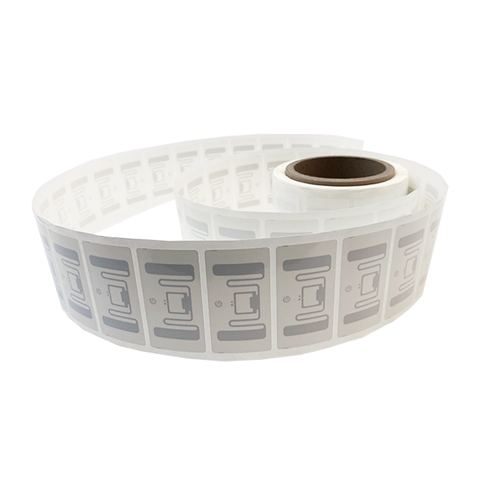

A 65x35 mm white PET UHF label for company asset tracking — a universal size for non-metallic surfaces, readable from over 20 feet. It ships with the Impinj M830 chip (alternatives can be fitted), stores a 128-bit EPC under ISO/IEC 18000-6C, and reads through a 50x30 mm antenna.
At a glance
- RFID Chip
- Impinj M830 (Can be customized)
- Label Size
- 65mm*35mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 128 bits EPC, 0 bit User Memory
- Face Material
- White PET
- Product Model
- RT-L152
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L152 |
|---|---|
| RFID Chip | Impinj M830 (Can be customized) |
| Label Size | 65mm*35mm |
| Antenna Size | 50mm*30mm |
| Face Material | White PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 128 bits EPC, 0 bit User Memory |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
Asset registers age badly: items move, labels fade, spreadsheets drift from reality. Tagging equipment with this 65x35 mm UHF label resets the relationship — each item carries a 128-bit EPC that a handheld reader picks up from more than 20 feet on non-metallic surfaces, so audits become walkarounds and missing items surface immediately.
The chip is Impinj’s M830, fitted as standard with alternatives available on request, speaking ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) through a 50x30 mm antenna. The white PET face takes durable thermal-transfer or silk-screen printing for asset numbers and ownership marks, and the label operates between 0 and 60 °C.
Ordering & customization
Rivotag encodes EPC/TID data to mirror your register, adjusts size, chip, face material and printing per batch, and sources everything from ISO 9001 partner lines. Free samples leave freight collect within 3-5 working days; production wraps 7-15 days after artwork approval; quotes return in under 24 hours.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
