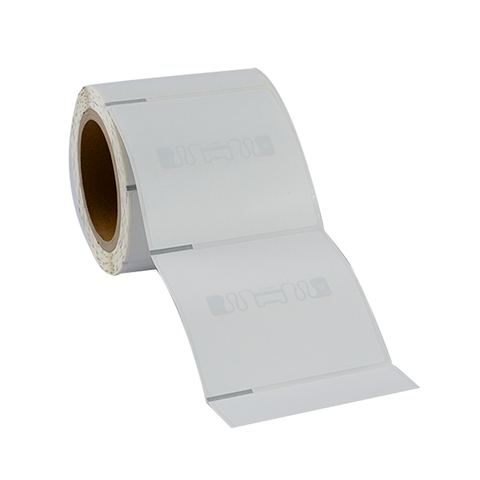

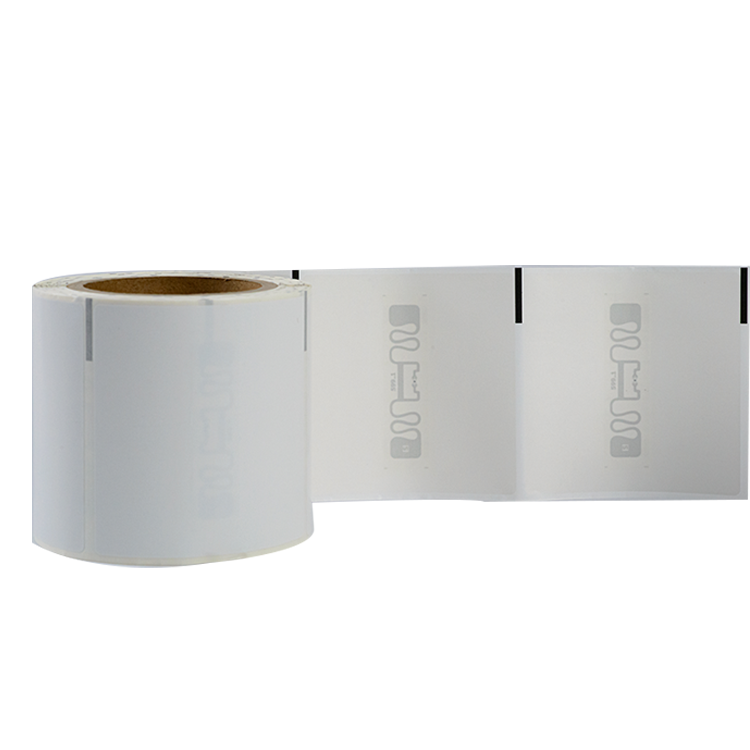

Logistics UHF RFID label · 100×100 mm · Impinj M730 (RT-L143)
A 100x100 mm square UHF label for supply chain and logistics work, offering room for barcodes, addresses and handling marks above an Impinj M730 inlay. The 80x20 mm antenna reads dependably on moving cartons, memory holds a 128-bit EPC with 48-bit TID, and hot-melt adhesive keeps its grip on rough corrugated surfaces.
At a glance
- RFID Chip
- Impinj M730
- Label Size
- 100mm*100mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-L143
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-L143 |
|---|---|
| RFID Chip | Impinj M730 |
| Label Size | 100mm*100mm |
| Antenna Size | 80mm*20mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Applications | Supply Chain & Logistics, General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Supply Chain & Logistics, General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Corrugated board is a hostile landing zone for adhesives — dusty, fibrous, sometimes cold. This 4x4 inch (100x100 mm) logistics label counters with hot-melt glue that bites quickly and keeps holding on rough surfaces and in low-temperature applications, so the tag still answers at the far end of the route.
Identification runs through an Impinj M730 chip on an 80x20 mm antenna: 128-bit EPC, 48-bit TID and ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) compliance for high-volume portal reads. The generous square face leaves space for addresses, barcodes and compliance printing via thermal transfer or silk screen, on art paper, PET or PP synthetic stock. Operation is rated 0 to 60 °C.
Ordering & customization
Rivotag adapts chip, dimensions, face material, printing and EPC/TID encoding to each project and books production on ISO 9001 partner lines, typically finishing 7-15 days after artwork approval. Free samples leave in 3-5 working days on a freight-collect basis, and quotes come back within 24 hours.
