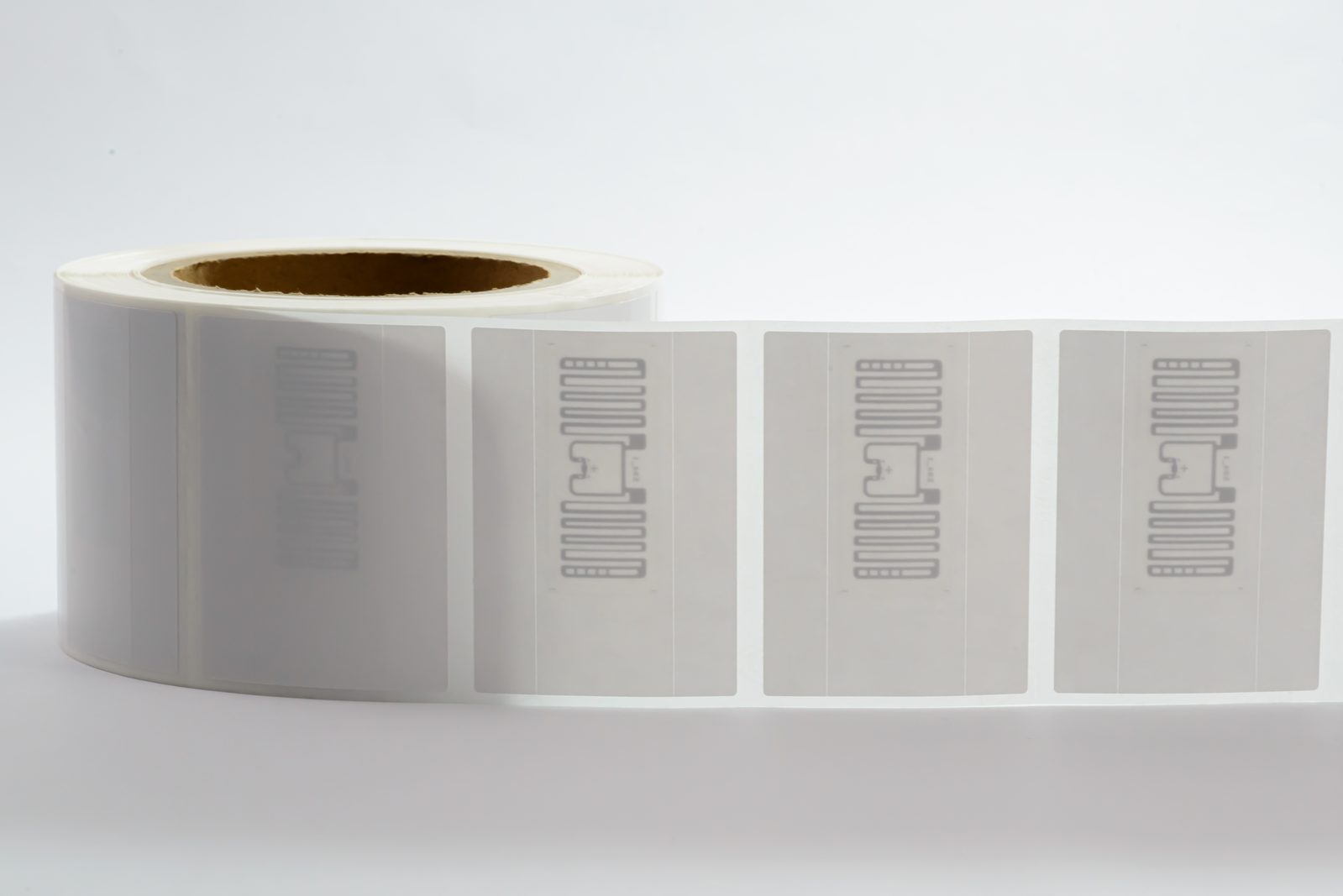

Logistics UHF RFID tag · 101×38 mm · NXP UCODE 8 (RT-L144)
Made for supply chain and logistics management, this 101x38 mm UHF label combines an NXP UCODE 8 chip with a broad 94x24 mm antenna for long reading distances and clean captures across closely stacked freight. It carries a 128-bit EPC and 48-bit TID under ISO/IEC 18000-6C, with art paper, PET or PP synthetic face options.
At a glance
- RFID Chip
- NXP UCODE 8
- Label Size
- 101mm*38mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bits User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-L144
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L144 |
|---|---|
| RFID Chip | NXP UCODE 8 |
| Label Size | 101mm*38mm |
| Antenna Size | 94mm*24mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bits User Memory |
| Applications | Supply Chain & Logistics, General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Supply Chain & Logistics, General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Freight rarely lines up politely for a scanner. Totes nest, cartons stack, pallets shrink-wrap into solid blocks — and this 101x38 mm UHF label is built to be read through all of it. Its NXP UCODE 8 chip drives a 94x24 mm antenna with strong directional sensitivity, so even densely packed tags answer individually.
Compliance with ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) keeps it compatible with existing warehouse readers, while the 128-bit EPC and 48-bit TID give every unit a serialised identity for track-and-trace. The face takes thermal-transfer or silk-screen print on art paper, PET or PP synthetic stock, and the label operates from 0 to 60 °C.
Ordering & customization
Formats flex to fit your line: chip, dimensions, face material, printing and EPC/TID encoding are all open for adjustment, with output from ISO 9001 partner lines. We dispatch free samples freight collect in 3-5 working days, complete production 7-15 days after artwork approval, and return quotes within 24 hours.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
