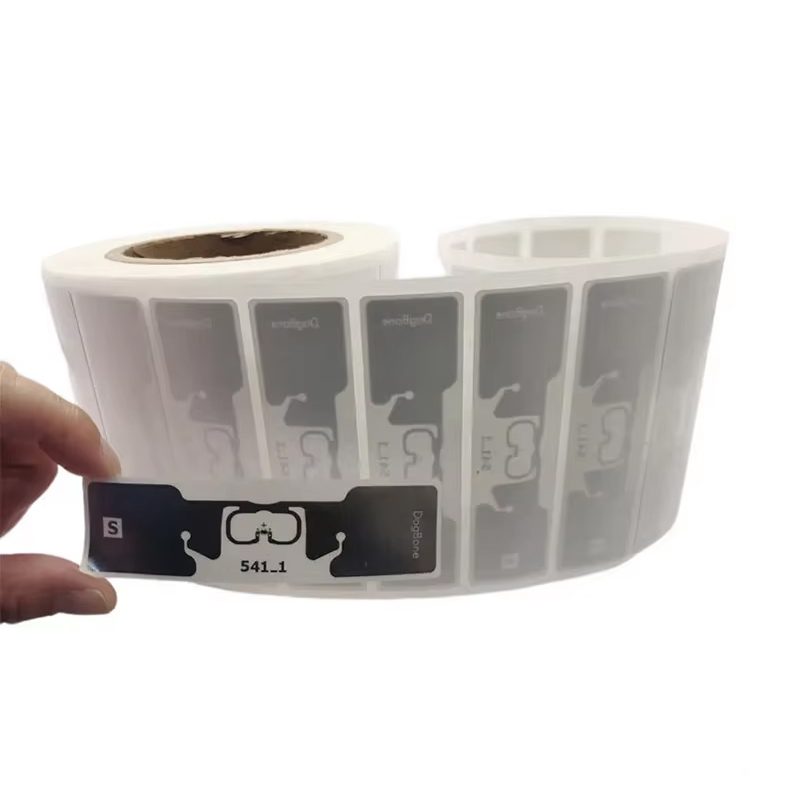

Race Timing UHF RFID tag · 97×27 mm · NXP UCODE 8 (RT-S140)
A 97x27 mm adhesive UHF tag built for marathon and race timing as well as logistics and healthcare tracking. The dogbone-style 94x24 mm antenna and NXP UCODE 8 chip deliver reads of up to 10 meters depending on the reader, with strong anti-collision behaviour when hundreds of runners cross a mat together.
At a glance
- RFID Chip
- NXP UCODE 8
- Label Size
- 97mm*27mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-S140
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-S140 |
|---|---|
| RFID Chip | NXP UCODE 8 |
| Label Size | 97mm*27mm |
| Antenna Size | 94mm*24mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Applications | Logistics,Supply chain, Healthcare,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Logistics,Supply chain, Healthcare,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
A finish line gives you one chance to read every tag. This 97x27 mm sticker is specified for exactly that moment: an NXP UCODE 8 chip on a wide 94x24 mm dogbone-style antenna, reaching up to 10 meters depending on reader setup and holding its own when a dense pack of runners hits the timing mat at once.
The same qualities travel well beyond sport. With ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) compliance, a 128-bit EPC and 48-bit TID, it covers logistics, supply chain and healthcare identification wherever long range and clean anti-collision reads matter. Faces come in art paper, PET or PP synthetic, operating from 0 to 60 °C.
Ordering & customization
Race numbers, sponsor artwork and event branding go straight onto the face via thermal transfer or silk screen, with EPC/TID encoding matched to your timing software. Rivotag ships free samples freight collect in 3-5 working days, completes orders 7-15 days after artwork approval on ISO 9001 partner lines, and answers quotes within 24 hours.
