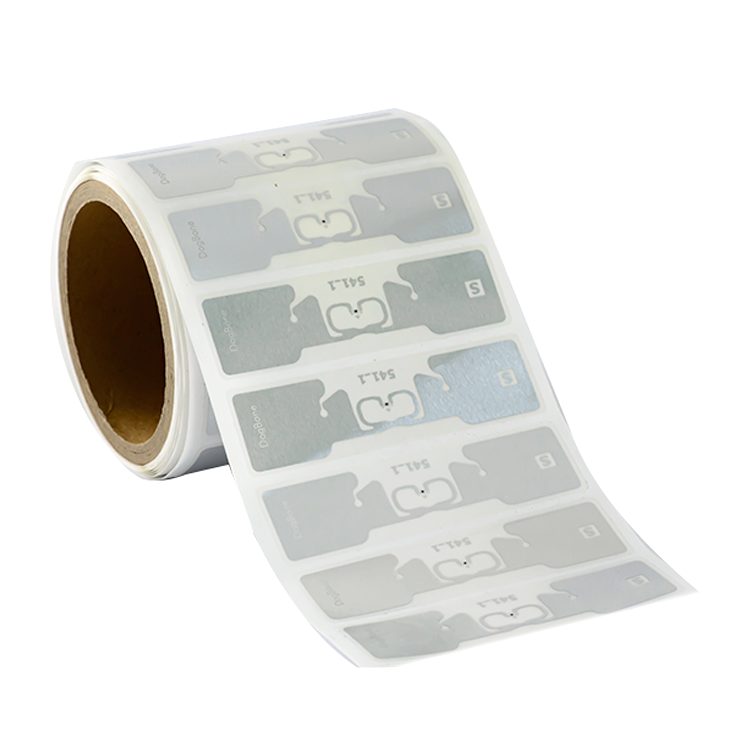

Race Timing Clear PET UHF RFID label · 97×27 mm · NXP UCODE 8 (RT-S142)

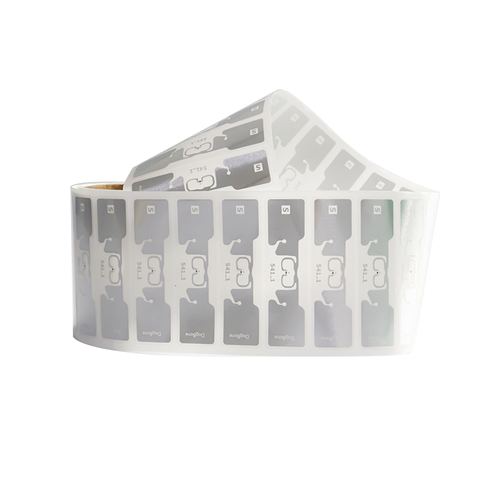

A transparent PET UHF label, 97x27 mm, that disappears against race bibs, equipment housings and printed surfaces while shrugging off rain and sweat. Its dogbone-style 94x24 mm antenna and NXP UCODE 8 chip achieve reads to around 10 meters depending on the reader, with a 128-bit EPC under ISO/IEC 18000-6C.
At a glance
- RFID Chip
- NXP UCODE 8
- Label Size
- 97mm*27mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- Transparent PET
- Product Model
- RT-S142
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-S142 |
|---|---|
| RFID Chip | NXP UCODE 8 |
| Label Size | 97mm*27mm |
| Antenna Size | 94mm*24mm |
| Face Material | Transparent PET |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Applications | Asset Management, Strong stickiness or harsh environment |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Asset Management, Strong stickiness or harsh environment
- Key Benefits
- Fast reading,Multi-reading, Traceability
Some tags need to vanish. Printed bib designs, sponsor graphics and finished equipment surfaces all argue against a white sticker — so this 97x27 mm label uses transparent PET, letting whatever sits beneath show through while adding water resistance for rain-soaked events and wet work areas.
Function stays perfectly visible to readers, though. An NXP UCODE 8 chip on a 94x24 mm dogbone antenna delivers reads to roughly 10 meters depending on the reader, with fast anti-collision capture on ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2). Memory holds a 128-bit EPC and 48-bit TID, and operation covers 0 to 60 °C. Race timing is the headline act, but asset marking on glass, acrylic or finished goods benefits from the same discretion.
Ordering & customization
Rivotag customizes size, chip, face material and printing, encodes EPC/TID data before shipping, and has production run on ISO 9001 partner lines. Free samples travel freight collect in 3-5 working days; volume orders follow 7-15 days after artwork approval, with quotes answered within 24 hours.
