Validate this construction on your material with samples before a volume order.

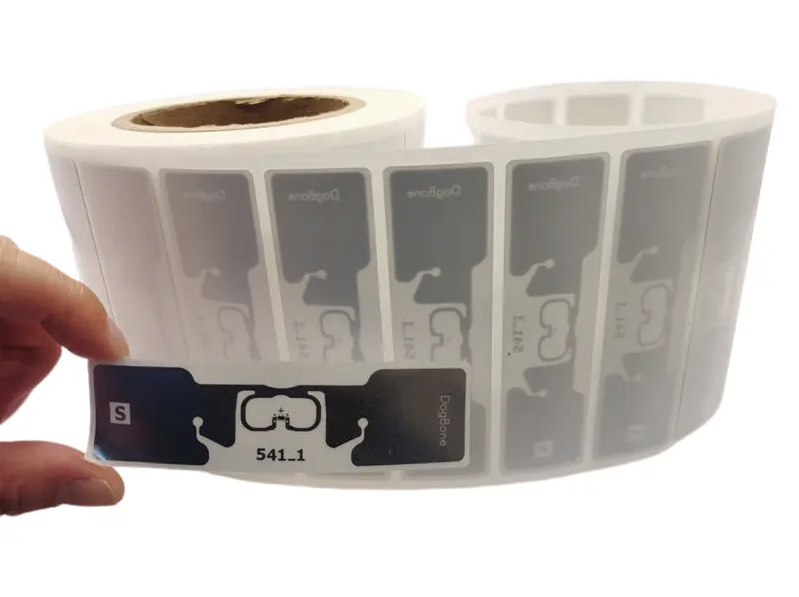

Race Timing UHF RFID tag · 97×27 mm · NXP UCODE 8 (RT-S141)
Designed around a dogbone-format inlay, this 97x27 mm UHF sticker reads at more than 10 meters, which is why timing systems fix it to race bibs and shoe tags. An NXP UCODE 8 chip provides the 128-bit EPC, the antenna measures 94x24 mm, and the same construction serves supply chain and healthcare tracking.
At a glance
- RFID Chip
- NXP UCODE 8
- Label Size
- 97mm*27mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-S141
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-S141 |
|---|---|
| RFID Chip | NXP UCODE 8 |
| Label Size | 97mm*27mm |
| Antenna Size | 94mm*24mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Applications | Logistics,Supply chain, Healthcare,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Logistics,Supply chain, Healthcare,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Timing a race is a worst-case RFID problem: thousands of tags, seconds of window, zero tolerance for misses. This 97x27 mm sticker was specified against that problem. Its 94x24 mm dogbone antenna and NXP UCODE 8 chip read from more than 10 meters, with the anti-collision headroom to log tight packs of finishers cleanly.
Away from the start line, it does ordinary work just as well — logistics, supply chain and healthcare tagging under ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2), carrying a 128-bit EPC and 48-bit TID. Choose art paper for economical disposable bib tags, or PET and PP synthetic faces where weather resistance counts. Operating range is 0 to 60 °C.
Ordering & customization
We supply this tag with event or brand printing — thermal transfer, silk screen and more — and pre-encoded EPC/TID data on request. Samples are free and dispatched freight collect in 3-5 working days; mass production wraps 7-15 days after artwork approval on ISO 9001 partner lines. Quotes return within 24 hours.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
