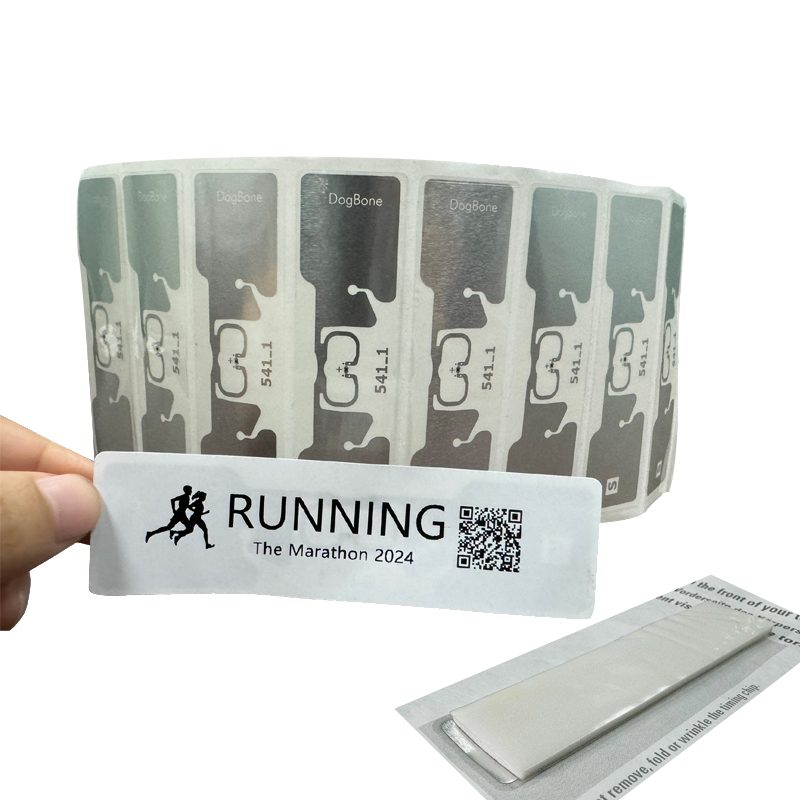

Race Timing Dogbone Inlay UHF RFID tag · 97×27 mm · NXP UCODE 8 (RT-S125)
Peel-and-stick UHF timing tag built on the widely deployed Smartrac Dogbone inlay with NXP UCODE 8 chip, reading up to 10 meters depending on the reader. Double-layer foam more than 2 mm thick spaces the antenna away from the athlete's body and reinforces waterproofing — ready for marathons, triathlons and cycling events.
At a glance
- RFID Chip
- NXP Ucode 8 (Can be customized)
- Label Size
- 97mm*27mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bit TID, 128bit EPC, 0 bit User Memory
- Product Model
- RT-S125
- Antenna Size
- 94mm*24mm(Smartrac Dogbone)
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S125 |
|---|---|
| RFID Chip | NXP Ucode 8 (Can be customized) |
| Label Size | 97mm*27mm |
| Antenna Size | 94mm*24mm(Smartrac Dogbone) |
| Tag Structure | White PET + >2mmT Foam + Inlay + Release Liner |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bit TID, 128bit EPC, 0 bit User Memory |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Timing management for sports events such as marathons, triathlons, cycling, etc.
- Key Benefits
- waterproof,accurate reading even in challenging environments
Timing crews trust inlays with a track record, and few carry a longer one than the Smartrac Dogbone. This 97×27 mm tag mounts that proven 94×24 mm antenna with an NXP UCODE 8 chip, holding read ranges up to 10 meters (reader dependent) through the congestion of a mass start.

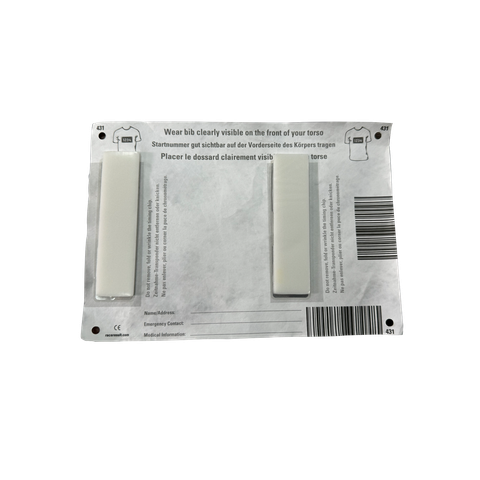

Between the waterproof white PET face and the release liner sits a double-layer foam core exceeding 2 mm. That spacing does two jobs at once: it keeps the antenna clear of the athlete’s body, which would otherwise absorb the signal, and it adds a buffer against rain and sweat. Application stays deliberately simple — peel the liner, press the tag onto the back of the race bib. Protocol is ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2, with a 128-bit EPC and 48-bit TID.
Ordering and customization
We supply event quantities from ISO 9001 partner lines with chip, size, printing and EPC/TID encoding matched to your start list. Quotes return within 24 hours; free samples ship freight collect in 3–5 working days, and production follows 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
