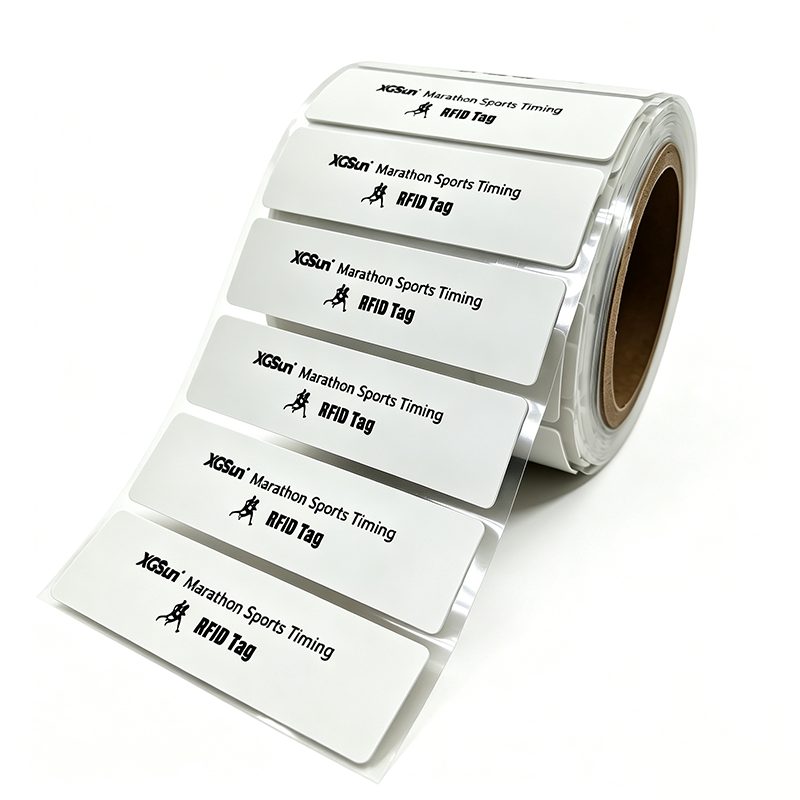

Race Timing UHF RFID label · 97×27 mm · Impinj M830 (RT-S120)
Foam-backed UHF timing label for marathon bibs, combining a film-coated PP face with 1 mm of lightweight foam that wears comfortably and resists bending and tearing. The 94×24 mm antenna and Impinj M830 chip (customizable) deliver EPCglobal Class 1 Gen 2 performance with a 128-bit EPC and 48-bit TID, while the PET liner resists water and moisture.
At a glance
- RFID Chip
- Impinj M830(Can be customized)
- Label Size
- 97mm*27mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bit TID, 128bit EPC, 0 bit User Memory
- Product Model
- RT-S120
- Antenna Size
- 94mm*24mm
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S120 |
|---|---|
| RFID Chip | Impinj M830(Can be customized) |
| Label Size | 97mm*27mm |
| Antenna Size | 94mm*24mm |
| Tag Structure | PP + 1mmT Foam + Inlay + Release Liner |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bit TID, 128bit EPC, 0 bit User Memory |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |

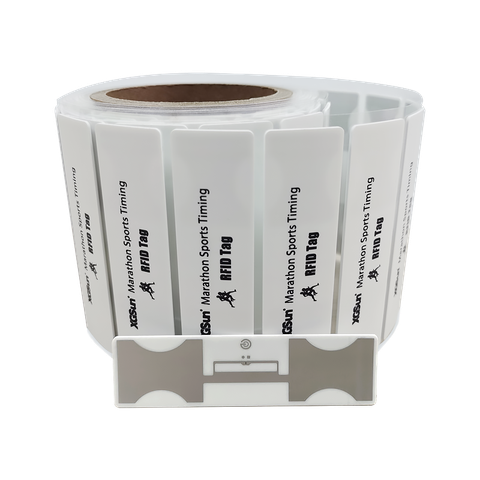

Race timing gives a tag one chance per runner, so construction matters as much as silicon. This 97×27 mm foam tag stacks a film-coated PP face — ultra-fine matte texture, smooth to the touch, printable in two colors — over 1 mm of lightweight foam and a water-resistant PET release liner. The result bends, flexes and survives a rainy half marathon without tearing.
Timing data rides on an Impinj M830 chip (swappable on request) and a 94×24 mm antenna running ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2. A 128-bit EPC and 48-bit TID keep every participant uniquely identified across mats and gantries, with rated operation from 0 to 60 °C.
Ordering and customization
We supply these tags event-ready from ISO 9001 partner lines: size, chip, printing and EPC/TID encoding are all customizable, so tag numbers can match your registration list out of the box. Quotes return within 24 hours; free samples ship freight collect in 3–5 working days, and full production takes 7–15 days after artwork approval.
