Validate this construction on your material with samples before a volume order.

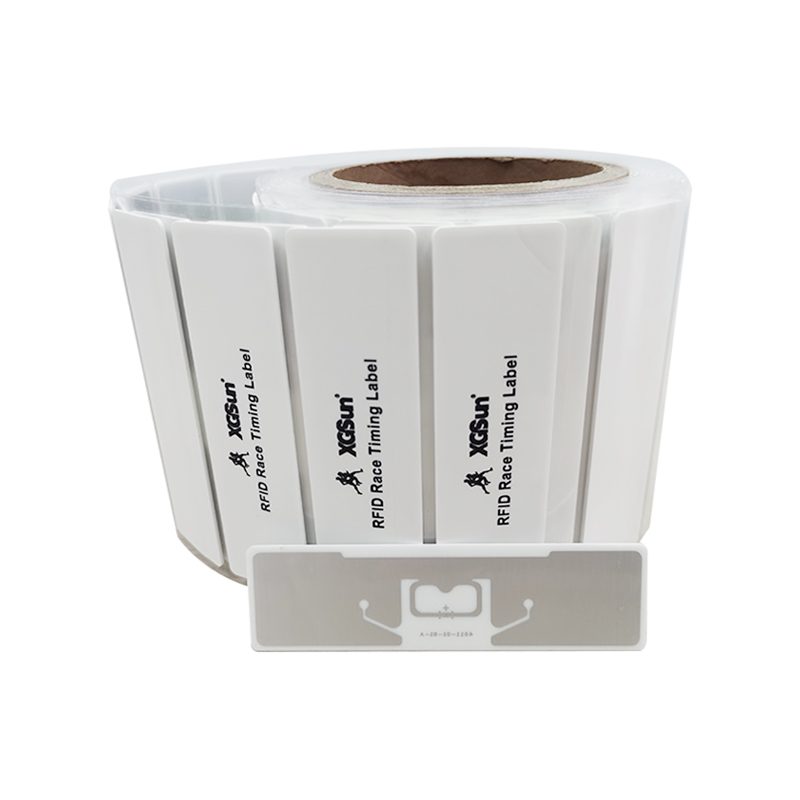

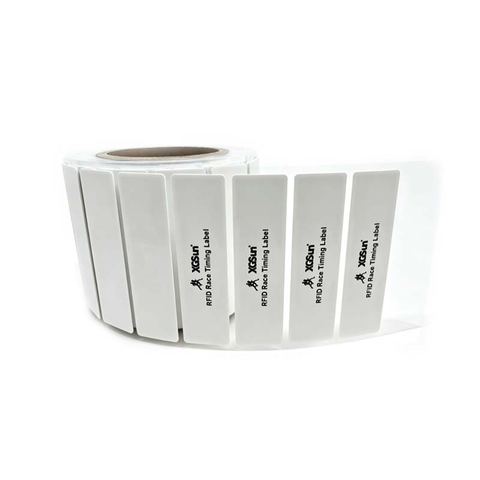

Race Timing UHF RFID tag · 97×27 mm (RT-S132)
Race Timing UHF RFID tag, 97×27 mm format. Confirm the selected chip, encoding and application requirements against the detailed specification before ordering. Chip availability and memory depend on the approved configuration.
At a glance
- RFID Chip
- NXP Ucode8 (Can be customized)
- Label Size
- 97mm*27mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bit TID, 128bit EPC, 0 bit User Memory
- Product Model
- RT-S132
- Antenna Size
- 94mm*24mm
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-S132 |
|---|---|
| RFID Chip | NXP Ucode8 (Can be customized) |
| Label Size | 97mm*27mm |
| Antenna Size | 94mm*24mm |
| Tag Structure | PP + 1mmT Foam + Inlay + Release Liner |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bit TID, 128bit EPC, 0 bit User Memory |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
Race calendars cross borders; timing tags should too. Tuned across the full 860–960 MHz band, this 97×27 mm foam label works with chip-timing infrastructure worldwide — the same tag stock serves a domestic road race and an international marathon without re-engineering.

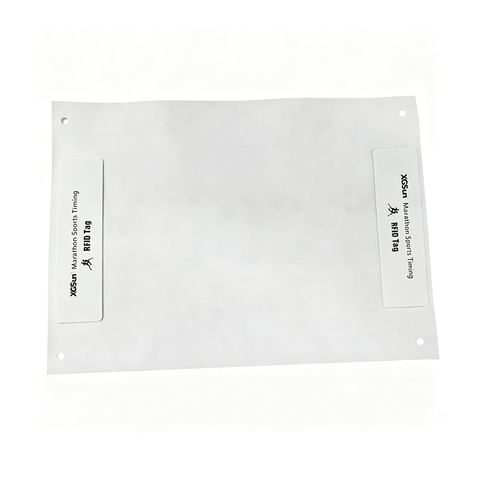

Application is a two-second job per runner: peel the release liner, press onto the bib. The build layers a printable PP face over 1 mm of foam and the UHF inlay, with an NXP UCODE 8 chip (interchangeable on request) providing a 128-bit EPC and 48-bit TID over ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2. For organizers who prefer one delivery instead of three, we also supply a complete bib kit — number panel, timing tag and accessories combined.
Ordering and customization
Rivotag produces event orders on ISO 9001-audited partner lines, customizing size, chip, printing and EPC/TID encoding to your start list. A quote answers within 24 hours; free samples travel freight collect in 3–5 working days, and mass production completes 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
