UHF eco RFID label · 54×34 mm · Impinj M730 (RT-E101)
An eco-conscious 54x34 mm UHF label that replaces plastic film with a sustainable paper substrate and a conductive-ink printed antenna, making the finished tag easy to recycle. Chip options span H47, U8 and Impinj M730 under ISO/IEC 18000-6C, and the adhesive meets FDA standards for direct food contact.
At a glance
- RFID Chip
- H47/ U8 / M730/ etc.
- Label Size
- 54*34mm, Customizable size
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class Gen 2
- Face Material
- Sustainable paper
- Product
- UHF RFID ECO Label
- Antenna Size
- 50*30mm, Customizable size
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product | UHF RFID ECO Label |
|---|---|
| RFID Chip | H47/ U8 / M730/ etc. |
| Label Size | 54*34mm, Customizable size |
| Antenna Size | 50*30mm, Customizable size |
| Face Material | Sustainable paper |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class Gen 2 |
| Applications | Food control, need sustainable development |
| Key Benefits | Eco-friendly,Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Food control, need sustainable development
- Key Benefits
- Eco-friendly,Fast reading,Multi-reading, Traceability

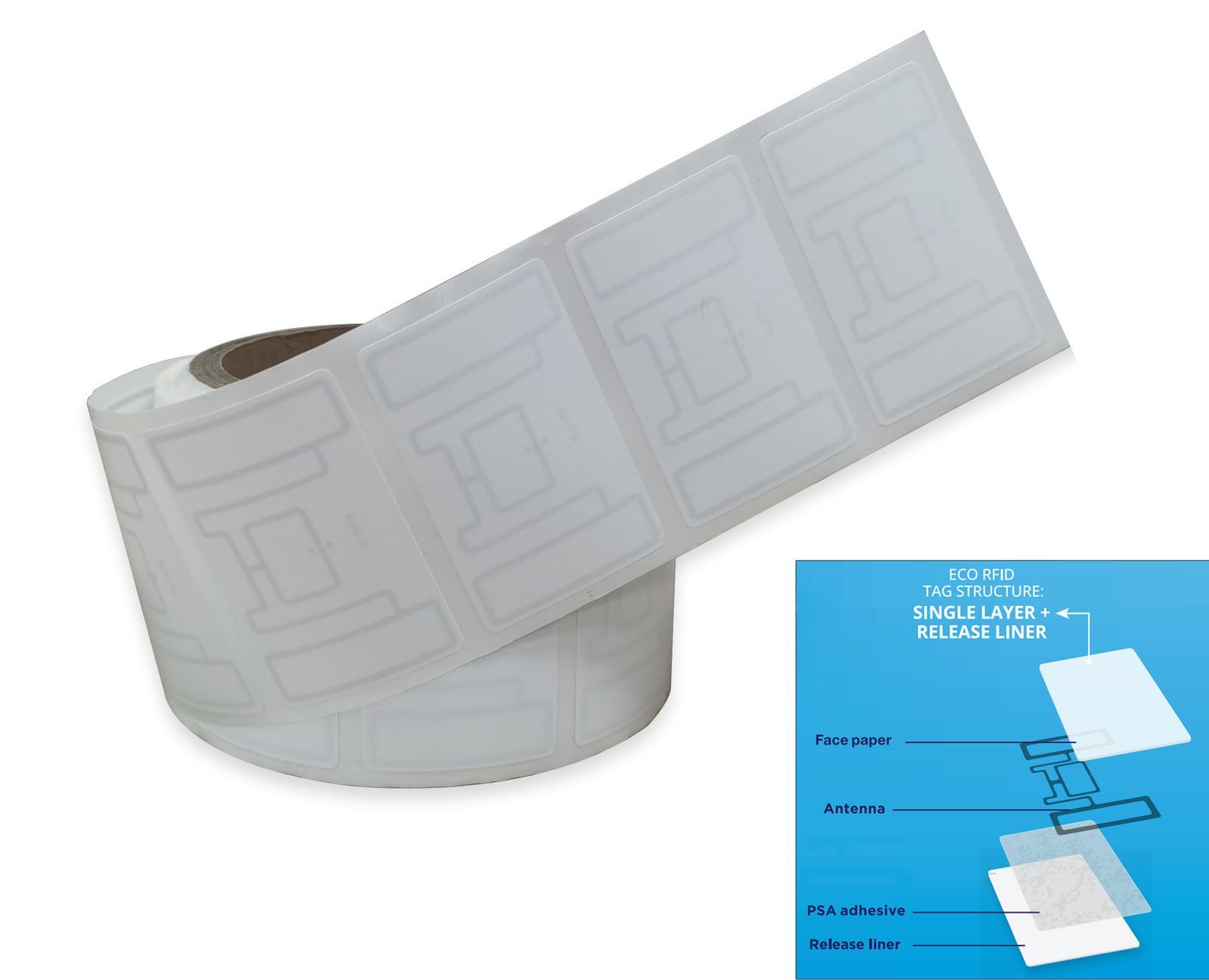

Sustainability targets now reach all the way down to the price label. This 54x34 mm eco UHF label answers with a construction that omits the usual plastic layers: the paper substrate itself serves as the face material, and the antenna is printed directly onto it in conductive ink. The finished tag recycles with paper waste instead of contaminating it.
Performance is not the trade-off it sounds like. Chips can be specified as H47, U8, Impinj M730 or other options, all reading to ISO/IEC 18000-6C so existing reader fleets need no changes. The standard 50x30 mm antenna and 54x34 mm die-cut are both customizable, the adhesive meets FDA standards for direct food contact, and operation holds from 0 to 60 °C — a natural fit for food control programs and retailers with plastic-reduction commitments.
Ordering & customization
Rivotag supplies samples free of charge, freight collect, within 3-5 working days; mass production on ISO 9001 partner lines takes 7-15 days after artwork approval. Printing, EPC/TID encoding, chip and dimensions are all configurable, and quotes arrive within 24 hours.
