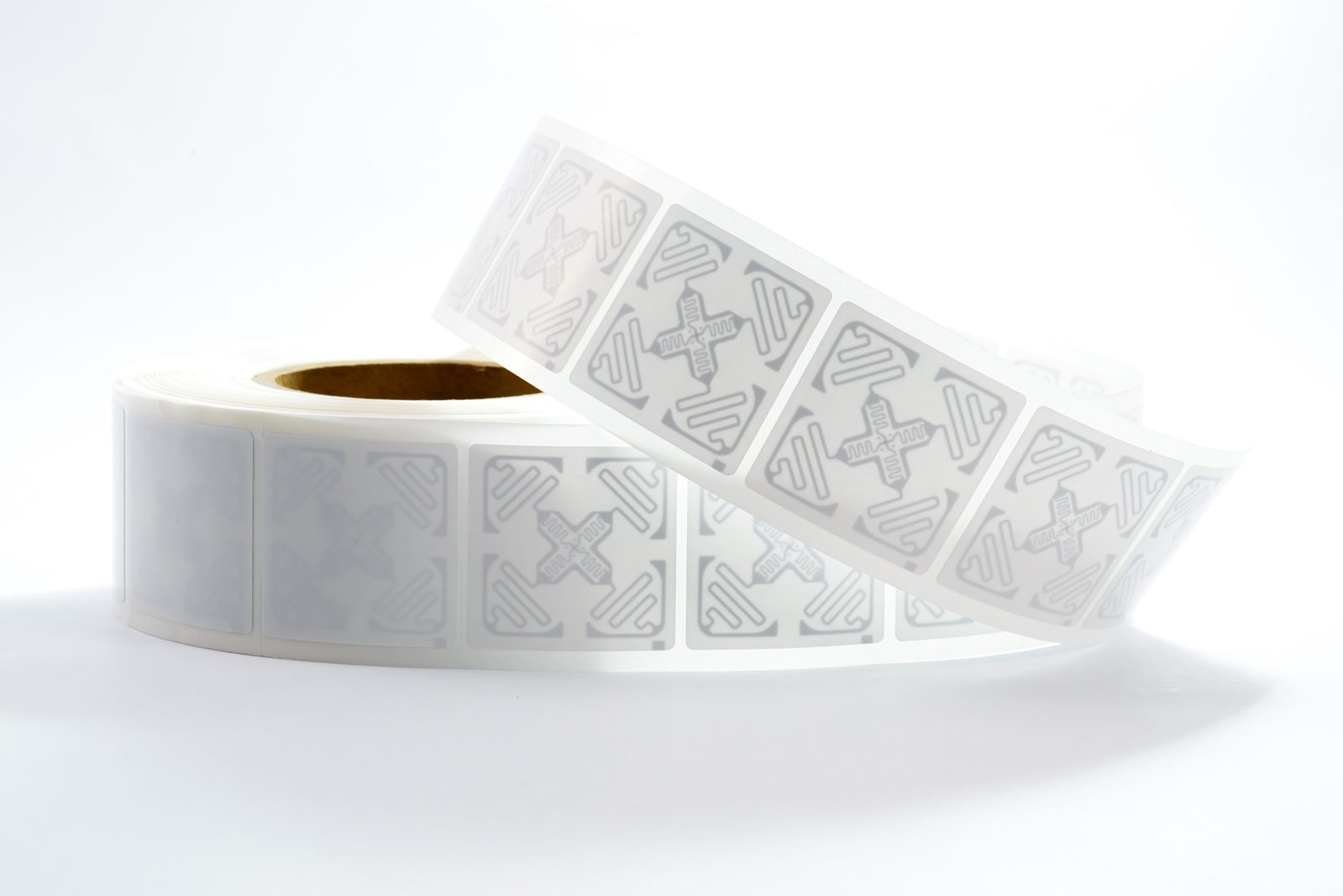

UHF RFID label · 50×50 mm (RT-L118)
A 50 mm square UHF label supplied for retail, apparel and general tracking where read angle cannot be controlled. Its 44×44 mm H47 antenna gives near-omnidirectional response on cartons, plastics and wood, while the Monza 4QT chip pairs a 128-bit EPC with generous 512-bit user memory for item-level data.
At a glance
- RFID Chip
- Imipnj Monza 4QT
- Label Size
- 50mm*50mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 512 bits User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material.
- Product Model
- RT-L118
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L118 |
|---|---|
| RFID Chip | Imipnj Monza 4QT |
| Label Size | 50mm*50mm |
| Antenna Size | 44mm*44mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material. |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 512 bits User Memory |
| Applications | Apparel, Retail, General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel, Retail, General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Most retail labels give you an EPC number and nothing more. This square 50×50 mm label is the exception: its Impinj Monza 4QT chip carries 512 bits of writable user memory on top of the 128-bit EPC and 48-bit TID, so inspection dates, batch codes or authentication data can live on the tag itself rather than only in a remote database.
Reading performance holds up too. The 44×44 mm H47 antenna is designed for 360-degree response, keeping tags visible on cardboard cartons, plastic totes and wooden fixtures regardless of how they face the reader. The label follows ISO/IEC 18000-6C / EPCglobal Class 1 Gen 2, offers art paper, PET or PP synthetic faces, and operates from 0 to 60 °C.
Where it fits
Brand protection, supply chain management and store-floor inventory across retail, apparel and healthcare settings. We supply it built to spec on ISO 9001-certified partner lines — chip, size, face material, printing and EPC/TID encoding included — with quotes within 24 hours, free samples (freight collect) in 3–5 working days, and production in 7–15 days after artwork approval.
