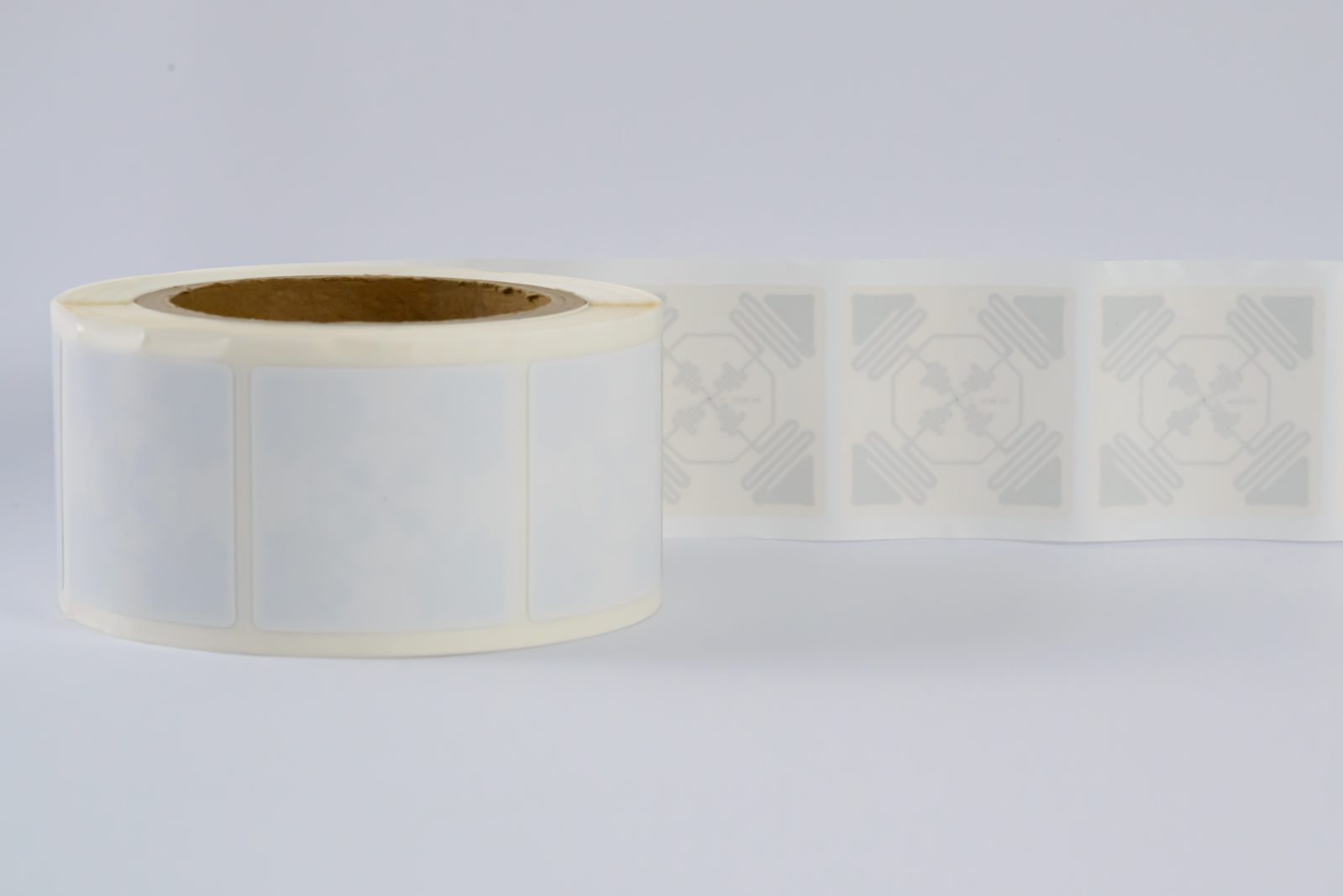

UHF RFID label · 50×50 mm (RT-L146)
A 50x50 mm square UHF label whose true three-dimensional antenna design reads from any orientation — helpful when tagged goods tumble into totes at random angles. The Kiloway Only2 chip is read-only by design, giving each item a fixed, tamper-resistant identity under ISO/IEC 18000-6C for apparel and general retail use.
At a glance
- RFID Chip
- Kiloway Only2
- Label Size
- 50mm*50mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- Only read
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material.
- Product Model
- RT-L146
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product Model | RT-L146 |
|---|---|
| RFID Chip | Kiloway Only2 |
| Label Size | 50mm*50mm |
| Antenna Size | 45mm*45mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material. |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | Only read |
| Applications | Apparel, Retail, General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel, Retail, General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Tag orientation is the silent killer of read rates: a label folded away from the antenna simply vanishes. This 50x50 mm square label counters with true-3D antenna technology — a 45x45 mm structure engineered for 360-degree readability, so items tossed into bins, stacked flat or hung sideways all report in.
The chip is a Kiloway Only2, deliberately read-only: its identity is fixed and cannot be overwritten, a useful property when tags must resist tampering or accidental re-encoding. It answers standard ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) readers, wears art paper, PET or PP synthetic faces, and operates from 0 to 60 °C across apparel and general retail settings.
Ordering & customization
Size, face stock and printing remain customizable even with the fixed-ID chip, and alternative chips can be quoted where writable EPCs are needed. Free samples ship freight collect in 3-5 working days; production concludes 7-15 days after artwork approval on ISO 9001 partner lines, and quotes return within 24 hours.
