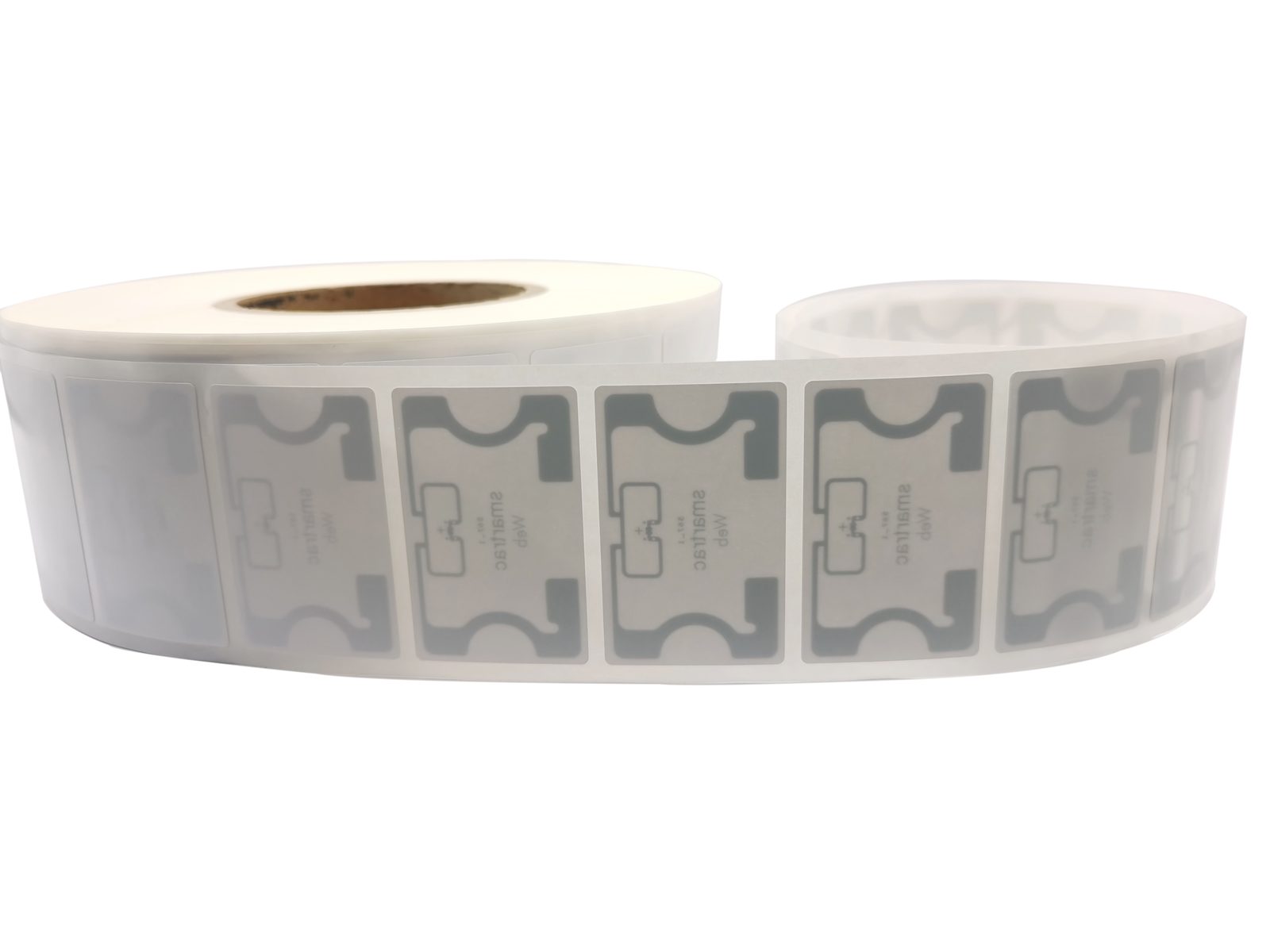

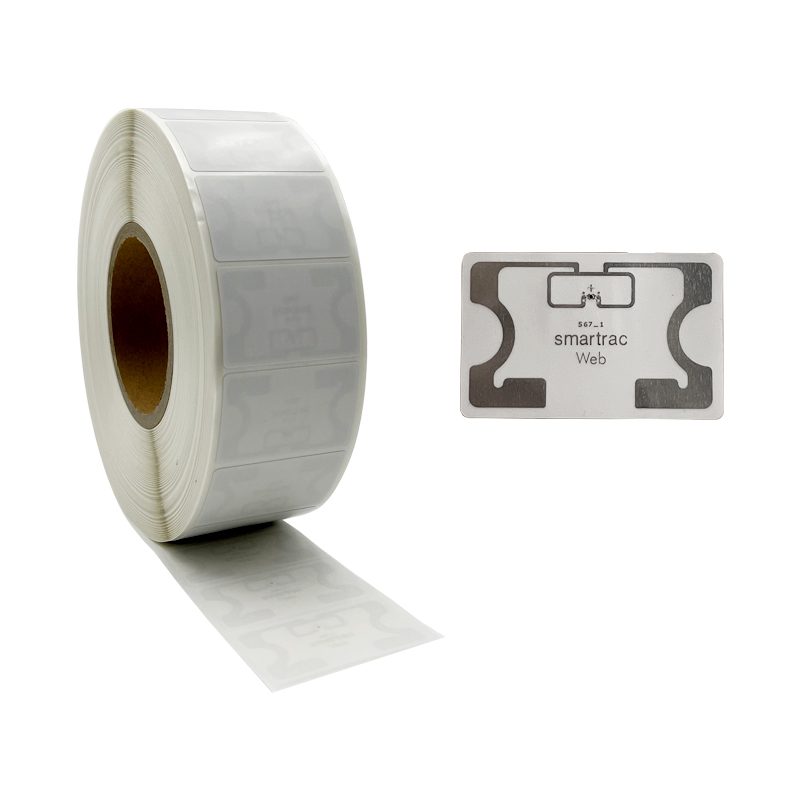

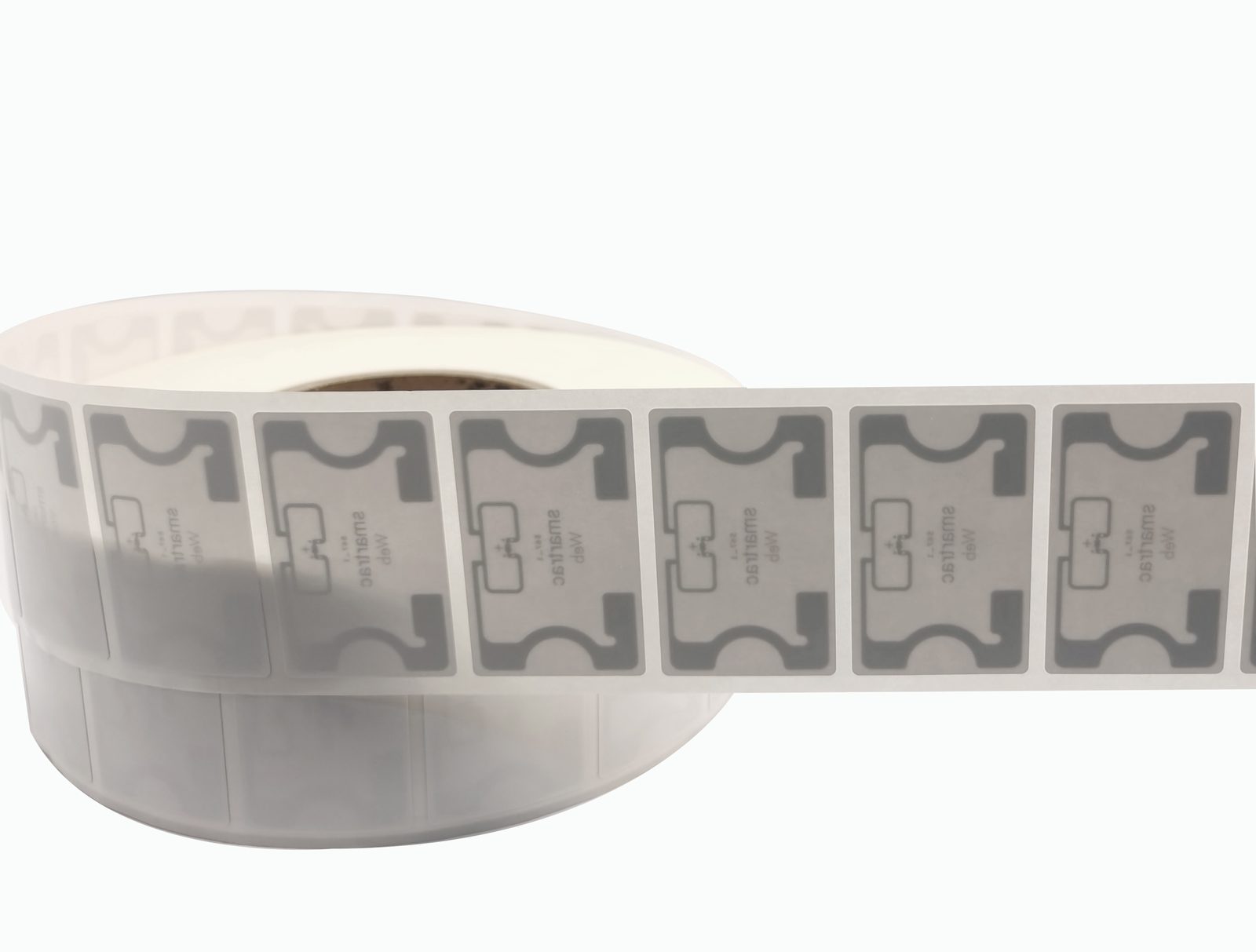

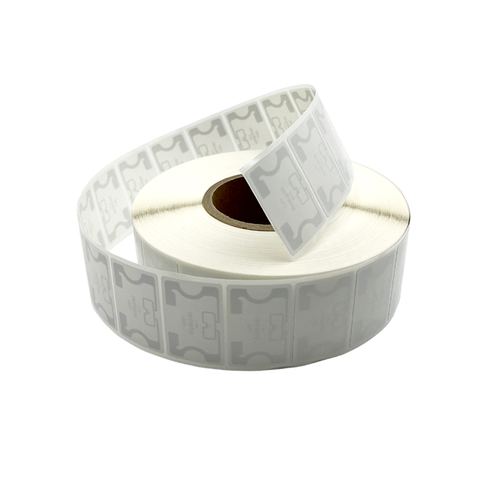

UHF RFID tag · 53×33 mm · NXP UCODE 8 (RT-S145)
The ARC program is a certification for high-quality RFID performance inlays originating from the Auburn University RFID Laboratory. Currently, ARC certification has become the entry threshold for RFID projects for world’s leading apparel brands . The RFID sticker tags use AD Web inlay and environmentally friendly glue. It is usually affixed to shoe boxes or used with 63*40mm size clothing RFID hang tags.
At a glance
- RFID Chip
- NXP UCODE 8
- Label Size
- 53mm*33mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 48 bits TID, 128 bits EPC, 0 bit User Memory
- Face Material
- Art-Paper, PET，PP synthetic paper & Other Customize Face Material
- Product Model
- RT-S145
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Product Description
| Product Model | RT-S145 |
|---|---|
| RFID Chip | NXP UCODE 8 |
| Label Size | 53mm*33mm |
| Antenna Size | 50mm*30mm |
| Face Material | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Approved By Walmart | YES |
| Applications | Supermarkets, Apparel&Footwear, Retail,General purpose |
| Key Benefits | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Approved By Walmart
- YES
- Applications
- Supermarkets, Apparel&Footwear, Retail,General purpose
- Key Benefits
- Fast reading,Multi-reading, Traceability
Product Description:
| Product Model： | L0530331502U |
|---|---|
| RFID Chip: | NXP UCODE 8 |
| Label Size： | 53mm*33mm |
| Antenna Size： | 50mm*30mm |
| Face Material: | Art-Paper, PET，PP synthetic paper & Other Customize Face Material |
| Protocol： | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory： | 48 bits TID, 128 bits EPC, 0 bit User Memory |
| Approved By Walmart: | YES |
| Applications: | Supermarkets, Apparel&Footwear, Retail,General purpose |
| Key Benefits: | Fast reading,Multi-reading, Traceability |
Customized services Details
| Customizable Label Size: | Yes |
|---|---|
| Printing: | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization: | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity： | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity： | 20～30℃ / 20%～60% RH |
| Shelf Life： | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity： | 2 kV (HBM) |
| Bending Diameter： | ＞ 50mm |
| Other application environment requirements: | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
Product Application Guide
This RFID Inlay has been certified by the Auburn University Laboratory for RFID performance, the For a retail RFID program, provide the required inlay specification, tag placement instructions and encoding scheme. Confirm the exact inlay’s current program approval with your trading partner before production. Rivotag can review label size, printing and encoding requirements against the selected inlay.

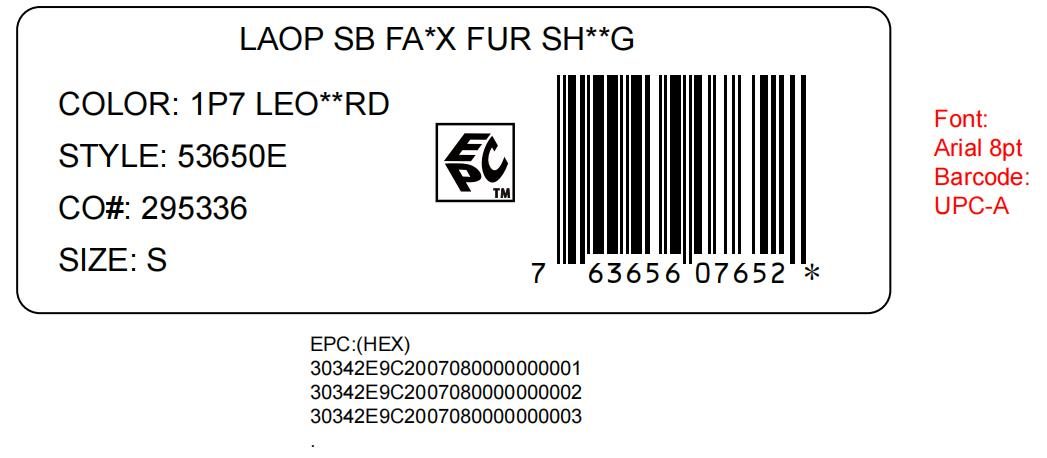

Printing & Encoding Example Of Walmart RFID Label
