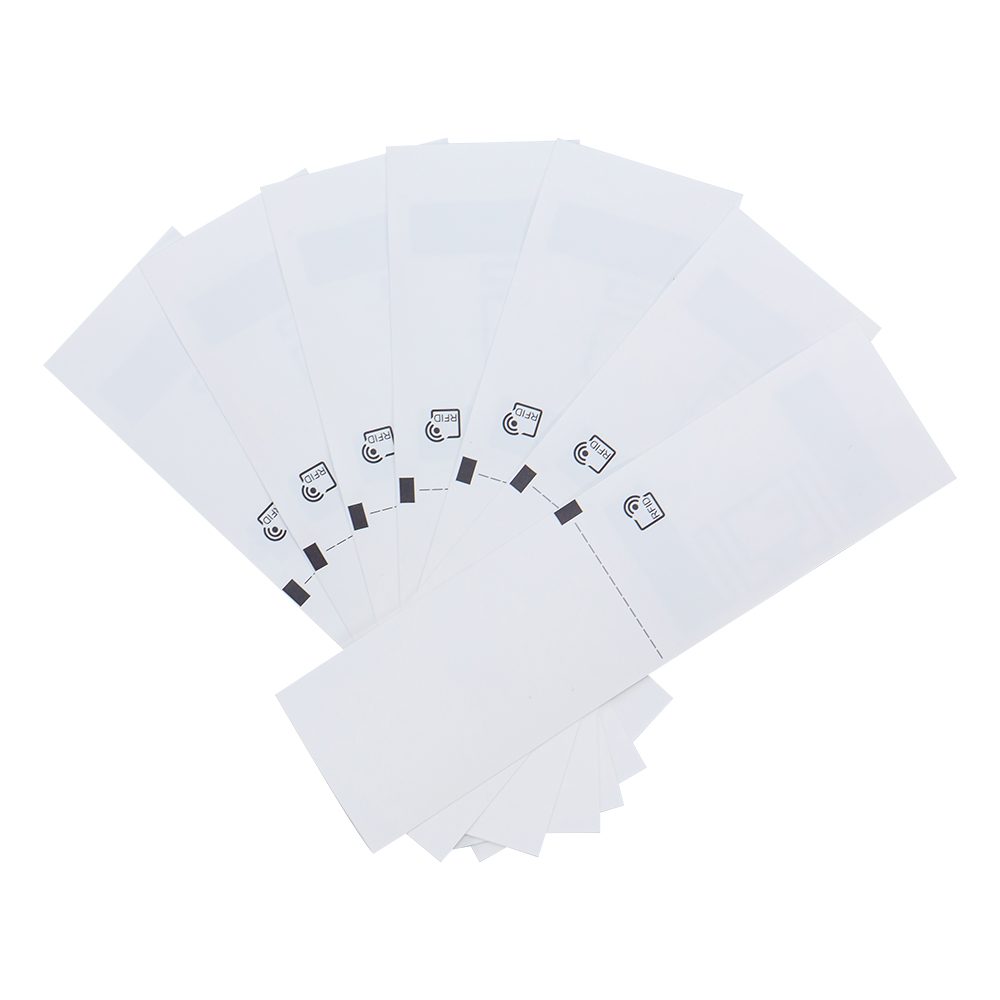

Apparel UHF RFID textile tag · 136×38 mm · NXP UCODE 9 (RT-T101)
A 136×38 mm nylon RFID textile label with NXP UCODE 9 and a 50×30 mm antenna. Confirm the attachment, printing and encoding requirements for your apparel workflow.
At a glance
- RFID Chip
- NXP UCODE 9
- Label Size
- 136mm*38mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory
- Face Material
- Nylon
- Product
- UHF RFID Textile / Clothing Label for Apparel & Footwear
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product | UHF RFID Textile / Clothing Label for Apparel & Footwear |
|---|---|
| RFID Chip | NXP UCODE 9 |
| Label Size | 136mm*38mm |
| Antenna Size | 50mm*30mm |
| Face Material | Nylon |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory |
| Applications | Apparel/Clothing &Footware management |
| Key Benefits | Labels are lightweight, soft and can be sewn. Fast&Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel/Clothing &Footwear management
- Key Benefits
- Labels are lightweight, soft and can be sewn. Fast&Multi-reading, Traceability
Overview
| Product： | UHF RFID Textile / Clothing Label for Apparel & Footwear |
|---|---|
| RFID Chip: | NXP UCODE 9 |
| Label Size： | 136mm*38mm |
| Antenna Size： | 50mm*30mm |
| Face Material: | Nylon |
| Protocol： | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory： | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory |
| Applications: | Apparel/Clothing &Footware management |
| Key Benefits: | Labels are lightweight, soft and can be sewn. Fast&Multi-reading, Traceability |
Customized services Details
| Customizable Label Size: | Yes |
|---|---|
| Printing: | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization: | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity： | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity： | 20～30℃ / 20%～60% RH |
| Shelf Life： | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity： | 2 kV (HBM) |
| Bending Diameter： | ＞ 50mm |
| Other application environment requirements: | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
Previous: Woven UHF RFID textile tag · 80×30 mm · Alien Higgs 9 (RT-T104)
Next: Satin Ribbon UHF RFID textile tag · 60×30 mm · NXP UCODE 9 (RT-T103)
Chip memory reference: NXP UCODE 9 specification.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
