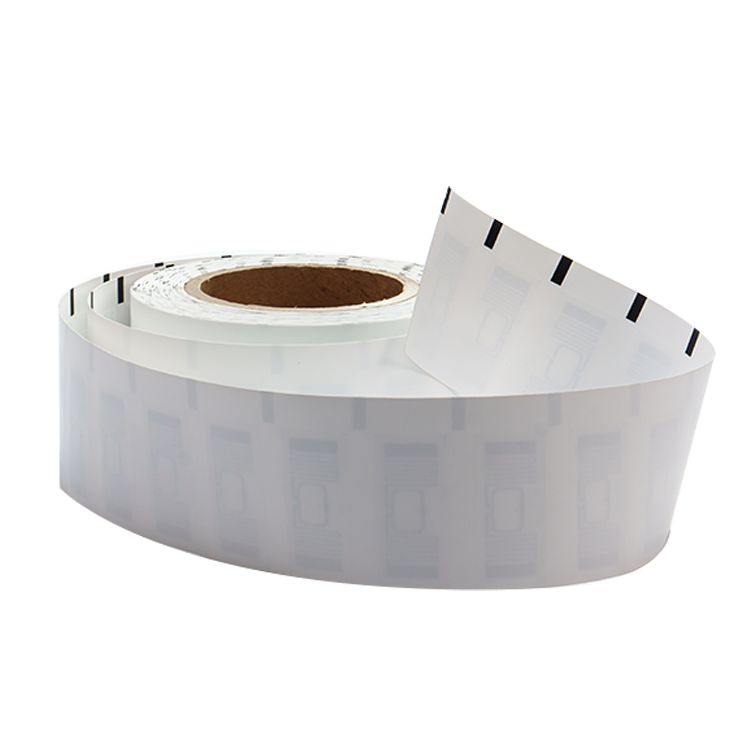

Nylon UHF RFID textile tag · 60×30 mm · NXP UCODE 9 (RT-T102)
A soft nylon UHF textile label measuring 60x30 mm, made to be sewn into garments, footwear and home textiles rather than stuck on. Supplied on rolls for easy converting, it carries an NXP UCODE 9 chip with 96-bit EPC over ISO/IEC 18000-6C and a 42x16 mm antenna for reliable rack-level reads.
At a glance
- RFID Chip
- NXP UCODE 9
- Label Size
- 60mm*30mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory
- Face Material
- Nylon
- Product
- UHF RFID Textile Labels w/ Nylon 60*30mm
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product | UHF RFID Textile Labels w/ Nylon 60*30mm |
|---|---|
| RFID Chip | NXP UCODE 9 |
| Label Size | 60mm*30mm |
| Antenna Size | 42mm*16mm |
| Face Material | Nylon |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory |
| Applications | Apparel/Clothing &Footware management |
| Key Benefits | Labels are lightweight, soft and can be sewn. Fast&Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel/Clothing &Footwear management
- Key Benefits
- Labels are lightweight, soft and can be sewn. Fast&Multi-reading, Traceability
Adhesive labels and garments rarely get along: fabric flexes, glue lifts. This textile tag sidesteps the problem entirely — a 60x30 mm strip of woven nylon that stitches into a seam or care-label position and stays for the life of the garment. It is light, soft against skin and unobtrusive on the hanger.
Inside sits an NXP UCODE 9 chip on a 42x16 mm antenna, reading to ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2) with a 96-bit EPC and 96-bit factory-locked TID (includes a 48-bit unique serial number). That makes whole racks of tagged apparel or footwear countable in one sweep, from distribution centre to shopfloor. Operating conditions span 0 to 60 °C, comfortably covering warehouse and retail life.
Ordering & customization

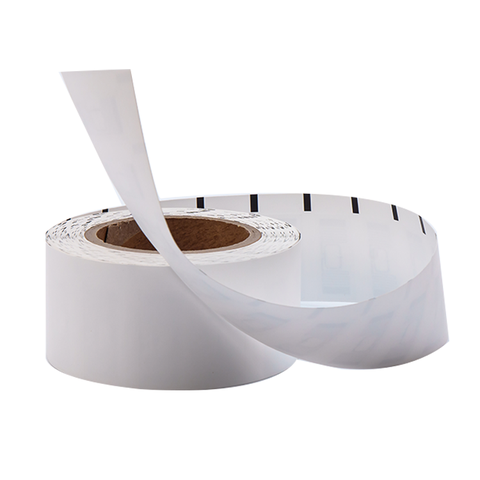

Supplied in roll form, the tag accepts thermal-transfer, silk-screen or other custom printing, and we encode EPC/TID data before dispatch when required. Free samples travel freight collect and leave in 3-5 working days; bulk orders complete 7-15 days after artwork approval on ISO 9001 partner lines. Size, chip and face construction are all adjustable, with quotes returned within 24 hours.
Chip memory reference: NXP UCODE 9 specification.
