Satin Ribbon UHF RFID textile tag · 60×30 mm · NXP UCODE 9 (RT-T103)
A sew-in UHF textile label on soft satin ribbon, cut at 60x30 mm for garment seams and care-label positions. Polyester ribbon stands up to acid, alkali, mold, heat and light while staying wrinkle-free and gentle on skin; the NXP UCODE 9 chip inside reads to ISO/IEC 18000-6C with a 96-bit EPC via a 42x16 mm antenna.
At a glance
- RFID Chip
- NXP UCODE 9
- Label Size
- 60mm*30mm
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory
- Face Material
- Silk ribbon
- Product
- UHF RFID Textile Labels w/ Silk Ribbon 60*30mm
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product | UHF RFID Textile Labels w/ Silk Ribbon 60*30mm |
|---|---|
| RFID Chip | NXP UCODE 9 |
| Label Size | 60mm*30mm |
| Antenna Size | 42mm*16mm |
| Face Material | Silk ribbon |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Memory | 96-bit factory-locked TID (includes a 48-bit unique serial number), 96 bits EPC, 0 bits User Memory |
| Applications | Apparel/Clothing management |
| Key Benefits | Labels are lightweight, soft and can be sewn. Fast&Multi-reading, Traceability |
Customized services Details
| Customizable Label Size | Yes |
|---|---|
| Printing | Thermal transfer printing，Silk Screen Printing，and other custom printing. |
| Data initialization | Encoding |
Storage Environment Requirements
| Operating Temperature/Humidity | -0～60℃ / 20%～80% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. |
- Applications
- Apparel/Clothing management
- Key Benefits
- Labels are lightweight, soft and can be sewn. Fast&Multi-reading, Traceability
Some apparel programs want RFID stitched in, not stuck on. This 60x30 mm textile tag rides on satin ribbon — the same soft polyester band used for care labels — so it sews into a seam and vanishes into the garment’s construction. The ribbon resists acid, alkali, mold, heat and light, springs back without wrinkling, and feels like nothing against skin.

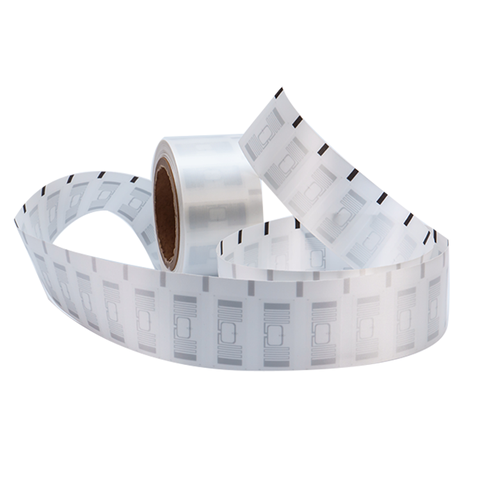

Inside runs an NXP UCODE 9 chip on a 42x16 mm antenna: ISO/IEC 18000-6C (EPCglobal Class 1 Gen 2), a 96-bit EPC and 96-bit factory-locked TID (includes a 48-bit unique serial number), with the multi-read behaviour that turns rack counts into a walk-past. Rolls can be supplied with perforation lines or black marks for easy converting, and the ribbon surface takes printed barcodes, text and logos.
Ordering & customization
Rivotag sources these ribbon labels in custom widths and lengths, with chip, printing and EPC encoding and TID capture matched to your spec. Free samples ship freight collect within 3-5 working days; production completes 7-15 days after artwork approval on ISO 9001 partner lines, and quotes arrive within 24 hours.
Chip memory reference: NXP UCODE 9 specification.
