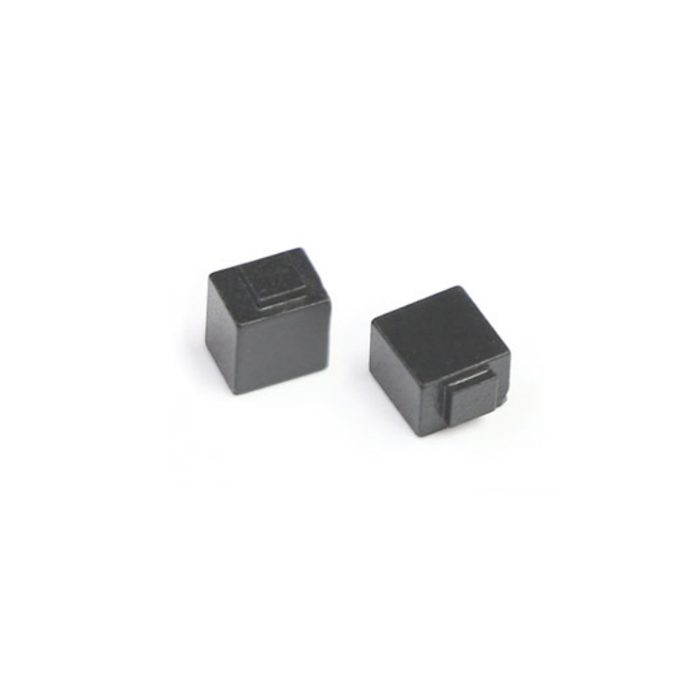

Asset UHF ceramic RFID tag · Alien Higgs 3 (RT-C101)
One of the smallest on-metal formats we supply: a 4×4 mm ceramic tag just 3 mm thick and 0.3 g, made to identify tools, instruments and compact metal assets. The Alien Higgs 3 chip stores a 96-bit EPC plus 512-bit user memory, reads up to 0.8 m on metal with a fixed reader, and the IP68 body operates from -40 to 85 °C.
At a glance
- Memory
- EPC 96bits,USER 512bits,TID64bits
- RFID Protocol
- EPC Class1 Gen2,IS018000-6C
- Frequency
- US 902-928MHz,EU 865-868MHz
- IC type
- Alien Higgs-3
- Write Cycles
- 100,000times
- Functionality
- Read/write
Quote reply within 24 hours
Free samples — freight collect
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| RFID Protocol | EPC Class1 Gen2,IS018000-6C |
|---|---|
| Frequency | US 902-928MHz,EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits,USER 512bits,TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal): (Fix Reader) | Up to 0.8m,on metal |
| Read Range(On Metal): (Handheld Reader) | Up to 0.4m,on metal |
| Warranty | 1 Year |
Overview
| Size | 4.0x4.0mm |
|---|---|
| Thickness | 3.0mm |
| Material | Ceramic |
| Colour | Black |
| Mounting Methods | Adhesive |
| Weight | 0.3g |
| IP Rating | IP68 |
| Storage Temperature | -40C to+150℃ |
| operation Temperature | -40℃ to +85℃ |
| Certifications | Reach Approved,RoHS Approved,CE Approved |

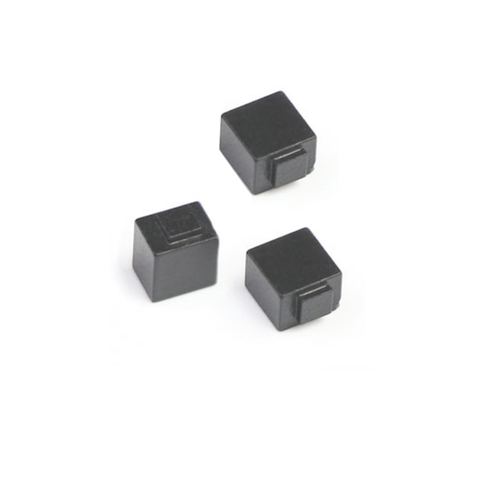

Four millimeters square and three thick — this ceramic tag disappears onto surfaces where even small labels are too large. Ceramic construction is what makes the size workable on metal: the sintered body isolates the antenna from the surface beneath, so the tag reads dependably where ordinary inlays fail outright.
An Alien Higgs 3 chip supplies a 96-bit EPC, 64-bit TID and a generous 512-bit user bank, rewritable up to 100,000 times with data retention rated to 50 years. Read range on metal reaches 0.8 meters with a fixed reader (0.4 m handheld) across US 902–928 MHz and EU 865–868 MHz plans. The black IP68 package weighs 0.3 g, mounts with adhesive, operates from -40 to 85 °C, and carries REACH, RoHS and CE approvals along with a one-year warranty.
Ordering and customization
We source this tag through ISO 9001 partner lines and can align encoding and specification details with your asset register. Quotes are returned within 24 hours, and free samples (freight collect) dispatch in 3–5 working days, with mass production 7–15 days after approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
Can I get samples before ordering?
What is the production lead time?
Are you the manufacturer?
Can you customize size, chip, printing and encoding?
How is quality controlled?
