RT-M104
Asset UHF flexible on-metal RFID label · 70×25 mm
- Chip
- NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more.
- Size
- 70mm*25mm*1.26mm
RT-M103
Validate this construction on your material with samples before a volume order.

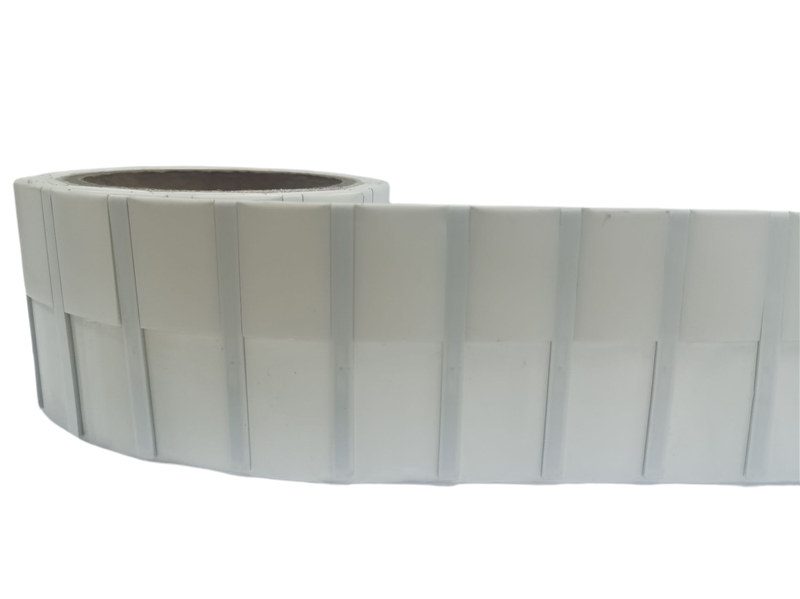

Asset UHF flexible on-metal RFID label · 60×25 mm (RT-M103)
Asset UHF flexible on-metal RFID label, 60×25 mm format. Confirm the selected chip, encoding and application requirements against the detailed specification before ordering. Chip availability and memory depend on the approved configuration.
At a glance
- RFID Chip
- NXP Ucode8, Moza M730, Moza M750 Impinj R6 and more.
- Tag Size
- 60*25mm
- Operating Frequency
- 860~960MHz
- Protocol
- ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
- Memory
- Chip dependent; confirm EPC, TID and user memory for the selected option
- Face Material
- White PET
Quote reply within 24 hours
Free samples — freight collect
Pricing matched to your project.
Share your quantity, surface, printing and encoding requirements. We’ll confirm the configuration, volume pricing and sample availability.
Supplied by Rivotag through partner production lines.Technical information
Full specifications
Catalogue values describe this construction. Confirm any changes to chip, size, material, printing or encoding in your quotation.
Overview
| Product | Anti Metal 6505 |
|---|---|
| RFID Chip | NXP Ucode8, Moza M730, Moza M750 Impinj R6 and more. |
| Tag Size | 60*25mm |
| Application | Enterprise Asset Management |
| Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency | 860~960MHz |
| Memory | Chip dependent; confirm EPC, TID and user memory for the selected option |
| Application overview | Enterprise Asset Management |
| Range of Application | Asset Management, Logistics Management, Medical management |
Product Details
| Product Type | RFID Anti Metal Tag |
|---|---|
| Chip Material | Silicon Wafer |
| Face Material | White PET |
| UHF Antenna | AL+PET |
| MOQ | 1,000 Pcs |
| Samples | 15 Pcs for free samples |
| Printing | Thermal transfer printing |
Packing Details
| Packing specification | Esd bag vacuum packing (Other Custom Packing specification) |
|---|---|
| Quantity For Per Roll | 500 pcs/roll |
| carton size | 445*445*345mm |
| Unwinding Direction | Label face out |
| Core Inner Diameter | 3 inches |
Storage Environment Requirements
| Operating Temperature/Humidity | -40°C to + 85°C / 20%～60% RH |
|---|---|
| Storage Temperature/Humidity | 20～30℃ / 20%～60% RH |
| Shelf Life | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity | 2 kV (HBM) |
| Bending Diameter | ＞ 50mm |
| Other application environment requirements | Dear customers, our product team can design unique products for you according to your special application environment. The temperature, humidity and the surface material of pasted object will affect the performance of the label. Please tell your customer service the special application scenarios. Our professional team will provide you with product customization services. |
Custom Service
| Custom Chip | NXP Ucode8, Moza M730, Moza M750 and more. |
|---|---|
| Custom Size | 65*35mm, 100*40mm, 65*5mm, 70*25mm and more. |
IT audits slow to a crawl when every server, cabinet and metal case has to be checked by eye. Rivotag supplies this 60×25 mm flexible anti-metal label so enterprise asset teams can scan instead: the absorbing layer beneath the antenna keeps EPC Gen 2 (ISO 18000-6C) reads reliable directly on metal equipment, containers and spare parts.
Labels are soft enough for curved housings, print through standard thermal-transfer printers, and pass one hundred percent consistency testing before dispatch. Chip options include NXP Ucode8, M730, M750 and Impinj R6, each rewritable up to 100,000 times — handy when assets change hands. Coverage spans the 866–868 and 902–928 MHz bands, service temperature runs -40 to +85 °C, and rolls hold 500 pieces on 3-inch cores.
Ordering and customization
Choose from 65×35, 100×40, 65×5 or 70×25 mm alternates, or brief us for a custom size, face material, printing layout or EPC/TID encoding plan. Quotes return within 24 hours; free samples ship freight collect in 3–5 working days; ISO 9001 partner lines complete mass production 7–15 days after artwork approval.
Ordering this product
Sampling, quotations and supply through Rivotag.
How fast will I get a quotation?
We reply to every enquiry within 24 hours with a specific recommendation — chip, antenna, face material and adhesive — plus tiered unit pricing for the quantities you request.
Can I get samples before ordering?
Yes. Samples are free of charge (freight collect) and dispatched within 3–5 working days, so you can verify read performance on your own material before committing to production.
What is the production lead time?
Mass production typically ships in 7–15 days after artwork approval. Our partner factories run 30+ production lines with a combined capacity of about 1.5 billion tags per year.
Are you the manufacturer?
We are an independent supplier, not the factory. Production runs on audited partner lines in China that hold ISO 9001 certification and ARC-certified standard designs; we handle engineering review, sampling, QC and logistics, and remain your single accountable contact.
Can you customize size, chip, printing and encoding?
Yes — size, chip (Impinj, NXP, Alien and more), face material, adhesive, printing and EPC/TID encoding are all customizable. A custom antenna design typically takes 3 working days.
How is quality controlled?
Partner lines run CCD vision inspection on every roll, Voyantic RFID performance testing, and 100% read verification after encoding, under an ISO 9001 quality system. We release shipment only after QC data is confirmed.
Compare related products
Browse the catalogue →RT-M102
UHF flexible on-metal RFID label · 70×25 mm
- Chip
- NXP Ucode8, NXP Ucode9, Moza M730, Moza M750 and more.
- Size
- 70mm*25mm*1.26mm
Request a quote
Quote this product for your application.
Tell us your quantity, mounting surface, size limits and read-range target. We’ll confirm a suitable configuration and pricing. Request samples here to test the tag in your own workflow.
- Quote reply within 24 hours
- Free samples — freight collect
- Samples dispatched in 3–5 working days
- Mass production in 7–15 days after artwork approval
Prefer email? peter@proudtek.com
